Strautmann Verti Mix Double K - Dimensions of Trailer

Product description

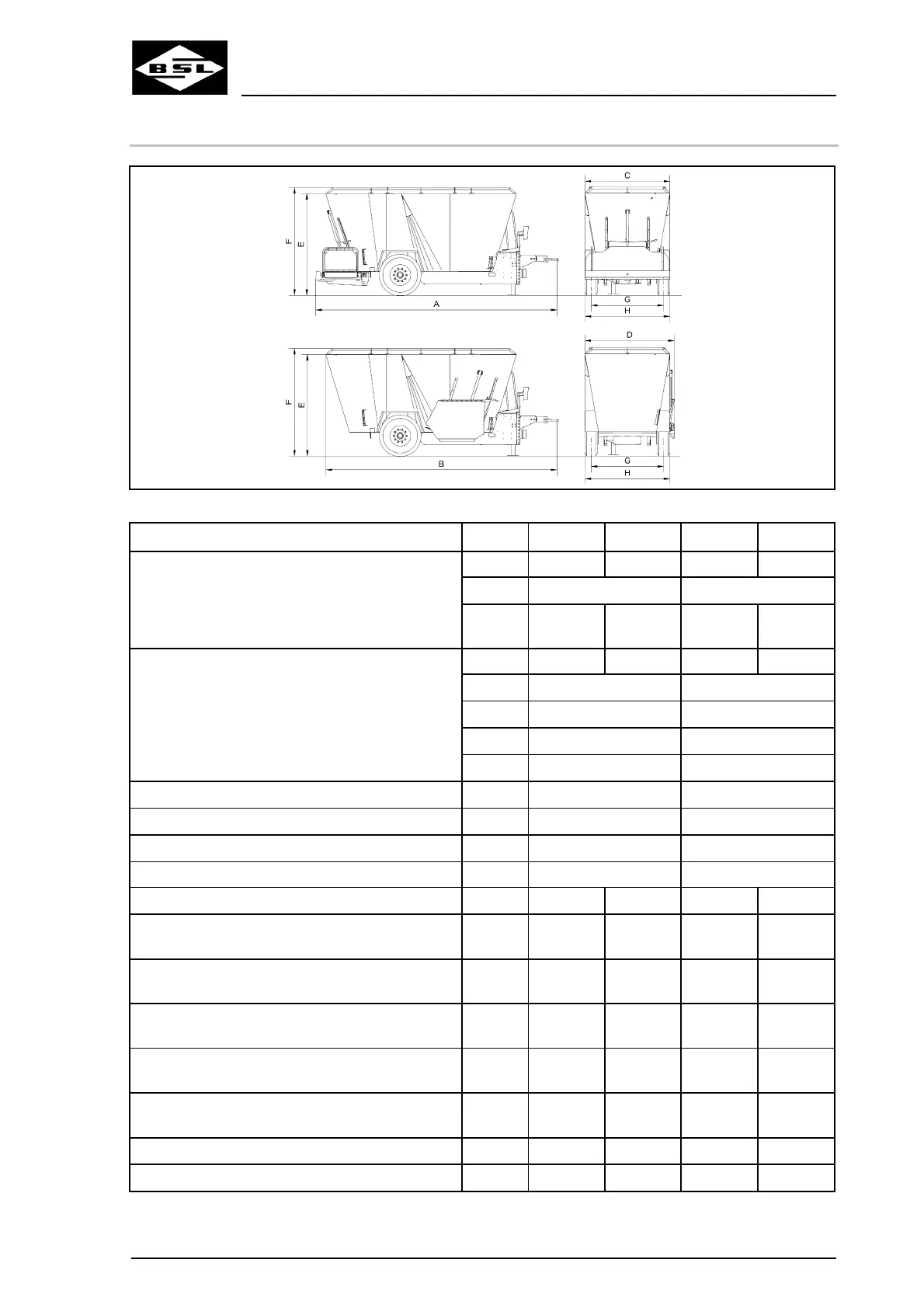

2.8.2 Dimensions of trailer
Fig. 9
Model Unit 1300 DK 1500 DK 1800 DK 2100 DK
Length:
• A = length with rear crossover conveyor
m 5.97 6.41
• B = length with side discharge / without
crossover conveyor
m
5.80 5.87 6.28 6.38
Width:
• C = with rear crossover conveyor
m 2.16 2.42
• D = with right or left side discharge
m 2.26 / 2.28 2.52 / 2.54
• D = with side discharge on both sides
m 2.38 2.64
• H = outside wheel width incl. tyres:
ο 315/80 - 22.5
m 2.17
ο 385/65 – 22.5 remoulded
m 2.45
ο 425/65 - 22.5 remoulded
m 2.48
Height incl. tyres:
• E = equipped with 315/80 – 22.5
m 2.37 2.59
• F = equipped with 315/80 – 22.5 +
overflow ring
m 2.51 2.73
• E = equipped with 385/65 – 22.5
remoulded
m 2.61 2.86
• F = equipped with 385/65 – 22.5
remoulded + overflow ring
m
2.76 3.01
• E = equipped with 425/65 – 22.5
remoulded
m 2.63 2.88
• F = equipped with 425/65 – 22.5
remoulded + overflow ring
m
2.78 3.03
• G = track, single axle
m 1.85 1.85 2.06 2.06
• Discharge height
m 0.61 0.61 0.61 0.61
ab. 2 T
Verti Mix Double K Edition
23
08.08
