Machine maintenance and care
11.8.2 Swivelling / Replacing of cutting knives
WARNING
ο 1 x hexagon wrench, size 10,
1
128
3
4
5. Replace the cutting knives or swivel the
cutting knives into the desired position
(aggressive or degressive), see information
on page 60.
6
7
8
There is a risk of injury from being cut during assembly work on
sharp cutting knives!
Always wear cut-resistant protective gloves when carrying out work
on the cutting knives.
For swivelling / replacing the cutting knives you require:
• different wrenches:
ο 1 x open end or ring wrench, wrench size 24,
ο 1 x hexagon wrench, size 6, for the top cutting knife with
knife supporting plate,
• a scraper or screw driver,
• a hard brush,
• cut-proof protective gloves,
• edge protector to cover the knife edges when carrying out
assembly work on the cutting knives.

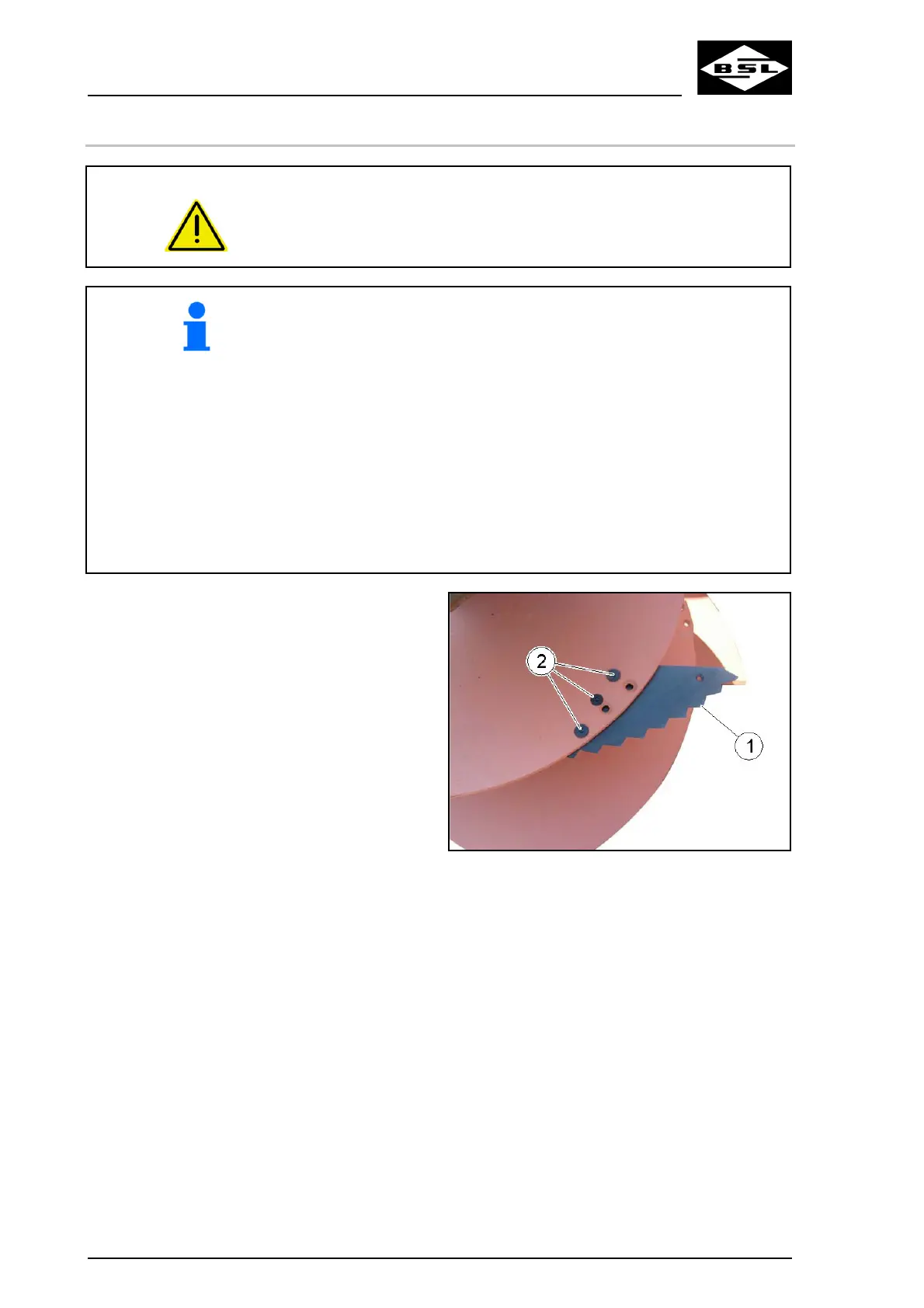

Fig. 93
. For replacing the cutting knives, enter the
empty mixing container through a discharge
opening. Absolutely observe the chapter
"Entering the mixing container", from page
.
2. Put on protective gloves.
. Use the edge protector to cover the knife
edge (1) of the respective cutting knife to be
mounted.
. Unscrew and remove the screws (2) (M16 x
45 or M10 x 20 - grade 8.8).
. Tighten all screws (2) of the cutting knives
screwed connections.
. Remove any foreign objects (tools etc.)
from the mixing container. Clean the mixing
container, if necessary.
. After completing work, leave the mixing
container through the discharge opening.
166
Verti Mix Double K Edition 08.08
