Machine maintenance and care
11.5.4 Flat-type cylindrical gearing for drive unit with on-board hydraulic system
without switchgear
In case of the flat-type cylindrical gearing:
• check the oil level and top up, if necessary,
• change the gear oil.
1
2
1
2
3
4
5. Wait until the oil has stopped draining off
the oil drain opening.
6
7
8
9
11.5.4.1 Check oil level
. The oil level must be visible at the
inspection glass (1) of the flat-type
cylindrical gearing (2).
. Top up oil through the filler opening (3), if
necessary.

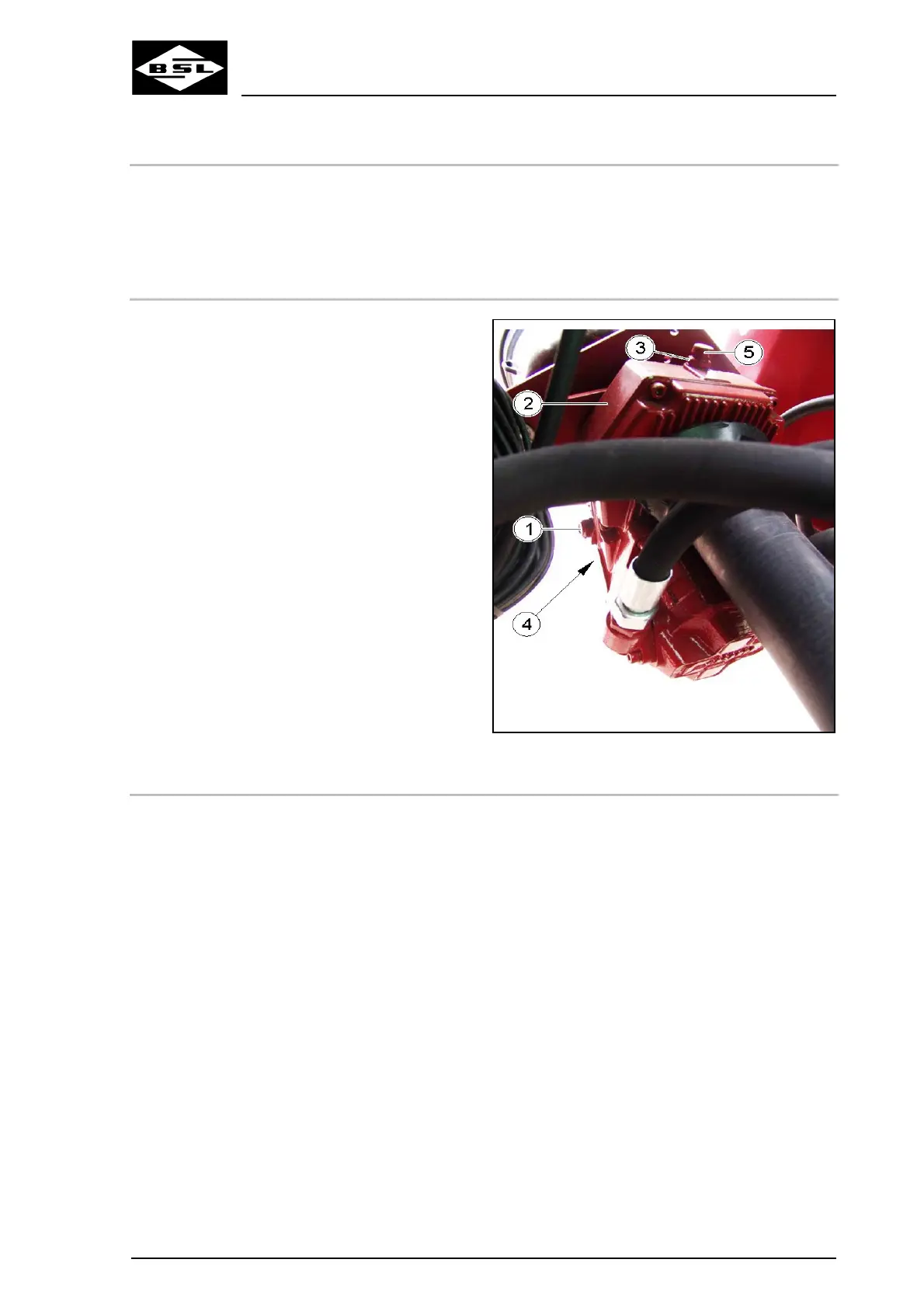

Fig. 86
11.5.4.2 Change gear oil
. Secure the machine against rolling away.
. Align the machine in horizontal position.
. Place a drip tray beneath the gearbox
(capacity approx. 2 litres).
. Unscrew oil drain plug (4) and ventilation
screw (5).
. Screw in again and tighten oil drain plug (4)
(use sealant).
. Top up 0.75 litres of oil through the filler
opening (3), until the oil level becomes
visible at the inspection glass (1).
. Clean and screw in ventilation screw (5).
. Check the oil level after 5 service hours.
