Strautmann Verti Mix Double K - Coupling; Uncoupling

Structure and Functions
5.11.2.1 Coupling
• Only couple clean hydraulic couplings.
• If necessary clean the hydraulic sleeve and the hydraulic plug.
• Slip the hydraulic sleeve on the hydraulic plug until the hydraulic
sleeve noticeably locks.
• Check the coupling spot of the hydraulic brake line for correct
and tight seat.
• The coupled hydraulic brake line:
ο must easily follow every movement when cornering without
tension, bending or friction,
ο must not chafe against external parts.
• Check the hydraulic service brake system for proper functioning
before carrying out transport drives.

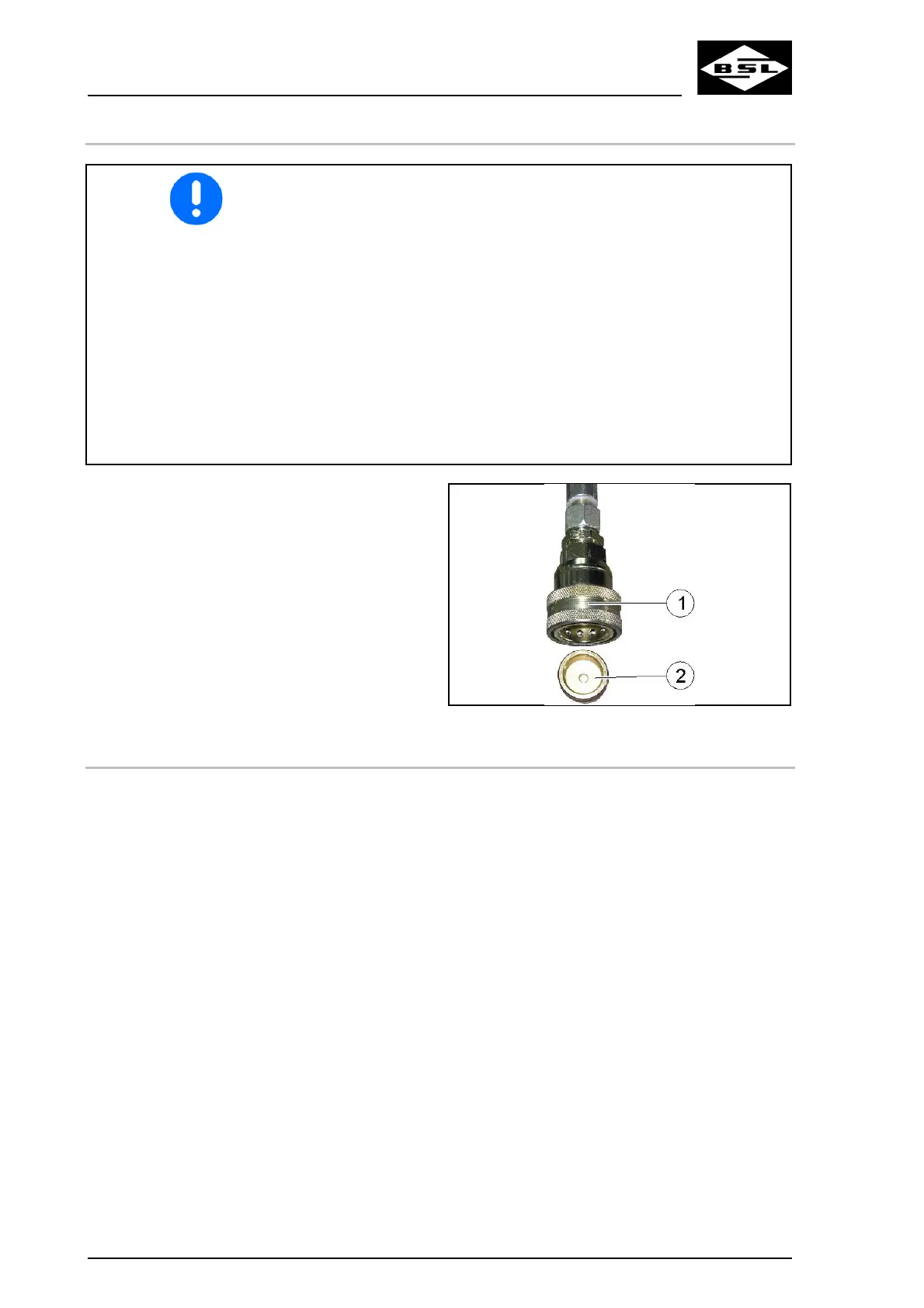

1. Remove hydraulic sleeve (1) from the
machine’s blanked-off connecting piece (2).
2. Connect the machine’s hydraulic sleeve
with the tractor’s hydraulic plug of the
hydraulic brake system.
3. Release on the machine parking brake.
Fig. 67
5.11.2.2 Uncoupling
1. Pull on the machine parking brake.
2. Uncouple the hydraulic sleeve (1).
3. Slip the hydraulic sleeve on the machine’s
blanked-off connecting piece (2).
112
Verti Mix Double K Edition 08.08
