Structure and Functions
5.7 Drawbar
The machine is equipped with a vertically adjustable drawbar for:
• Top hitching with flanged hitch ring 40 mm (6 km/h),
• Top linkage with flanged hitch ring 40 mm according to DIN
74054-1/2 / ISO 8755,
• Bottom linkage with flanged hitch ring 50 mm (6 km/h),
• Bottom linkage with flanged hitch ring 50 mm according to DIN
74053-1 / ISO 1102.

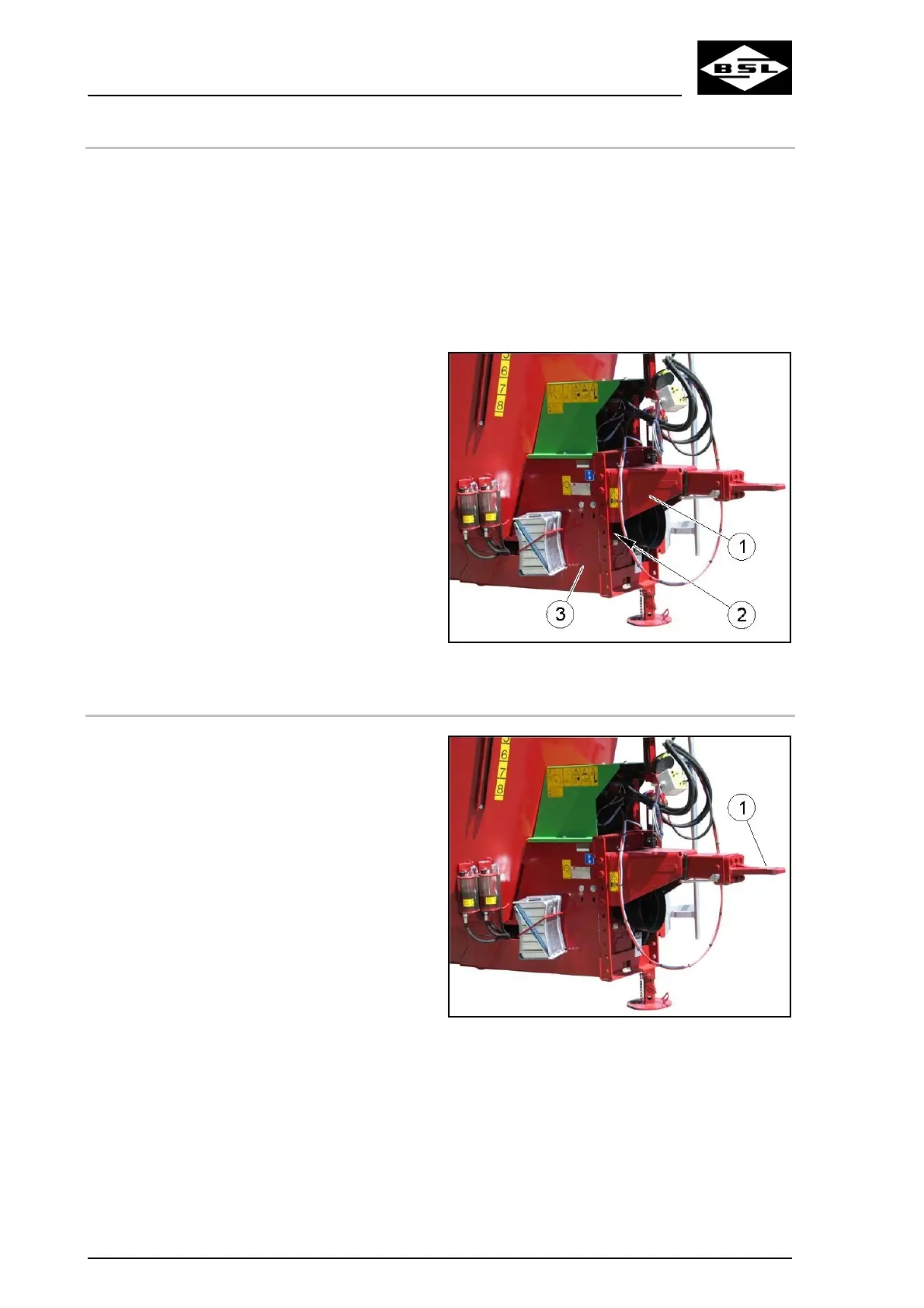

Within the adjustable range of the positioning
holes (2), the drawbar (1) can be screwed on at
different levels compared to the chassis (3)
(Fig. 50).
This allows optimum adjustment of the hitch ring
to the respective height of the coupling device of
the different tractors.
Fig. 50
5.7.1 Top hitching
The hitch ring (Fig. 51/1) is coupled by means of
an appropriate bolt-type coupling.
Fig. 51
94
Verti Mix Double K Edition 08.08
