Product description
2.1 Overview – Component Units

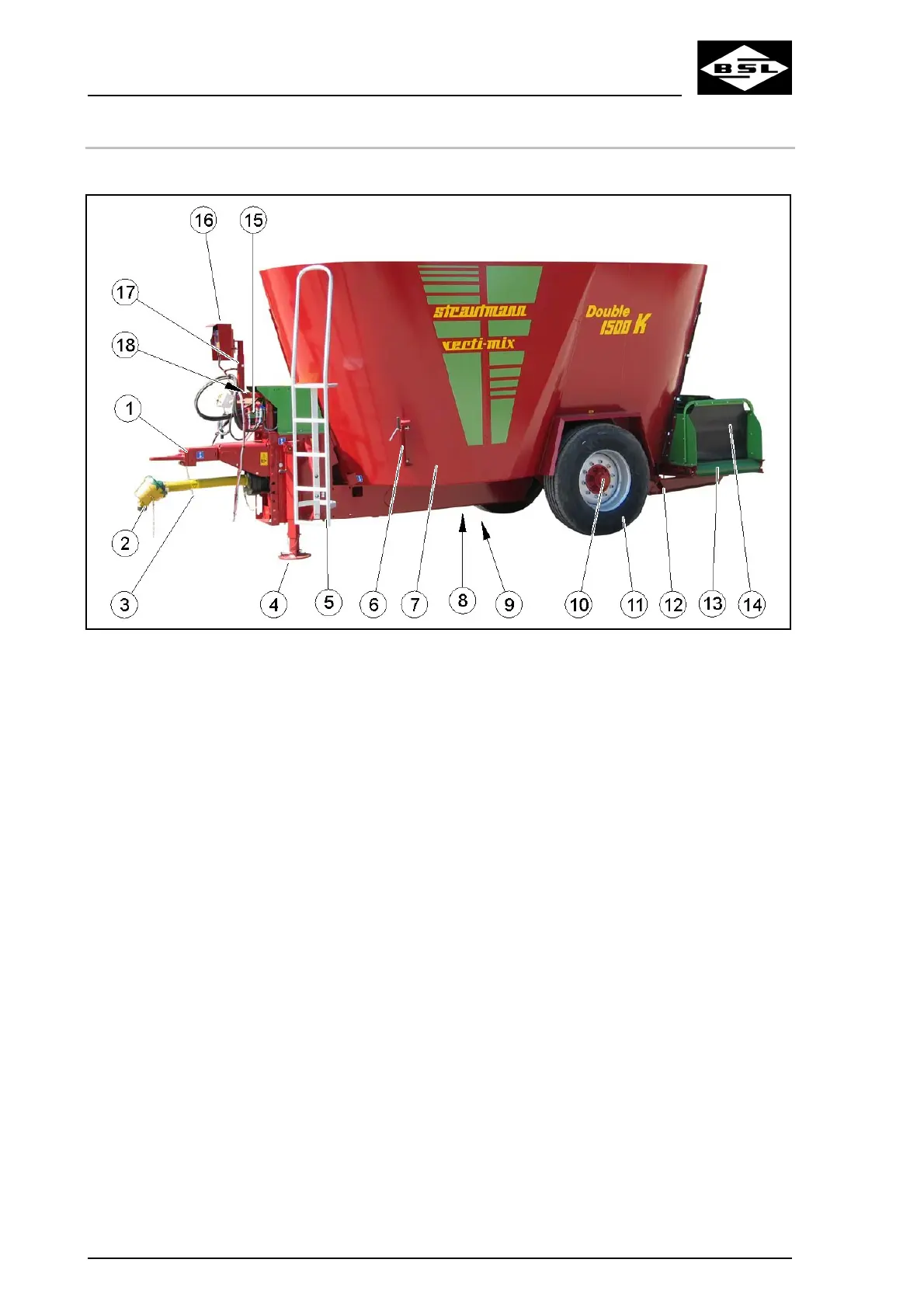

Depiction of product and description of the most important elements.
Fig. 1
(1) Drawbar
(2) PTO drive shaft
(3) Storage yoke for PTO drive shaft
(4) Support stand
(5) Ladder, platform
(6) Counter-cutter
(7) Mixing container
(8) Angular gearbox for mixing auger drive
(9) Shear pin safeguard
(10) Brake axle
(11) Wheels
(12) Parking brake
(13) Rear crossover conveyor (only in case of
available optional extra)
(14) Left rear protective device for crossover
conveyor
(15) Hose cupboard for supply lines
(16) Operating terminal of weighing device (only
in case of available optional extra)
(17) Tilting support for the weighing device
control terminal
(18) Electrohydraulic control block (only in case
of available optional extra)
