Safety instructions
3.6.2 Instructional signs
One instructional sign consists of one pictogram:
(1) Pictogram with Information on correct
machine handling.
The pictogram displays information as a
pictorial or descriptive representation or in a
tabular form.
Fig. 11

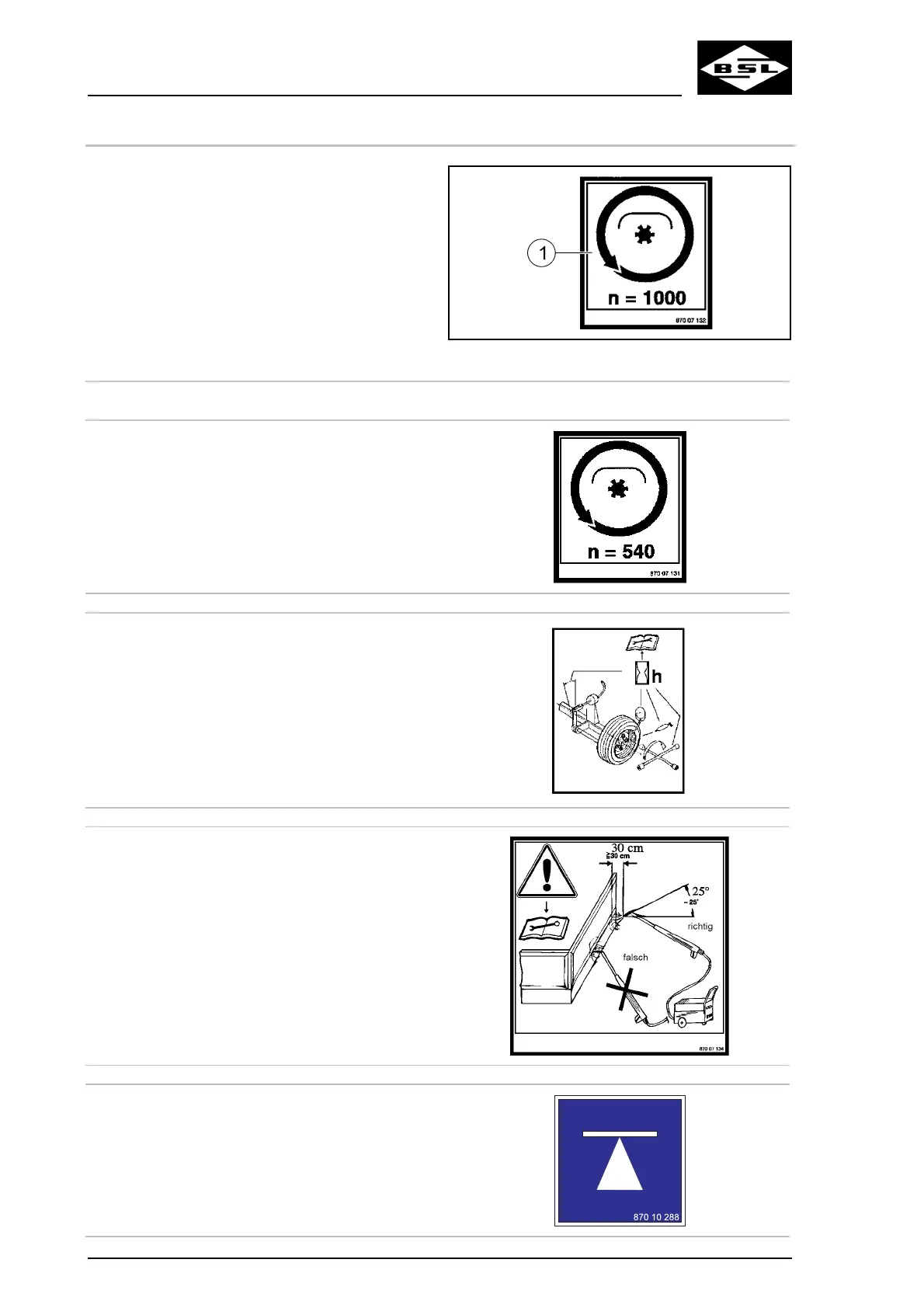

Order number and explanation Instructional signs
870 07 131
The required machine drive speed is 540 min
-
1
.
Before switching on the P.T.O. check that the
tractor P.T.O. speed and direction of rotation
selected corresponds to the admissible speed
and direction of rotation of the machine.
870 07 133
Consult the information in the operating manual
on the maintenance of brake axles.
870 07 134
Dangers arising from improper machine
cleaning.
It is essential to follow the advisory notes in the
chapter "Cleaning with high pressure cleaner or
steam jet“ on page 155, if you intend to use a
high-pressure cleaner / steam jet for the cleaning
of the machine.
870 10 288
This pictogram marks the positions where the
lifting equipment (jack) should be placed.
52
Verti Mix Double K Edition 08.08
