Strautmann Verti Mix Double K - Driving Mechanism with Switchgear

Structure and Functions
5.1.2 Driving mechanism with switchgear

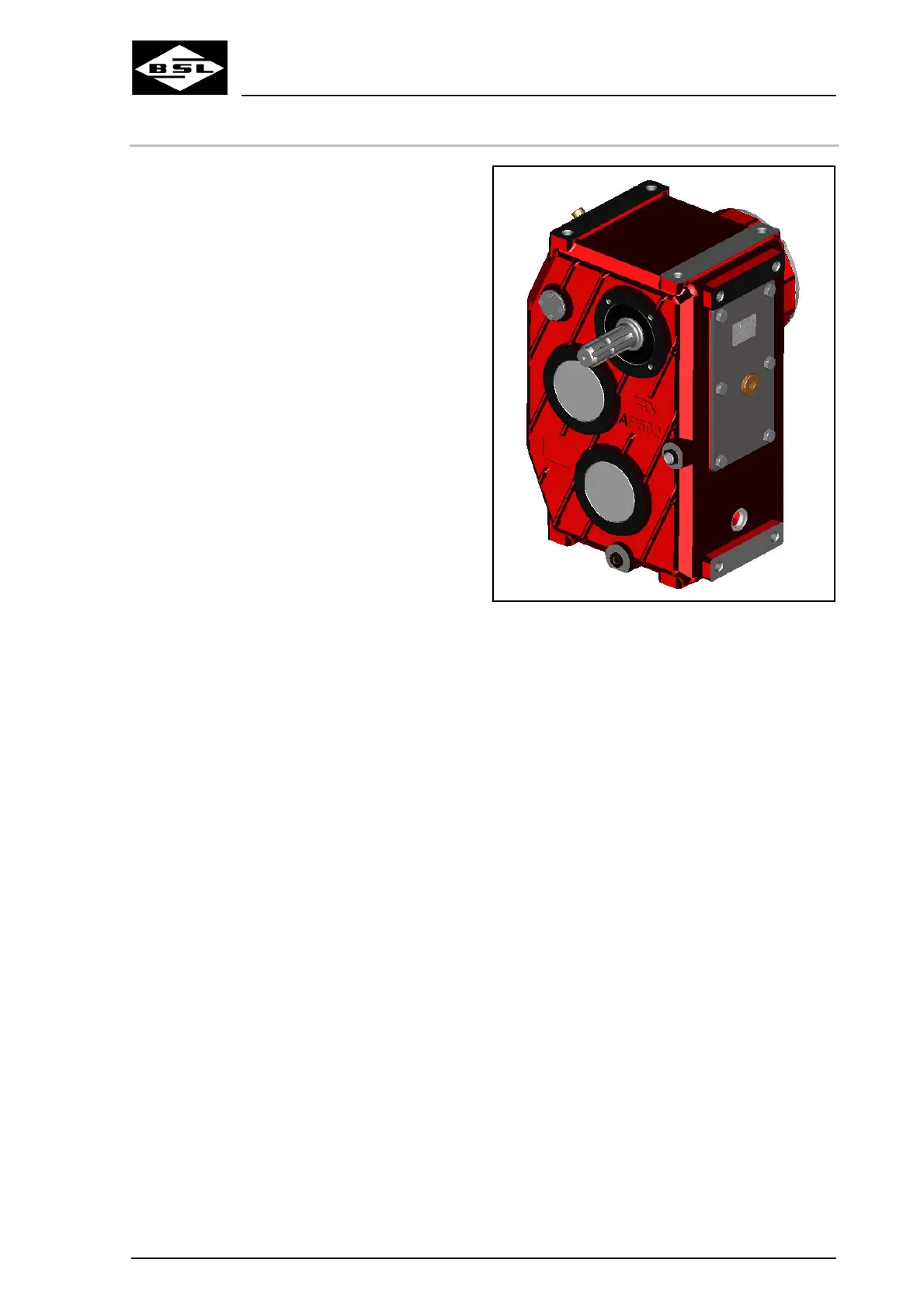

Fig. 17
Optional equipment:
If the power train of the mixing augers is
equipped with an additional two-gear switchgear
(Fig. 17), the mixing augers can be alternatively
powered at gear level I or II providing different
speeds.
Two-gear switchgears with the following gear
ratios are available:
• 1/1 and 1,5/1 (Verti-Mix Double K 1300 and
1500):
ο at gear level I, the output speed equals
the input speed,
ο at gear level II, the output speed is
reduced by 50 percent compared to
the input speed.
• 1/1,3 and 1,5/1 (Verti-Mix Double K 1300
and 1500):
ο at gear level I, the output speed is
increased by 30 percent compared to
the input speed,
ο at gear level II, the output speed is
reduced by 50 percent compared to
the input speed.
• 1/1 and 1,8/1 (Verti-Mix Double K 1800 and
2100):
ο at gear level I, the output speed equals
the input speed,
ο at gear level II, the output speed is
reduced by 80 percent compared to
the input speed.
The increased output speed (gear level I) is
used:
• for producing small mixtures,
• for evacuating residual quantities from the
mixing container.
The reduced output speed (gear level II) is used:
• for mixing with the mixing container
completely filled,
• when using a tractor with low driving power,
• when using a straw blower.
