Structure and Functions

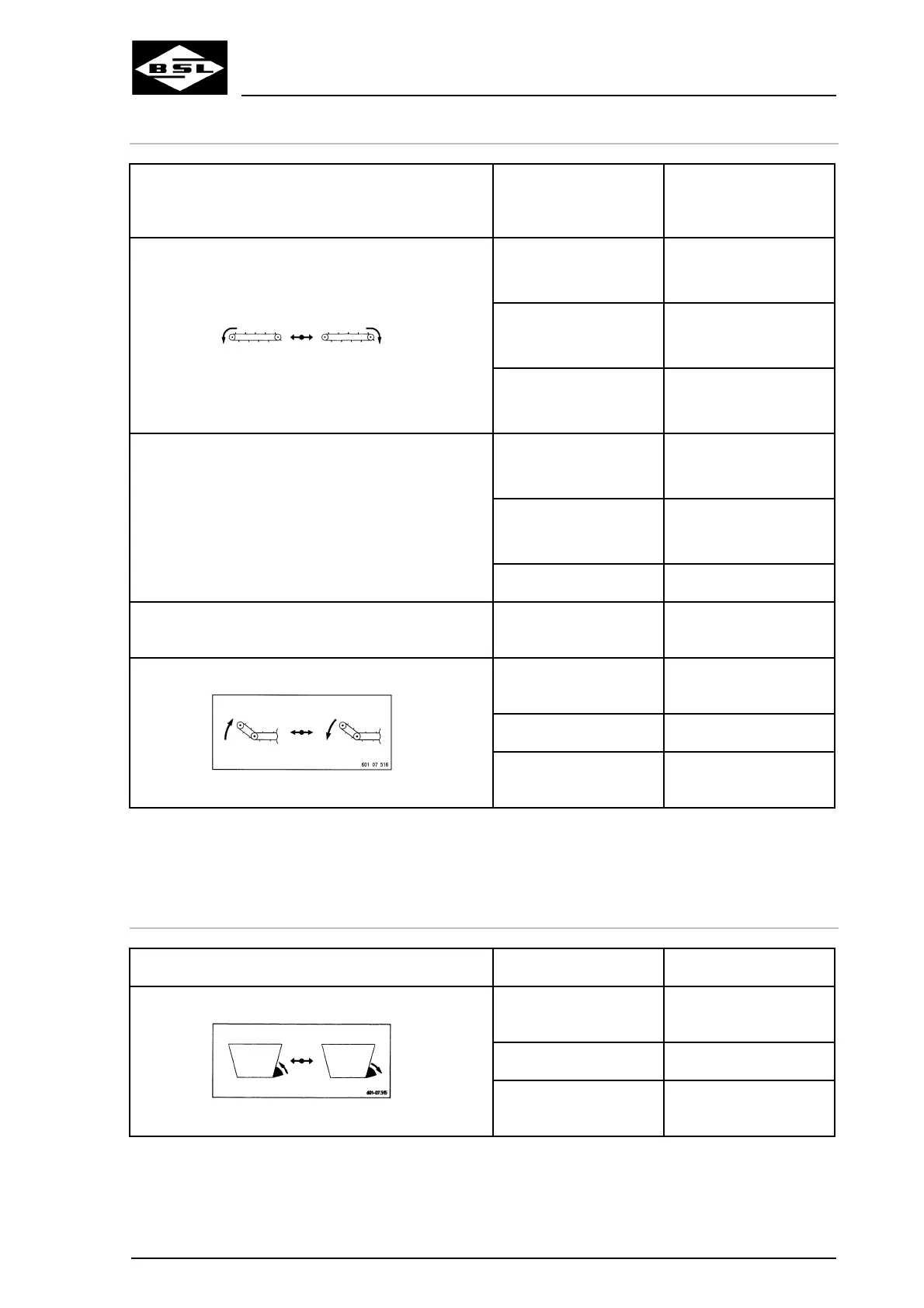

Switching of crossover conveyor / conveyor extension / discharge conveyor
Symbol
Position of hand lever
Crossover conveyor /
Conveyor extension /
Discharge conveyor
front
(latch-in design)
Cross conveyor *
ON to the left
Neutral position
Cross conveyor
Off
rear
(latch-in design)
Cross conveyor *
ON to the right
front
(latch-in design)
Discharge conveyor
On
Neutral position
Discharge conveyor
Off
Position of hand lever
Conveyor extension /
Discharge conveyor
front
(touch-control)
Swivelling up to
transport position
Neutral position
Action stops
rear
(touch-control)
Swivelling down to
working position
* At the same time, the conveyor extension is powered if a
conveyor extension is mounted in the conveying direction of the
crossover conveyor. If the material is conveyed away from the
conveyor extension, the conveyor extension will stop.
Extending and retracting of counter-cutters
Symbol Position of hand lever Counter-cutters
front
(touch-control)
Extending (in)
Neutral position
Action stops
rear
(touch-control)
Retracting (out)
