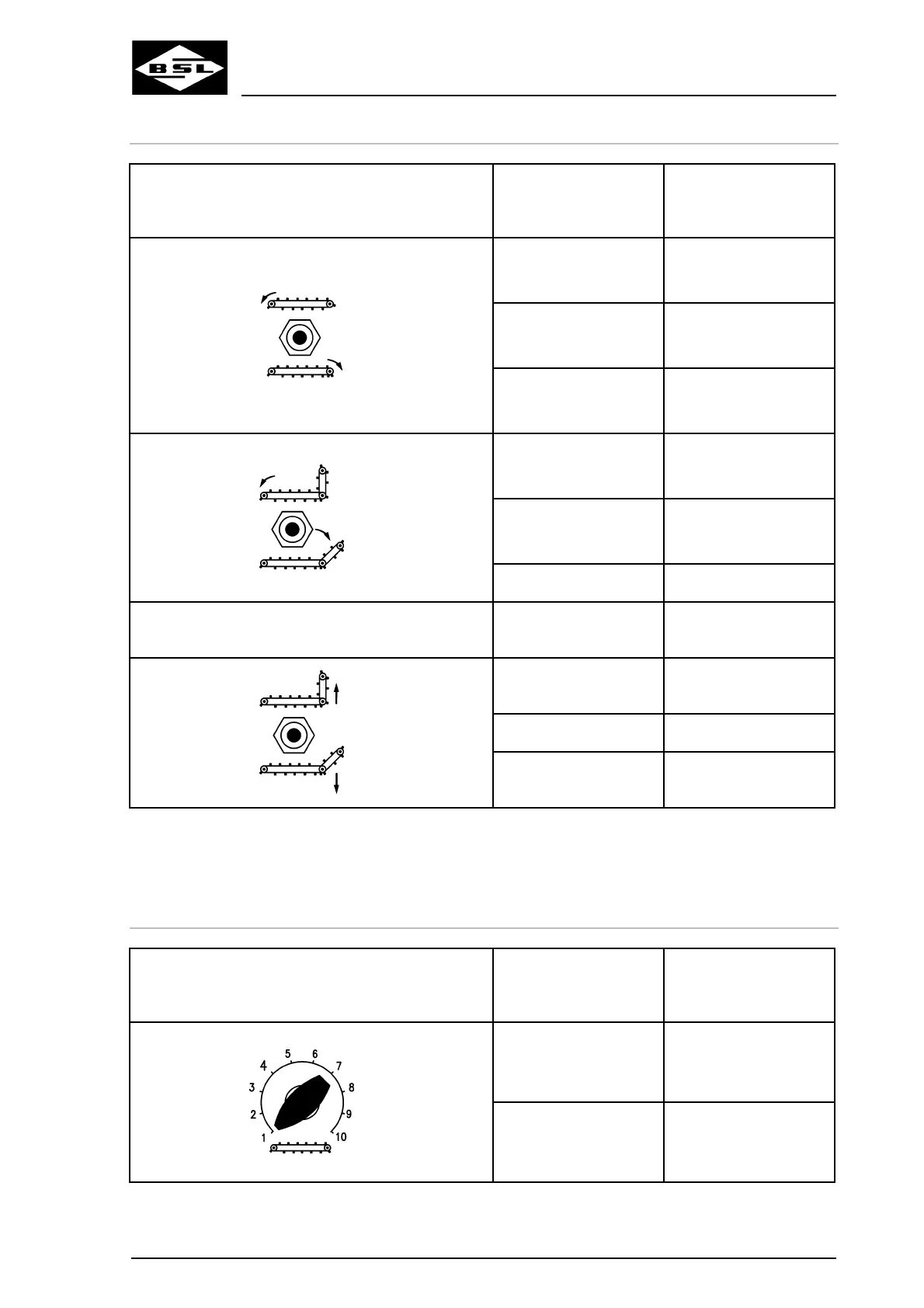

Structure and Functions
Switching of crossover conveyor / conveyor extension / discharge conveyor
Symbol
Position of toggle
switch
Crossover conveyor /
Conveyor extension /
Discharge conveyor
top
(latch-in design)
Crossover conveyor *
ON to the left
Neutral position
Crossover conveyor
Off
bottom
(latch-in design)
Crossover conveyor *
ON to the right
top
(latch-in design)
Discharge conveyor
On
Neutral position
Discharge conveyor
Off
Position of key button
Conveyor extension /
Discharge conveyor
top
(touch-control)
Swivelling up to
transport position
Neutral position
Action stops
bottom
(touch-control)
Swivelling down to
working position
* At the same time, the conveyor extension is powered if a
conveyor extension is mounted in the conveying direction of the
crossover conveyor. If the material is conveyed away from the
conveyor extension, the conveyor extension will stop.
Setting of conveyor speed for crossover conveyor / discharge conveyor
Symbol
Position of control dial
Conveyor speed and
other hydraulic
functions
1 Low
10 High
