3-64 Instruments and controls/Fog light switch
& Rear fog light switch (if
equipped)

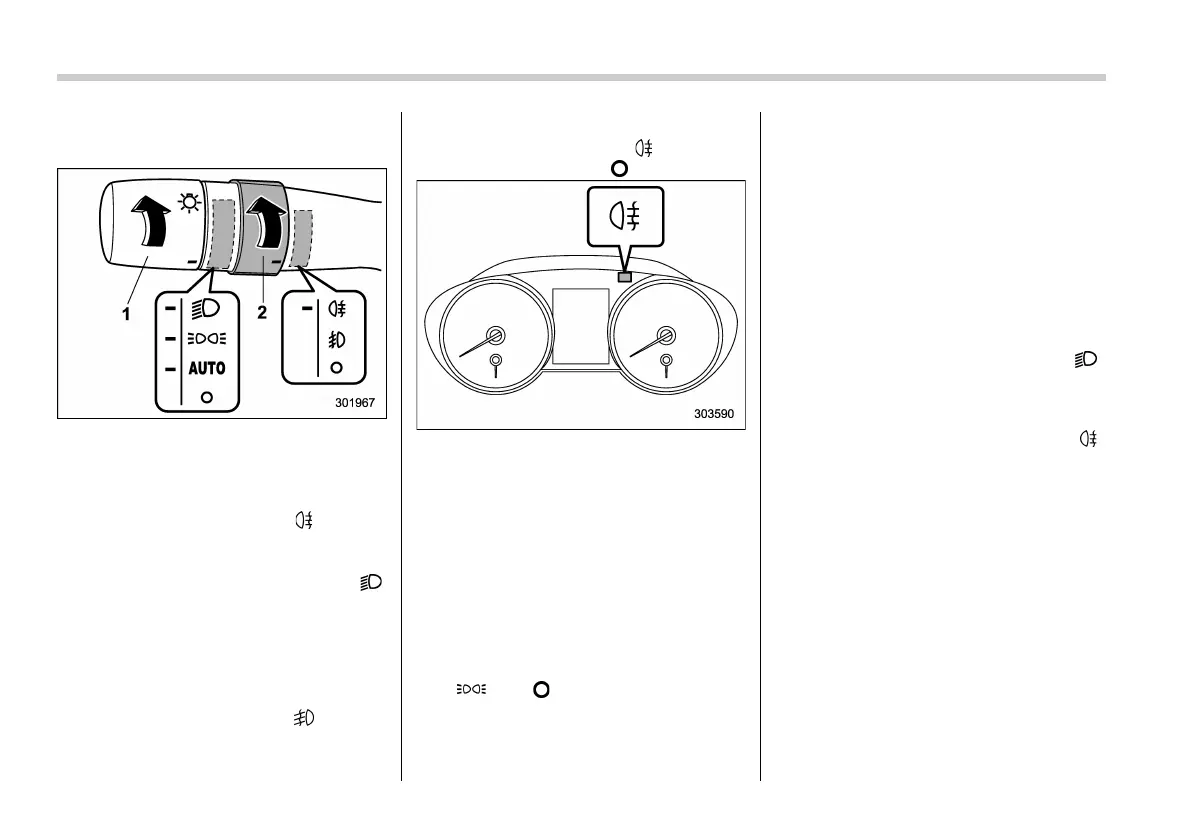

Rear fog light operating condition
1) Headlight switch
2) Fog light switch
The rear fog light will turn on when the fog
light switch is turned to the “
” position
while the headlights are in either of the
following conditions.
. while the headlight switch is in the “
”
position
. for models with the auto on/off head-
lights, while the headlight switch is in the
“AUTO” position and the headlights turn
on automatically
The switch will return to the “
” position
when released.
To turn off the rear fog light, either turn the
switch upward back to the “
” position or
turn it downward to the “
” position.
Indicator light
The indicator light on the combination
meter will illuminate when the rear fog
light is illuminated.
NOTE
To prevent switching off the rear fog
light from being forgotten, the rear fog
light circuit is designed so that it turns
off whenever one of the following
operations is performed.
. The headlight switch is set to either
the “
” or “ ” position.
. The headlight switch is set to the
“AUTO” position and the headlights
turn off (models with auto on/off head-
lights).
. The key is removed from the ignition
switch (models without the “keyless
access with push-button start sys-
tem”).
. The push-button ignition switch is
turned off (models with the “keyless
access with push-button start sys-
tem”).
However, this does not mean that the
rear fog light illuminates when the
headlight switch is set to the “
”
position or the ignition switch is turned
to the “ON” position again. So, if you
want to turn the rear fog light on again,
turn the fog light switch to the “
”
position.
