Subaru Outback 2016 - Fuse Panel Located in the Engine Compartment

Black plate (554,1)
一般Model "A2520GE-A" EDITED: 2015/ 10/ 22
12-16 Specifications/Fuses and circuits

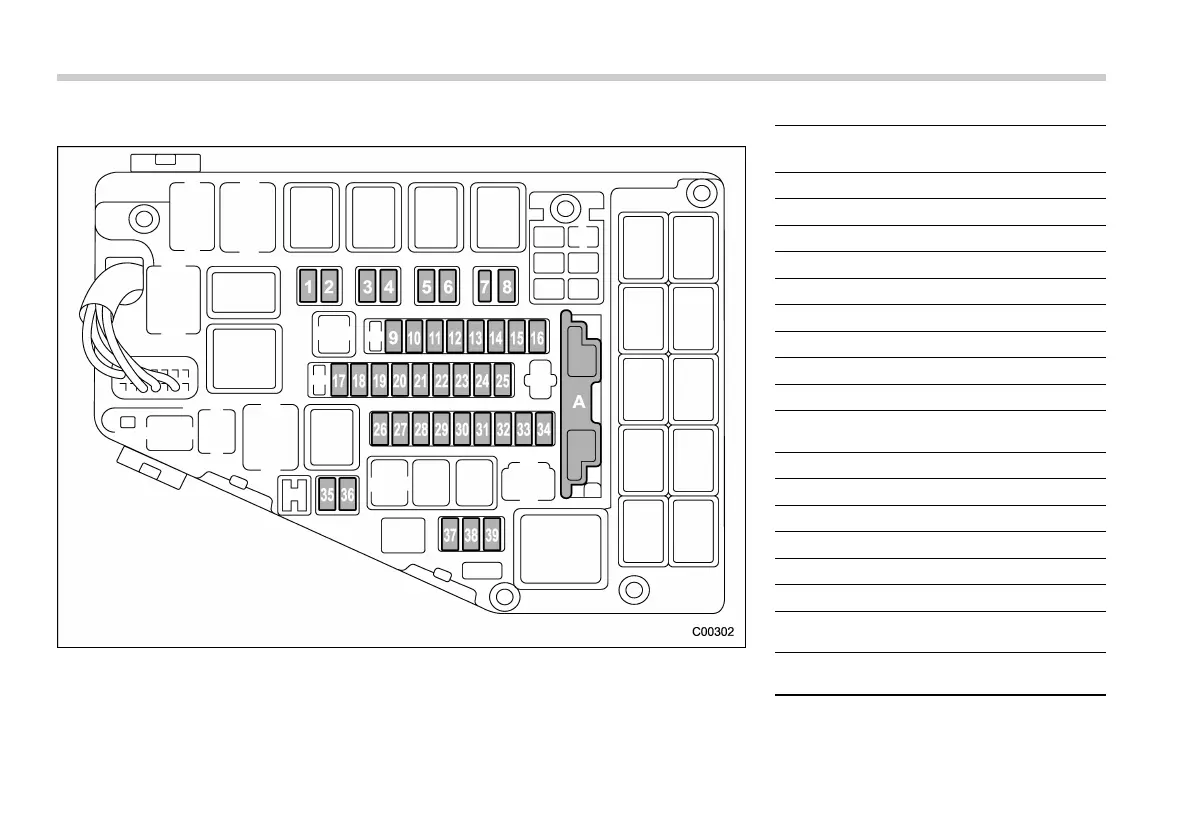

& Fuse panel located in the engine compartment
A) Main fuse
Fuse
panel
Fuse
rating
Circuit
1 7.5A HORN RH
2 7.5A
HORN LH
3 10A
ILLUMI
4 10A TAIL
5 15A H/L LO RH
6 15A H/L LO LH
7 10A H/L HI RH
8 10A H/L HI LH
9 15A D/L
10 10A Auto Start Stop (2.5 L
models)
11 7.5A ALT-S
12 20A FUEL
13 15A HAZARD
14 30A IG2
15 7.5A PU B/UP
16 7.5A OBD
17 20A VB3.4 (diesel engine mod-
els)
18 20A
*1
25A
*2
O2 HTR
*1: Except 3.6 L models
*2: 3.6 L models
