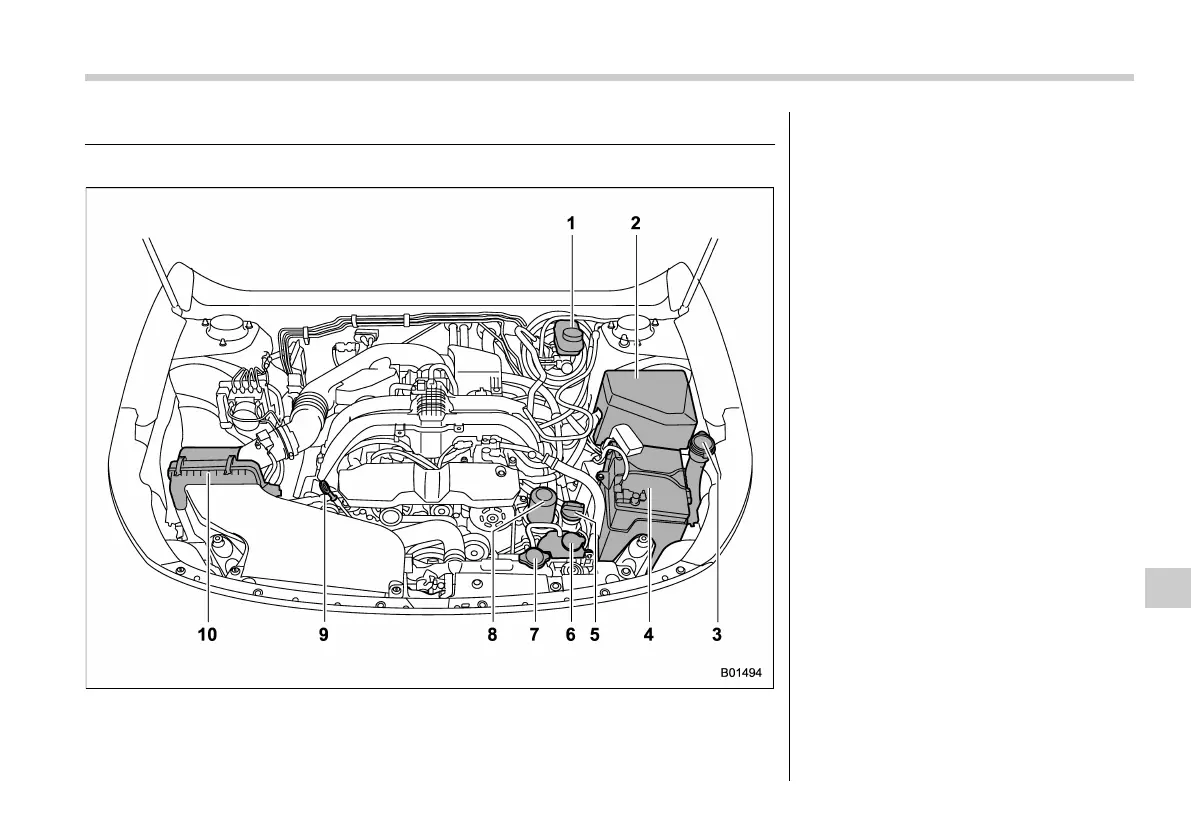

Engine compartment overview
& 2.5 L models
The illustration above is for left-hand drive models. The location of item No. 1 (brake fluid
reservoir) for right-hand drive models is the opposite of that shown here.
1) Brake fluid reservoir (page 11-29)
2) Fuse box (page 11-48)
3) Windshield washer tank (page 11-41)
4) Battery (page 11-46)
5) Engine oil filler cap (page 11-16)
6) Engine coolant reservoir (page 11-23)
7) Radiator cap (page 11-23)
8) Engine oil filter (page 11-19)
9) Engine oil level gauge (page 11-16)
10) Air cleaner case (page 11-24)
Maintenance and service/Engine compartment overview
11-13
