Climate control/Air filtration system

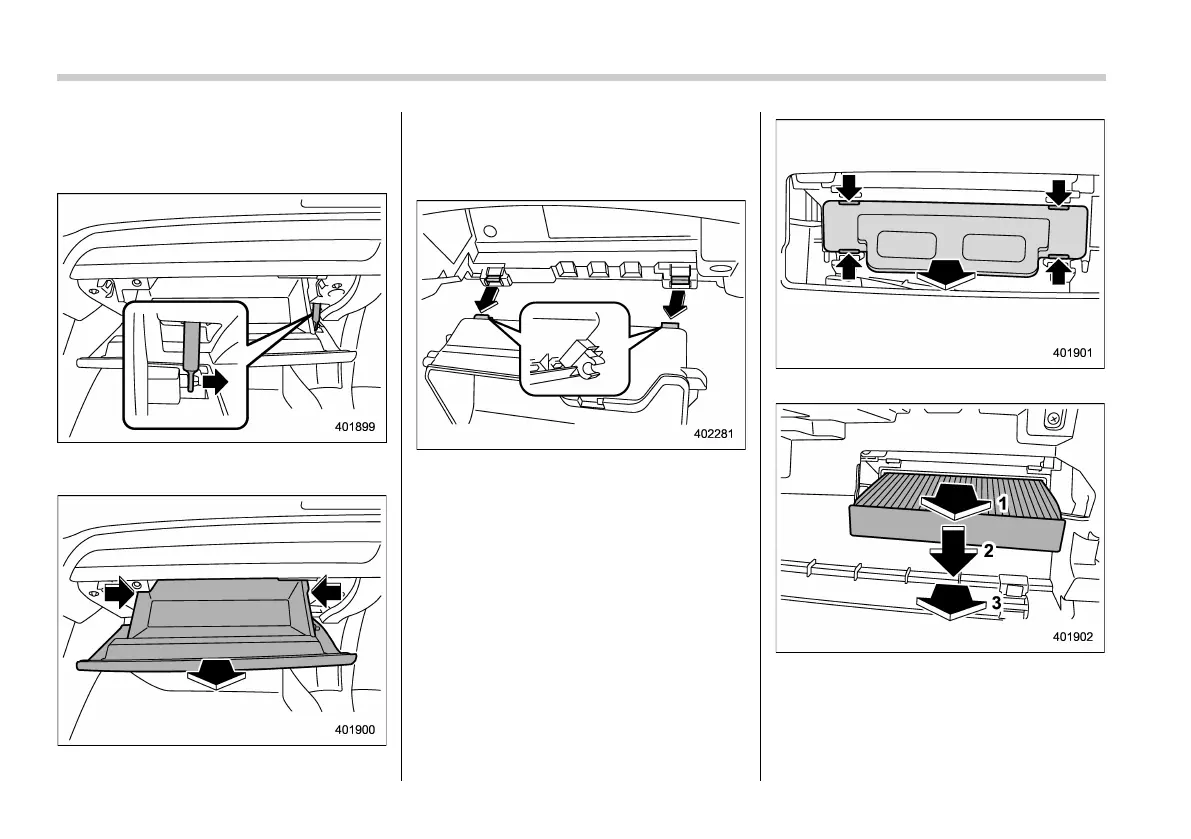

& Replacing an air filter
1. Remove the glove box.
(1) Open the glove box.
(2) Remove the damper shaft from the
glove box.
(3) Push both sides of the glove box
inward to unlock the stoppers. Then
pull down the glove box as far as it will
go.
(4) Pull out the glove box horizontally.
Then remove the hinge portion. When
doing this, be careful not to damage
the hinge.
2. Remove the cover of the air filter.
1) Pull the air filter approximately 10 cm (3.9
inches) first.
2) Gently push the near side of the air filter
down.
3) Pull out the air filter.
