Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag)

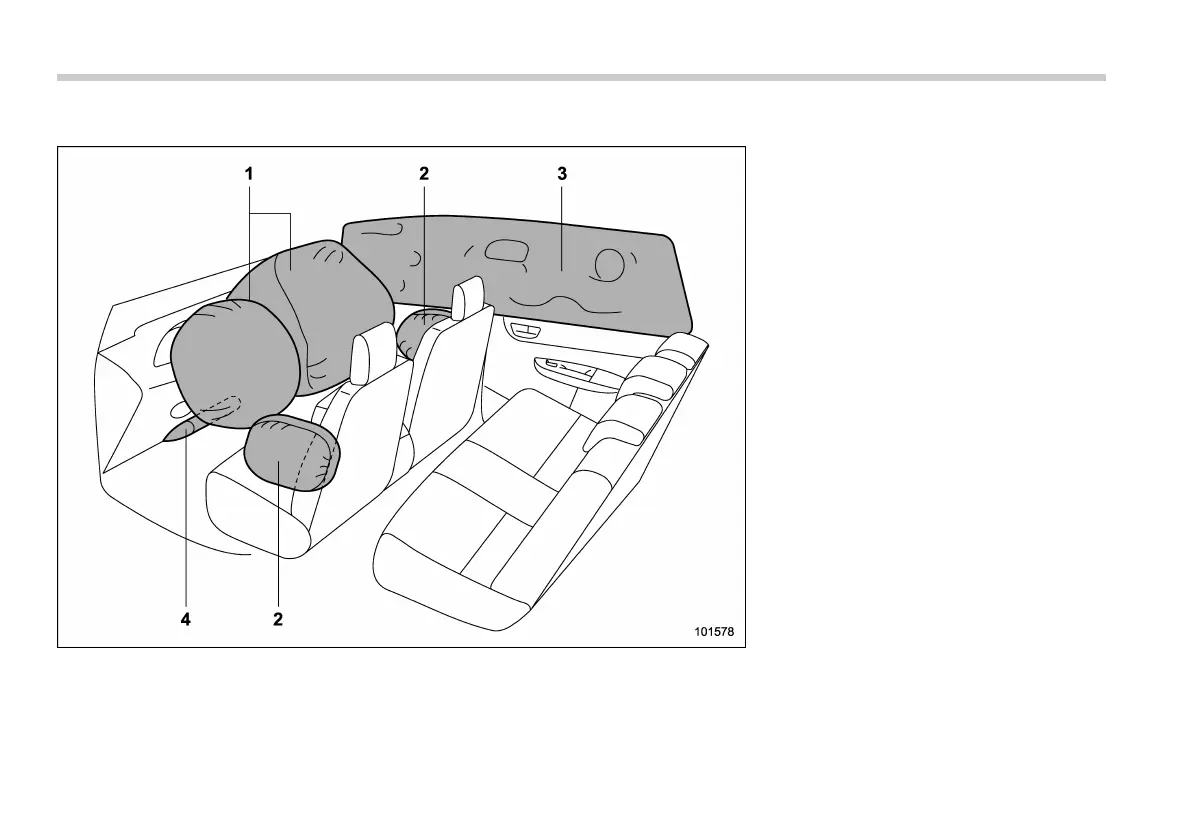

& Components
1) SRS frontal airbag
2) SRS side airbag
3) SRS curtain airbag
4) SRS knee airbag
The SRS airbags are stowed in the
following locations.
Driver’s SRS frontal airbag: in the center
portion of the steering wheel
An “SRS AIRBAG” mark is located on the
steering pad.
Front passenger’s SRS frontal airbag:
near the top of the dashboard under an
“SRS AIRBAG” mark
SRS side airbag: in the door side of each
front seat seatback
An “SRS AIRBAG” mark is located on the
trim cover on the door side of each front
seat cushion.
SRS cur tain airbag: in the roof side
(between the front pillar and a point over
the rear seat)
An “SRS AIRBAG” mark is located at the
top of each center pillar.
SRS knee airbag: un der the steering
column
An “SRS AIRBAG” mark is located on the
lower cover.
