4. Pull the bulb out of the bulb holder and
replace it with a new one.
5. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
6. Securely lock the cover against the
trunk trim.
7. Reattach the shopping bag hook.
! Outback

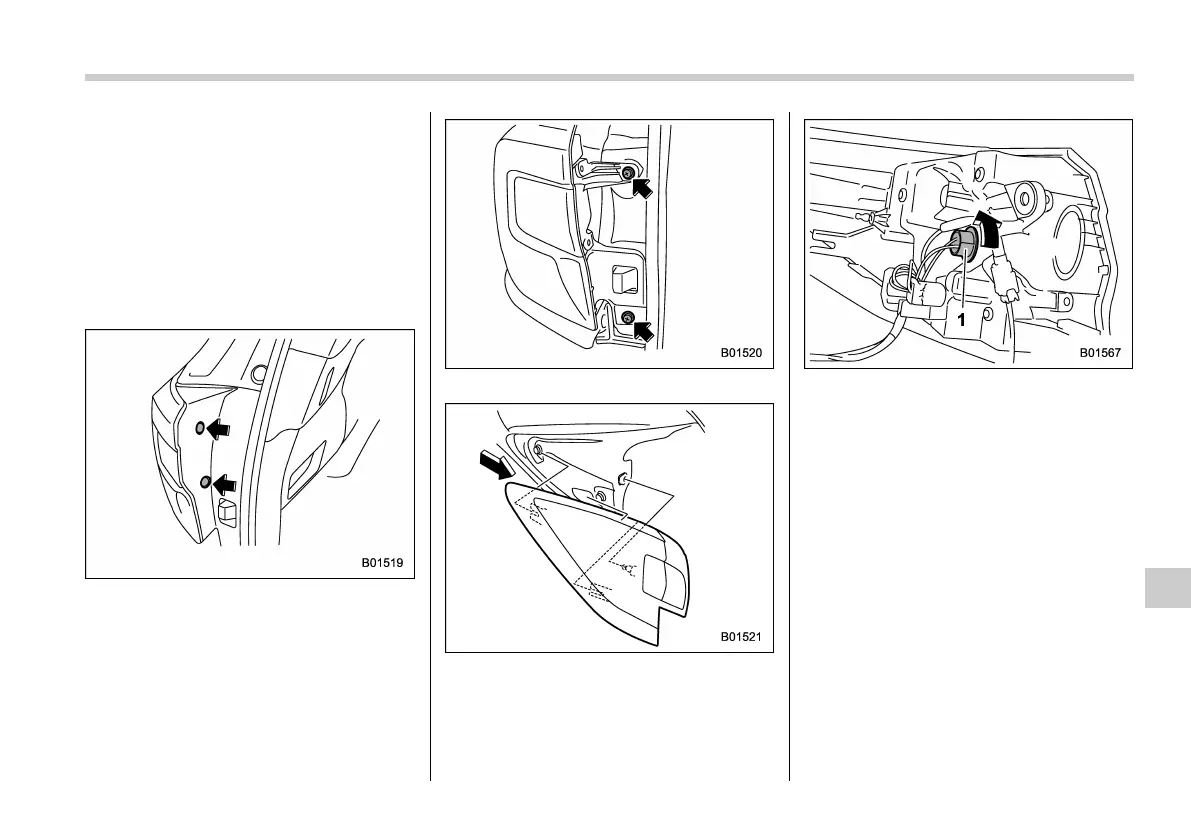

1. Undo the clips. For the method to undo
the clips, refer to “Type C clips ” F11-10.
2. Remove the cover.
3. Remove the upper and lower screws.
4. Slide the rear combination light as-
sembly straight rearward and remove it
from the vehicle.
1) Rear turn signal light
5. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
6. Pull the bulb out of the bulb holder and
replace it with a new one.
7. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
Maintenance and service/Replacing bulbs
11-55
