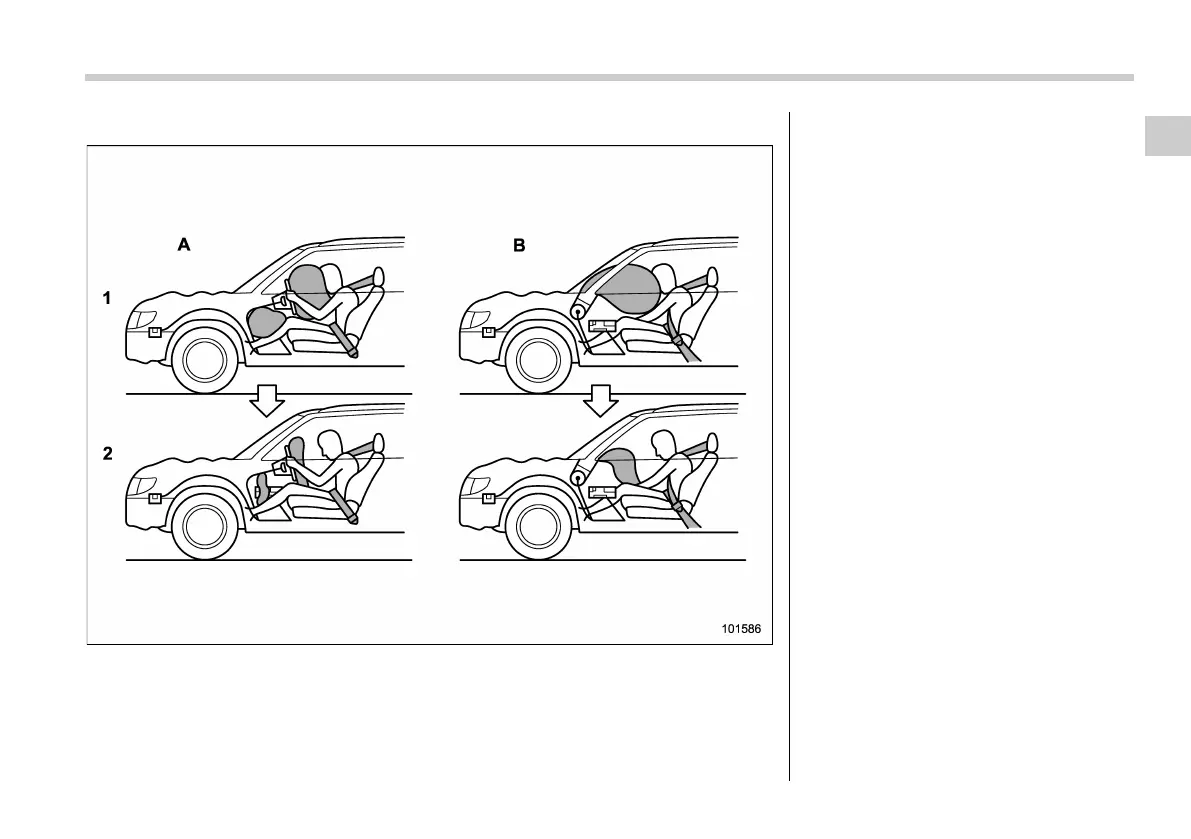

! SRS frontal airbag operation
A) Driver’s side
B) Passenger’s side
1) SRS AIRBAGs deploy as soon as a collision occurs.
2) After deployment, SRS AIRBAGs start to deflate immediately so that the driver’s vision is not
obstructed.
If the following sensors detect a certain
predetermined amount of force during a
frontal collision, the control module sends
signals to the frontal airbag modules
instructing them to inflate the SRS frontal
airbags.
. the front sub sensors located on both
the right and left sides at the front of the
vehicle
. the impact sensor in the airbag control
module
Then both airbag modules produce gas,
which instantly inflates driver’s and pas-
senger’s SRS frontal airbags.
After deployment, the SRS airbags im-
mediately start to deflate so that the
driver’s vision is not obstructed and the
driver’s ability to maintain control of the
vehicle is not interfered. The time required
from detecting impact to the deflation of
the SRS airbag after deployment is short-
er than the blink of an eye.
If the vehicle is equipped with the occu-
pant detection system for the front pas-
senger’s seat, the SRS system detects
whether the front passenger’sseatis
occupied by a passenger or not. If the
seat is not occupied, the system does not
inflate the front passenger’s SRS airbag.
The SRS frontal airbag is designed as
Seat, seatbelt and SRS airbags/*S RS airbag (Supplemental Restraint System airbag )
