CHAPTER

Netra T2000 Overview

This chapter provides an overview of the features of the Netra T2000 server. The

following topics are covered:

■ “Server Views” on page 1

■ “Server Features” on page 3

■ “System Reliability, Availability, and Serviceability” on page 8

■ “Fault Management and Predictive Self-Healing” on page 10

■ “Rackmountable Enclosure” on page 11

Server Views

The following figures show the physical characteristics of the server.

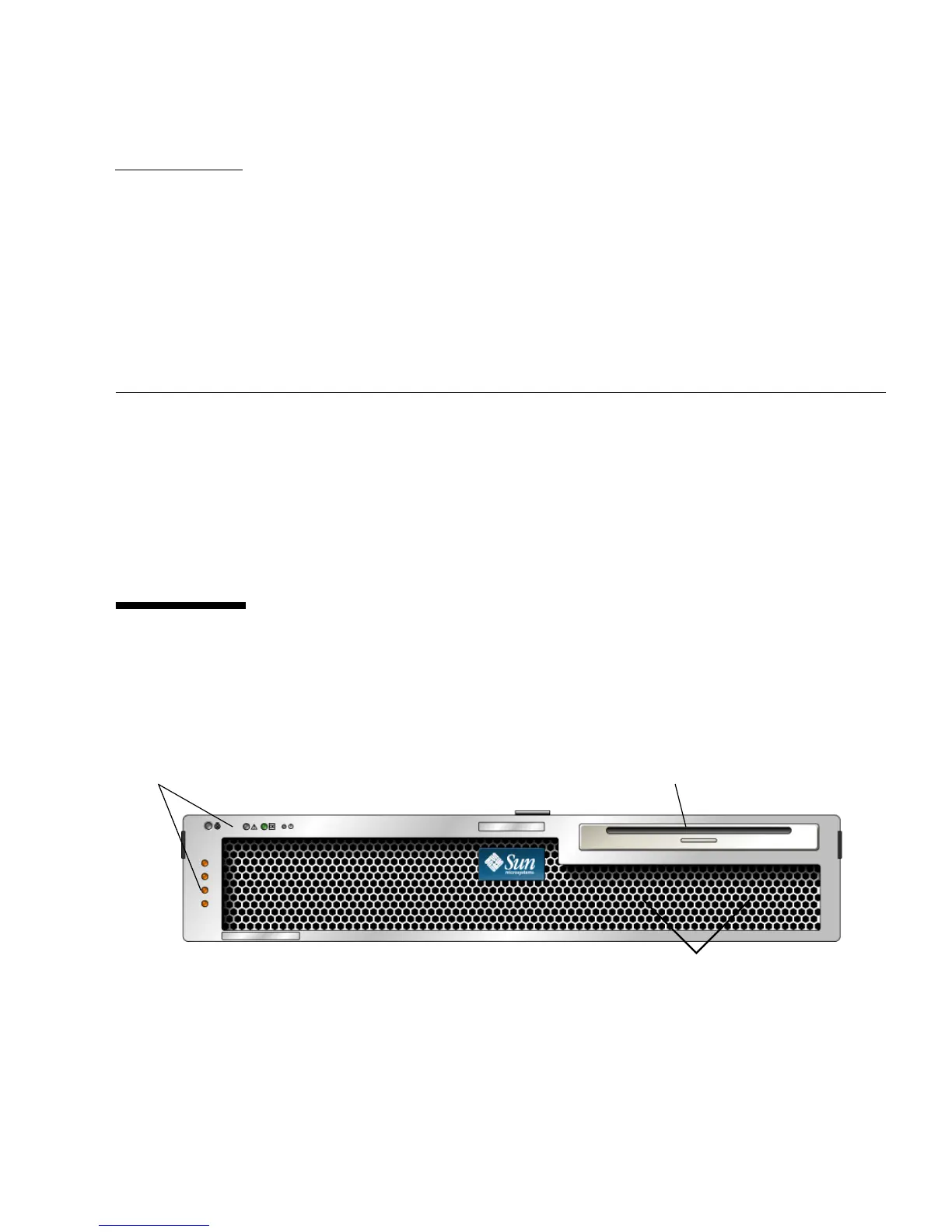

FIGURE 1-1 Netra T2000 Server Front Panel

Indicators and buttons

Removable media drive

Hard drives (behind bezel)

Table of Contents3
How this Document Is Organized13
Typographic Conventions14
Related Documentation15
Sun Welcomes Your Comments16
Server Views17
FIGURE 1-1 Netra T2000 Server Front Panel17
FIGURE 1-2 Netra T2000 Server Rear Panel18
FIGURE 1-3 Netra T2000 Server18
Server Features19
- TABLE 4 Server Features19
- Chip-Multitheaded Multicore Processor and Memory Technology20
- FIGURE 1-5 Ultrasparc T1 Multicore Processor Block Diagram21
- Performance Enhancements21
- Preinstalled Solaris Operating System21
- Preloaded Java Enterprise System Software22
- Hardware-Assisted Cryptography23
- Remote Server Management with ALOM23
System Reliability, Availability, and Serviceability24
- Hot-Swappable Components24
- Power Supply Redundancy25
- Fan Redundancy25
- Environmental Monitoring25
- Error Correction and Parity Checking26
Fault Management and Predictive Self-Healing26
Rackmountable Enclosure27
Tools Needed29
Shipping Kit Inventory List29
Installation Overview30
Installing the Air Filter32
FIGURE 2-1 Finger Holds on Bezel32
Installing Optional Components33
FIGURE 2-2 Installing the Air Filter in the Bezel33
Slide Rail Assembly Notes34
FIGURE 2-3 Sections of the Slide Rail Assembly34
FIGURE 2-4 Locating the Locks on the Slide Rail Assembly35
Safety Precautions36
4-Post Rackmounting Options38
Hardmounting the Server in a 19-Inch 4-Post Rack38
- To Install a Server with a Hardmount 19-Inch 4-Post Rack38
- TABLE 3-1 Optional Rackmount Kits38
- FIGURE 3-1 Contents of the Hardmount 19-Inch 4-Post Kit39
- TABLE 3-2 19-Inch 4-Post Rackmount Screw Kit Contents39
- FIGURE 3-2 Securing the Hardmount Brackets to the Server40
- FIGURE 3-3 Attaching the Rear Mount Support Brackets41
- FIGURE 3-4 Securing the Front of the Server to the Rack41
Mounting the Server in a Sliding Rail Mount 19-Inch 4-Post Rack42
FIGURE 3-5 Securing the Rear of the Server to the Rack42
TABLE 3-3 Sliding Rail 19-Inch 4-Post Rackmount Screw Kit Contents43
FIGURE 3-6 Contents of the Sliding Rail 19-Inch 4-Post Kit43
FIGURE 3-7 Securing the Hardmount Bracket to the Server44
FIGURE 3-8 Dismantling the Slide45
FIGURE 3-9 Fixing the Glides to the Server Chassis45
FIGURE 3-10 Securing the Brackets to the Rack46
FIGURE 3-11 Securing the Slide to the Brackets47
FIGURE 3-13 Securing the Front of the Server to the Rack48
FIGURE 3-12 Sliding the Server into the Rack48
Hardmounting the Server in a 600-MM 4-Post Rack49
- To Install a Server with a Hardmount in a 600-MM 4-Post Rack49
- FIGURE 3-14 Contents of the Hardmount 600-MM 4-Post Kit50
- TABLE 3-4 Hardmount 600 MM 4-Post Rackmount Screw Kit Contents50
- FIGURE 3-15 Adjustable Rail Screws51
- FIGURE 3-16 Securing the Front of the Adjustable Rails to the Rack52
- FIGURE 3-17 Securing the Rear of the Adjustable Rails to the Rack53
- FIGURE 3-18 Installing the Rear Flange Onto the Adjustable Rail54
- FIGURE 3-19 Securing the Side Rails to the Server55
- FIGURE 3-20 Sliding the Server Onto the Adjustable Rails55
- FIGURE 3-21 Securing the Rear of the Server to the Rear Flanges56
Installing a Server with a Hardmount in a 19-Inch 4-Post Rack for Use with the Cable Management Assembly57
- FIGURE 3-22 Securing the Front of the Server to the Front of the Rack57
- FIGURE 3-23 Unlocking the Slide Rail Assembly58
- To Install the Slide Rail Assemblies58
- FIGURE 3-24 Location of the Mounting Bracket Release Button59
- FIGURE 3-25 Unlocking the Slide Rail Middle Section59
- FIGURE 3-26 Attaching a Mounting Bracket to the Chassis60
- FIGURE 3-27 Mounting a Slide Rail61
- FIGURE 3-28 Adjusting the Distance between the Slide Rails62
- FIGURE 3-29 Mounting the Chassis on the Slide Rails63
- To Install the Cable Management Assembly63
- FIGURE 3-30 Inserting the CMA Rail Extension into the Rear of the Left Slide Rail64
- FIGURE 3-31 Mounting the Inner CMA Connector65
- FIGURE 3-32 Attaching the Outer CMA Connector65
- FIGURE 3-33 Mounting the Left Side of the Rail66
- To Verify the Operation of the Slide Rails and the CMA66
- FIGURE 3-34 Unlocking the Slide Rail Assembly67
- FIGURE 3-35 Unlocking the Slide Rail Lever Stops68
- FIGURE 3-36 Slide Rail Release Button68
2-Post Rackmounting Options72
Hardmounting the Server in a 23-Inch 2-Post Rack72
- To Install a Server with a Hardmount in a 23-Inch 2-Post Rack72
- TABLE 4-1 Optional Rackmount Kits72
- FIGURE 4-1 Contents of the Hardmount 23-Inch 2-Post Kit73
- TABLE 4-2 Hardmount 23-Inch 2-Post Rackmount Screw Kit Contents73
- FIGURE 4-2 Securing the Side Brackets to the Side of the Server74
- FIGURE 4-3 Installing the Rail Guides in the Rack74
- FIGURE 4-4 Installing and Securing the Server in the 2-Post Rack75
- FIGURE 4-5 Installing a Screw on the Middle Rack Position on the Rear Plate76
Hardmounting the Server in a 19-Inch 2-Post Rack77
- To Install a Server with a Hardmount in a 19-Inch 2-Post Rack77
- FIGURE 4-7 Securing the Rear Plate to the Back of the Post77
- FIGURE 4-8 Contents of the Hardmount 19-Inch 2-Post Kit78
- TABLE 4-3 Hardmount 19-Inch 2-Post Rackmount Screw Kit Contents78
- FIGURE 4-9 Securing the Side Brackets to the Side of the Server79
- FIGURE 4-10 Installing and Securing the Server in the 2-Post Rack79
- FIGURE 4-11 Installing Screws on the Optimum Rack Position on the Rear Plate80
- FIGURE 4-12 Installing the Rear Plate to the Side Bracket81
- FIGURE 4-13 Securing the Rear Plate to the Rack82
Data Ports and Cabling Notes83
- Port Locations83
- Cabling Notes84
- FIGURE 5-1 Rear Panel Features84
Connecting Cables85
- To Connect the Ethernet Network Cables85
- To Connect the SC Serial Management Port86
- FIGURE 5-2 Ethernet Network Connections86
- To Connect the SC Network Management Port87
- FIGURE 5-3 System Controller Serial Connection87
- Input Power Cables88
- TTYA Serial Port88
- FIGURE 5-4 System Controller Network Connection88
- USB Ports89
- FIGURE 5-5 Serial Port89
- Alarm Port90
- FIGURE 5-6 USB Ports90
- FIGURE 5-7 Alarm Port90
Managing Cables with the CMA91
- To Open and Close a Cable Clip91
- FIGURE 5-8 Opening a Cable Clip91
- FIGURE 5-9 Removing a Cable Clip92
- FIGURE 5-10 Mounting or Moving a Cable Clip92
Powering on the Server for the First Time93
- FIGURE 6-1 Rear Panel Power Connectors94
- To Power on the Server for the First Time94
Enabling the System Controller Network Management Port96
Logging into the System Controller96
- To Log into the System Controller Using the Serial Management Port96
- To Configure the System Controller Network Management Port97
- TABLE 6-1 Sample Configuration Parameter Setting99
- To Reset the System Controller100
- To Log into the System Controller Using the Network Management Port101
Using the System Controller for Common Operations102
- To Power on the Server102
- To Connect to the System Console103
- To Perform a Normal Server Initialization103
- TABLE 6-2 Map of Devices, Openboot Path Names, and Locations104
Booting the Solaris Operating System105
- To Boot the Solaris Operating System105
- To Reset the Server106
- To Power Cycle the Server106
- TABLE A-1 Server Software Configuration Worksheet109
