Chapter 4 Mounting the Server Into a 2-Post Rack 59
5. Lift the server into the rack and slide the server onto the rail guides (FIGURE 4-4).

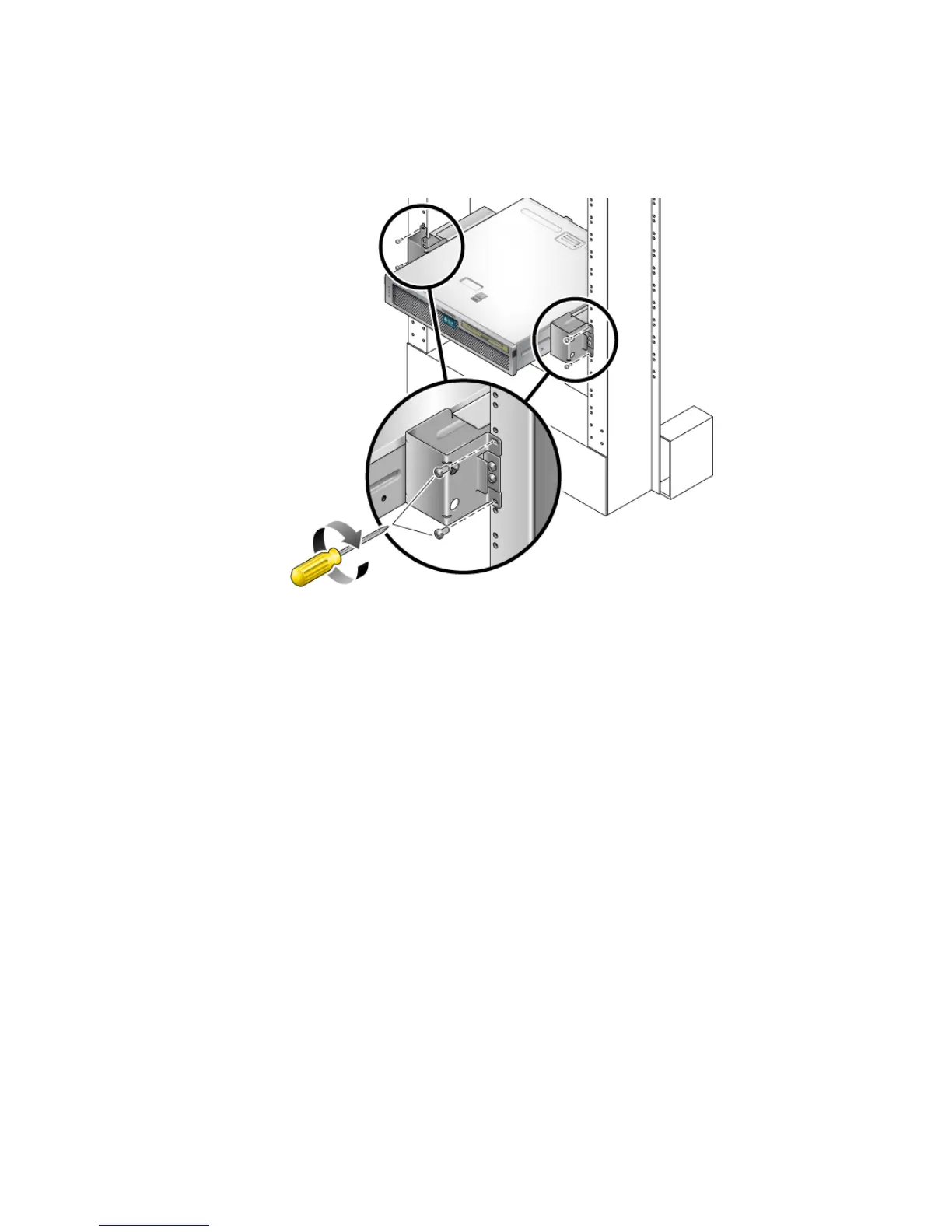

FIGURE 4-4 Installing and Securing the Server in the 2-Post Rack
6. Using two screws on each side, secure each side bracket on the server to the front
of the rack (
FIGURE 4-4).
The size of the screws varies, depending on your particular rack.
7. (Optional) If your environment contains especially high vibrations, use the rear
plates to further secure the server to the rack (
FIGURE 4-1).
The rear plates attach to the rear of the post and to one of the three eyelets on each
side bracket, depending on the thickness of the post.
a. Using one M5 × 10 SEM screw for each rear plate, loosely install the screw in
one of the three positions on the rear plate (
FIGURE 4-5).
The position varies depending on the thickness of the rail in the rack. For
example,
FIGURE 4-5 shows where you would install the screw for the middle rack
position on the rear plate.
