42 Netra T2000 Server Installation Guide • September 2006

▼ To Install the Slide Rail Assemblies

1. Pull both mounting brackets completely out of their respective slide rails:

a. Simultaneously press and hold the upper and lower lock buttons of the slide

rail lock (

FIGURE 3-23).

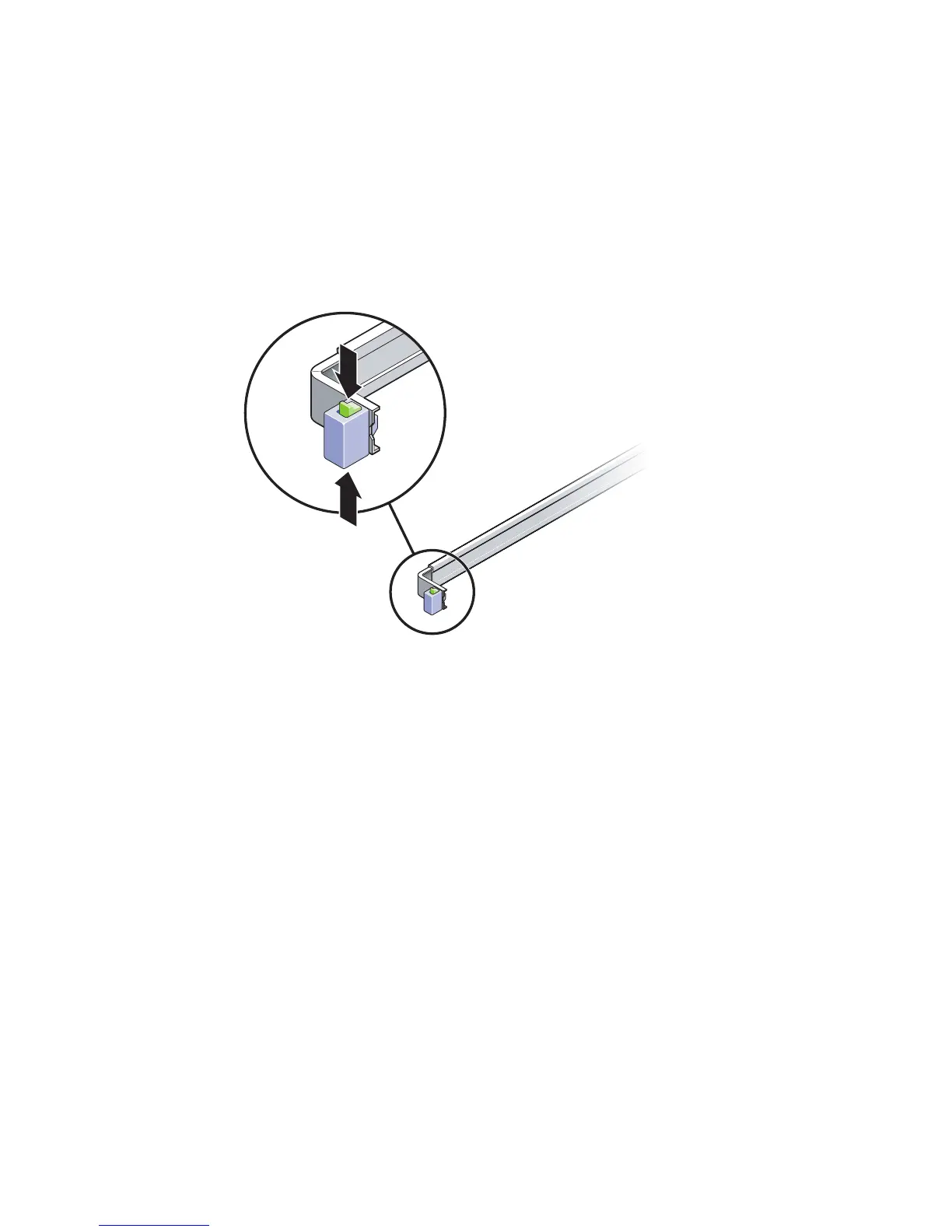

FIGURE 3-23 Unlocking the Slide Rail Assembly

b. Pull the mounting bracket out until it locks in the extended position.

c. Slide the mounting bracket release button in the direction shown in

FIGURE 3-24,

then slide the mounting bracket out of the slide rail.
