38 Netra T2000 Server Installation Guide • September 2006

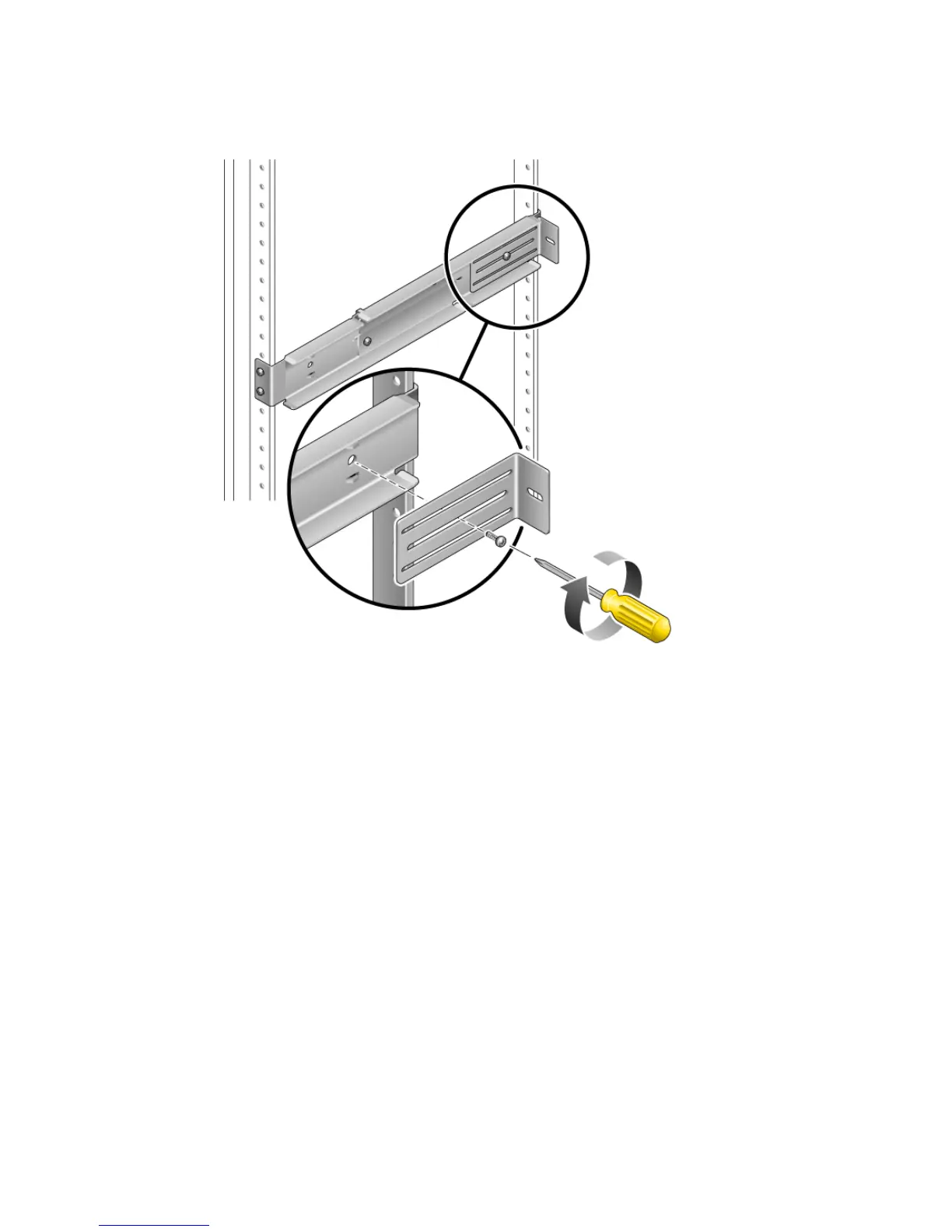

FIGURE 3-18 Installing the Rear Flange Onto the Adjustable Rail

9. Get the side rails from the rack kit (FIGURE 3-14).

10. Using eight of the M5 × 10 SEM screws (four for each side rail), secure the side

rails to the sides of the server (

FIGURE 3-19).

The side rails can accommodate rack rail setbacks (the distance from the front of the

rack to the rack rail) of 50 mm, 75 mm, or 100 mm, depending on the type of rack

you are installing the server into.
