46 Netra T2000 Server Installation Guide • September 2006

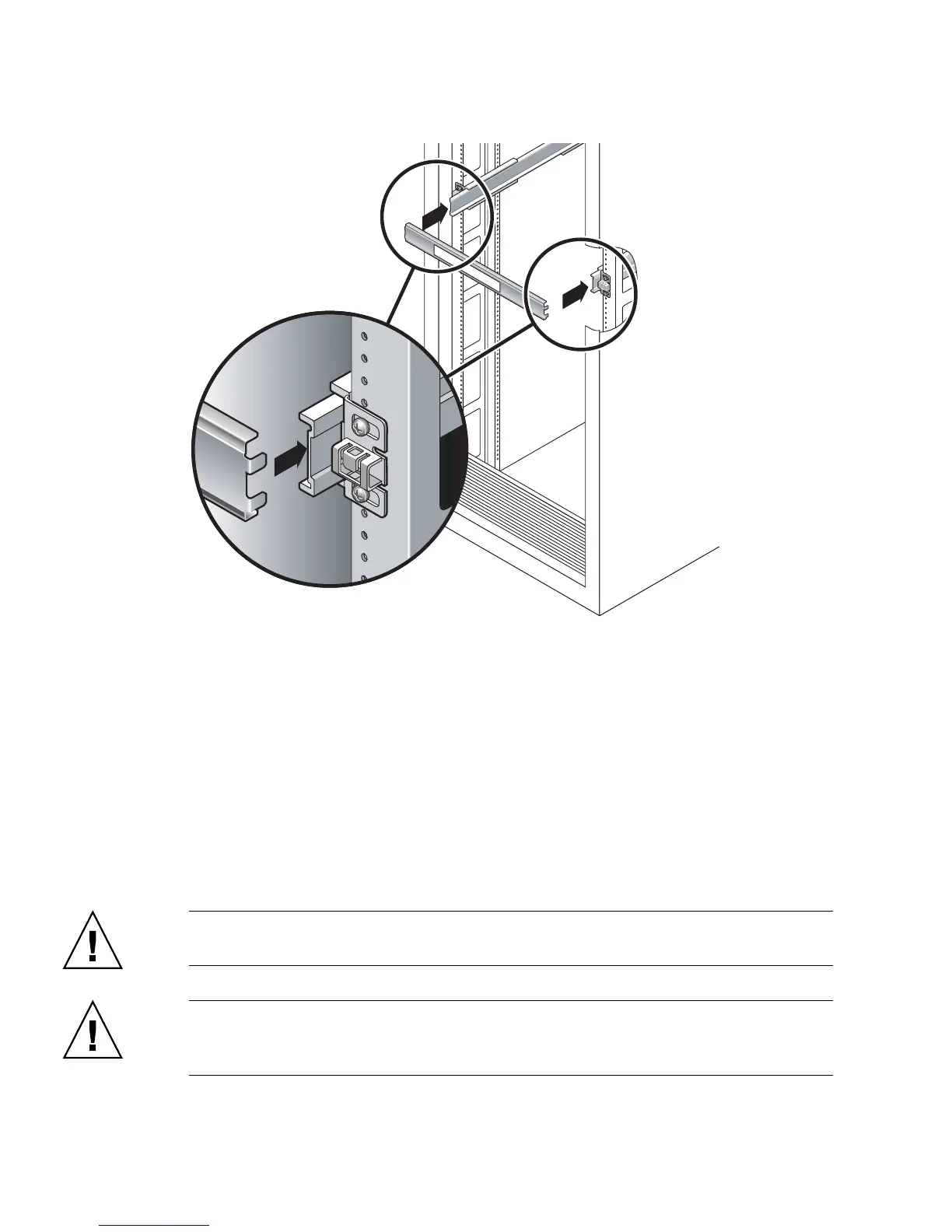

FIGURE 3-28 Adjusting the Distance Between the Slide Rails
b. Insert the right side of the tool into the front end of the right rail, while sliding
the end of the rail to the right or left as needed to enable the ends of the tool to
enter the ends of both rails.
The distance between the rails is now equal to the width of the server with
mounting brackets.
c. Tighten the screws to lock the ends of the rails in place.
d. At the rear of the rack, repeat Step a through Step c for the rear ends of the rails.
9. Deploy the antitilt bar, if the chassis or rack is so equipped.
Caution – The weight of the server on extended slide rails can be enough to
overturn a cabinet.
Caution – The server weighs approximately 40 lb (18 kg). Two people are required
to lift and mount the server into a rack enclosure when using the procedures in this
chapter.
