Chapter 2 Preparing for Installation 19

■ The front, middle, and rear sections form the slide rail. The middle and rear sections

have holes for mounting screws and adjust to fit rack depths from 24 in. (61 cm)

to 36.5 in. (93 cm). The front section can be extended to enable movement of the

server out of the rack.

■ The removable mounting bracket slides 14 in. (36 cm) out of the slide rail, then

locks in place. If you unlock the mounting bracket at this point, it slides an

additional 12 in. (30 cm) before separating from the slide rail. You can then mount

the mounting bracket to the right or left side of the chassis.

■ Note that there are a total of five locks (FIGURE 2-4) in a slide rail assembly. Four

are on the mounting bracket. One lock is on the front section of the slide rail.

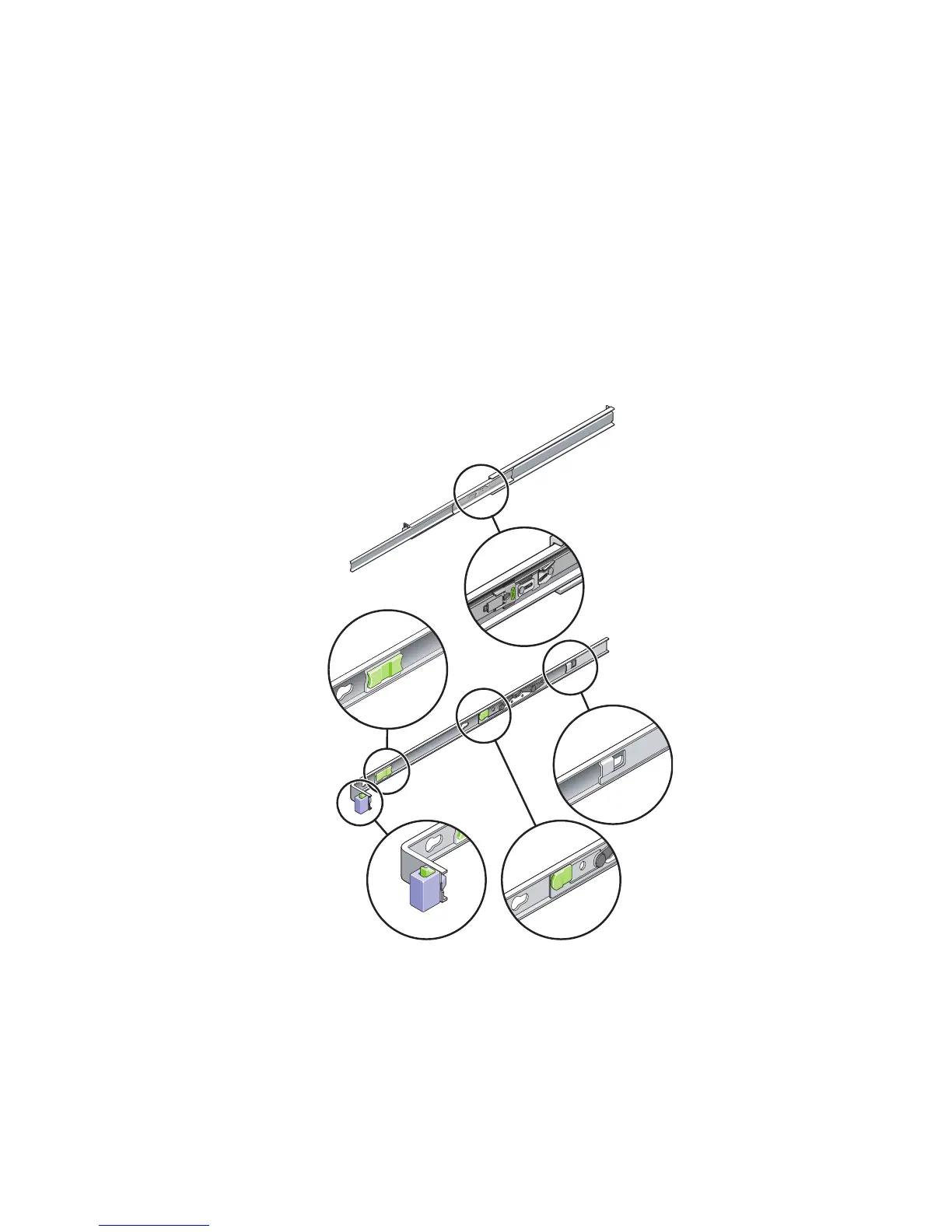

FIGURE 2-4 Locating the Locks on the Slide Rail Assembly
