70 Netra T2000 Server Installation Guide • September 2006

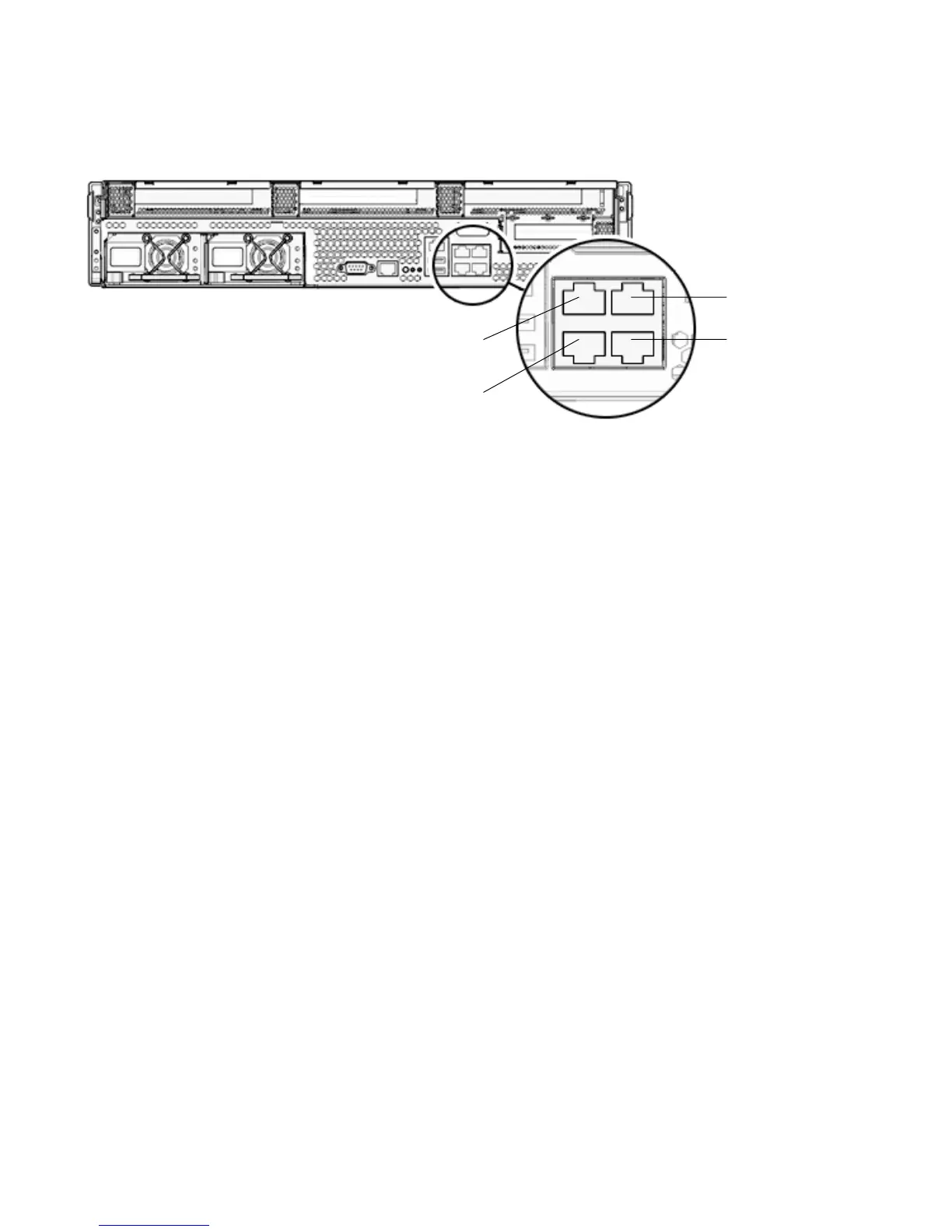

FIGURE 5-2 Ethernet Network Connections

1. Connect a Category 5 cable from your network switch or hub to Ethernet Port 0

(NET0) on the rear of the chassis.

2. As needed, connect Category 5 cables from your network switch or hub to the

remaining Ethernet ports (NET1, NET2, NET3).

▼ To Connect the SC Serial Management Port

Use this port for server management. This port is needed to set up the SC network

management port, as detailed in “Enabling the System Controller Network

Management Port” on page 80.

The SC serial management port is marked SER MGT. It is the leftmost RJ-45 port on

the rear of the chassis (

FIGURE 5-3).

NET3

NET1

NET0

NET2
