34 Netra T2000 Server Installation Guide • September 2006

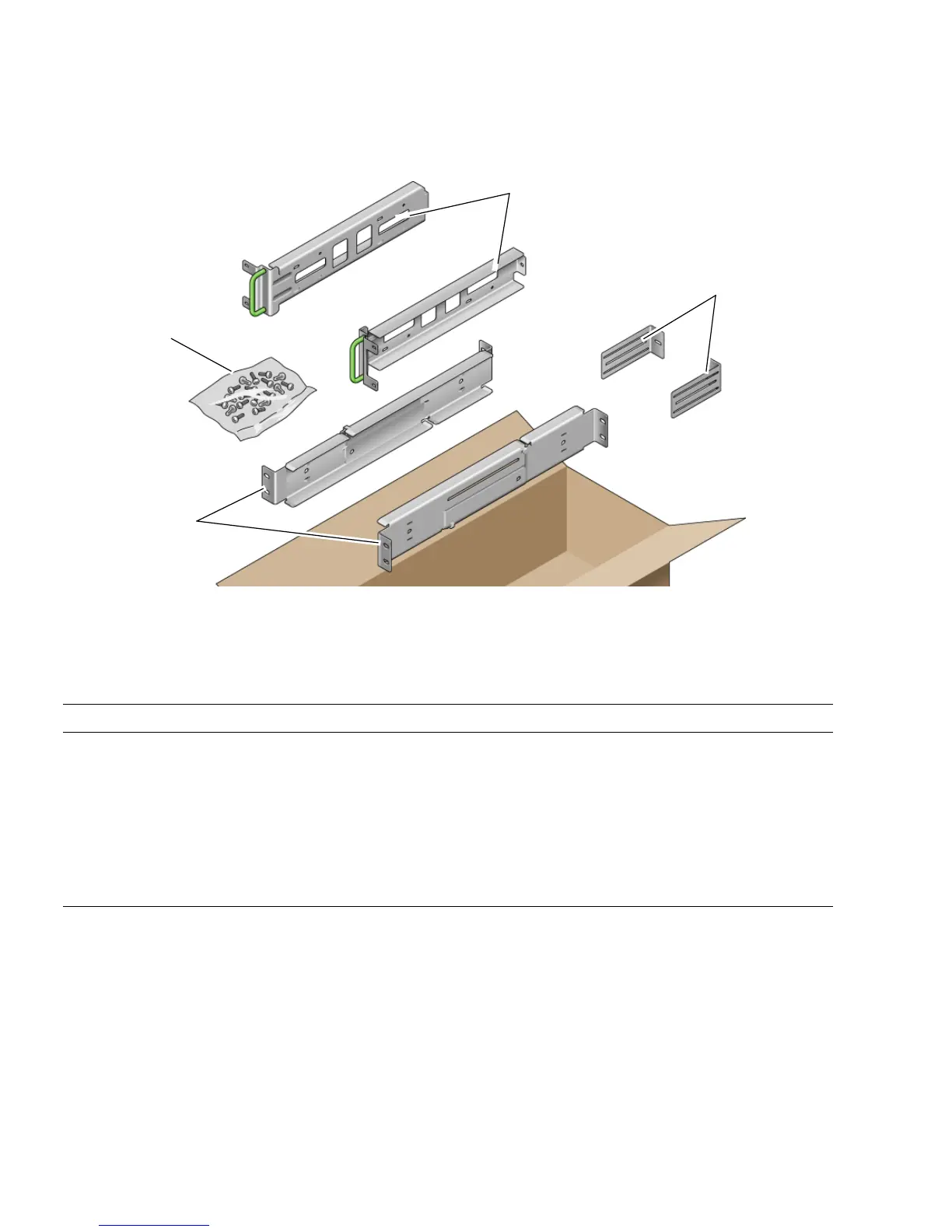

FIGURE 3-14 Contents of the Hardmount 600-mm 4-Post Kit

1. Get the adjustable rails from the rack kit (FIGURE 3-14).

2. Loosen the two screws at the middle of each adjustable rail so that you can extend

the adjustable rail (

FIGURE 3-15).

TABLE 3-4 Hardmount 600 mm 4-Post Rackmount Screw Kit Contents

Number Description Where Used

12 M5 x 10 SEM screws 8 for side rails, 4 for rear flanges

10 M5 x 12.7 mm screws 10 for rack, if appropriate

10 M6 x 13 mm screws 10 for rack, if appropriate

9 M6 square clip nuts 9 for rack, if appropriate

12 10-32 x 0.5 in. combo head screws 12 for rack, if appropriate

12 12-24 x 0.5 in. combo head screws 12 for rack, if appropriate

Screws

Side rails

Adjustable rails

Rear flanges
