Chapter 2 Preparing for Installation 17

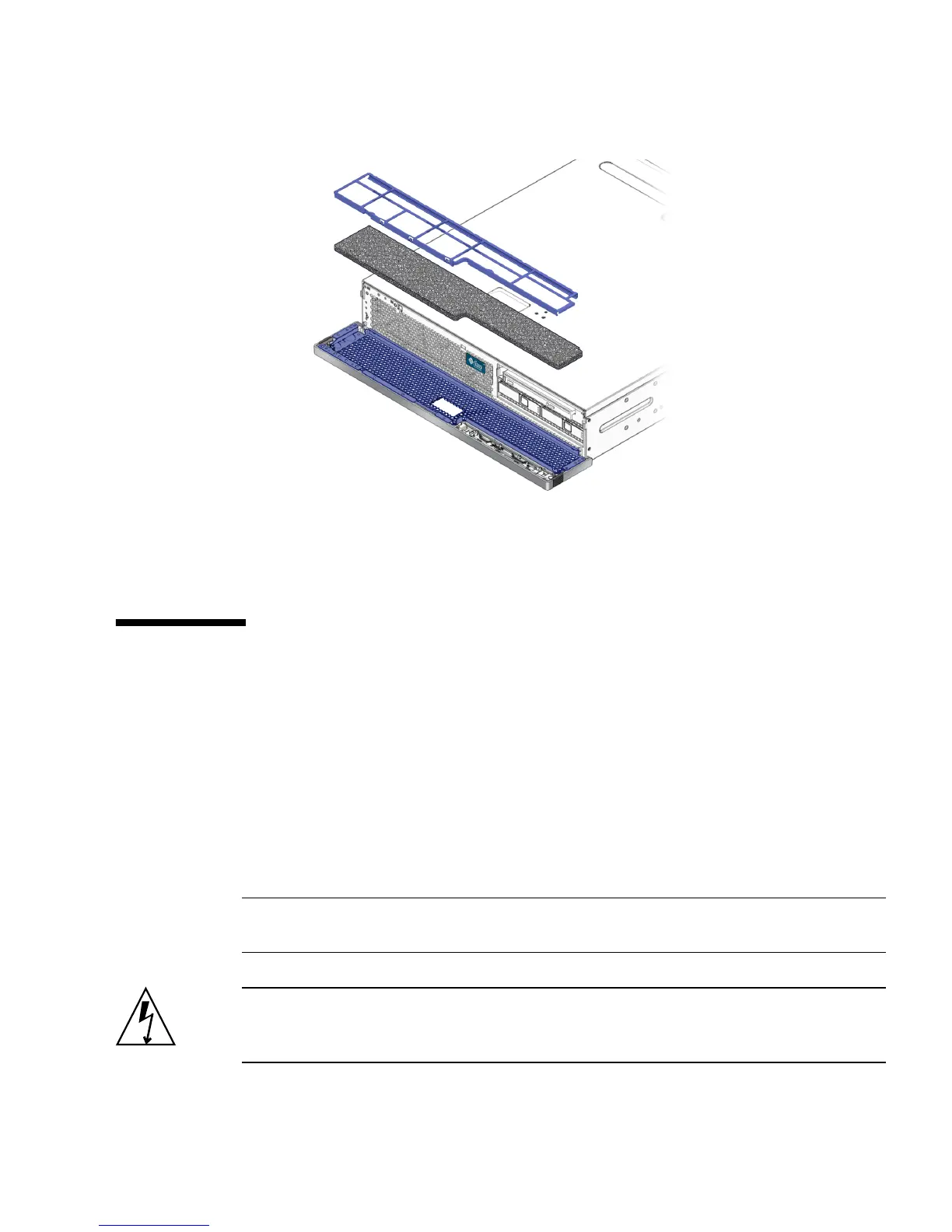

FIGURE 2-2 Installing the Air Filter in the Bezel

5. Close the bezel.

Installing Optional Components

The standard components of the server are installed at the factory. However, if you

ordered options such as additional memory or a PCI card, these will be shipped

separately. If possible, install these components prior to installing the server in a

rack.

Install any optional components shipped with your server.

If you ordered options that are not factory-installed, see the server service manual

for installation instructions.

Note – All internal components except disk drives must be installed by qualified

service technicians only.

Caution – To protect electronic components from electrostatic damage, which can

permanently disable the server or require repair by Sun service technicians, note the

following guidelines.
