48 Netra T2000 Server Installation Guide • September 2006

The right sides of the two CMA arms have hinged extensions. On the

manufacturer’s instruction sheet, the smaller extension is called the inner CMA

connector. It attaches to the right mounting bracket. The larger extension is called

the CMA outer connector, and attaches to the right sliding rail.

Caution – Support the CMA during this installation. Do not permit the assembly to

hang by its own weight until it is secured by all three attachment points.

1. At the rear of the rack, plug the CMA rail extension into the end of the left sliding

rail assembly (

FIGURE 3-30).

The tab at the front of the rail extension will click into place.

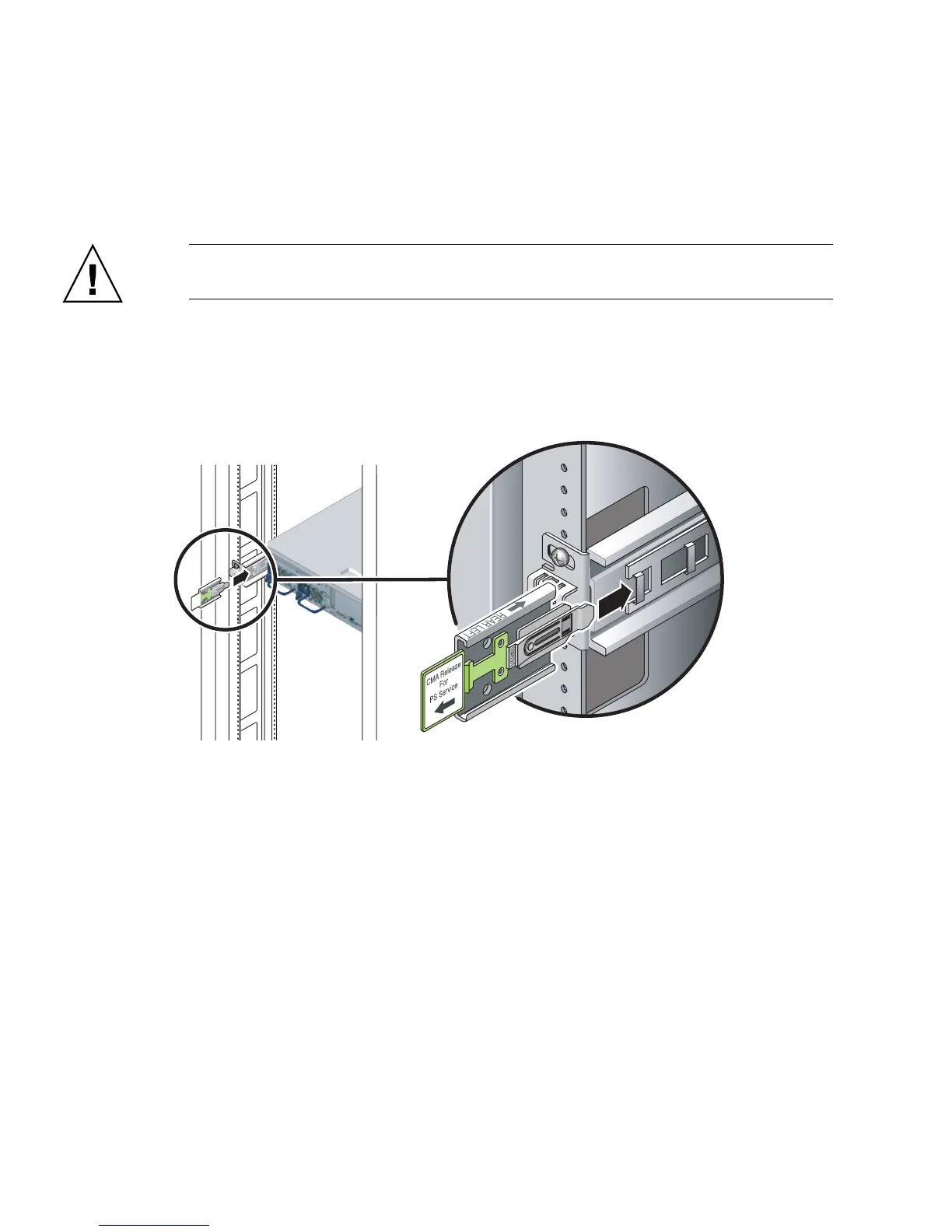

FIGURE 3-30 Inserting the CMA Rail Extension Into the Rear of the Left Slide Rail

2. Insert the smaller CMA extension into the clip located at the end of the mounting

bracket (

FIGURE 3-31).
