Chapter 3 Mounting the Server Into a 4-Post Rack 31

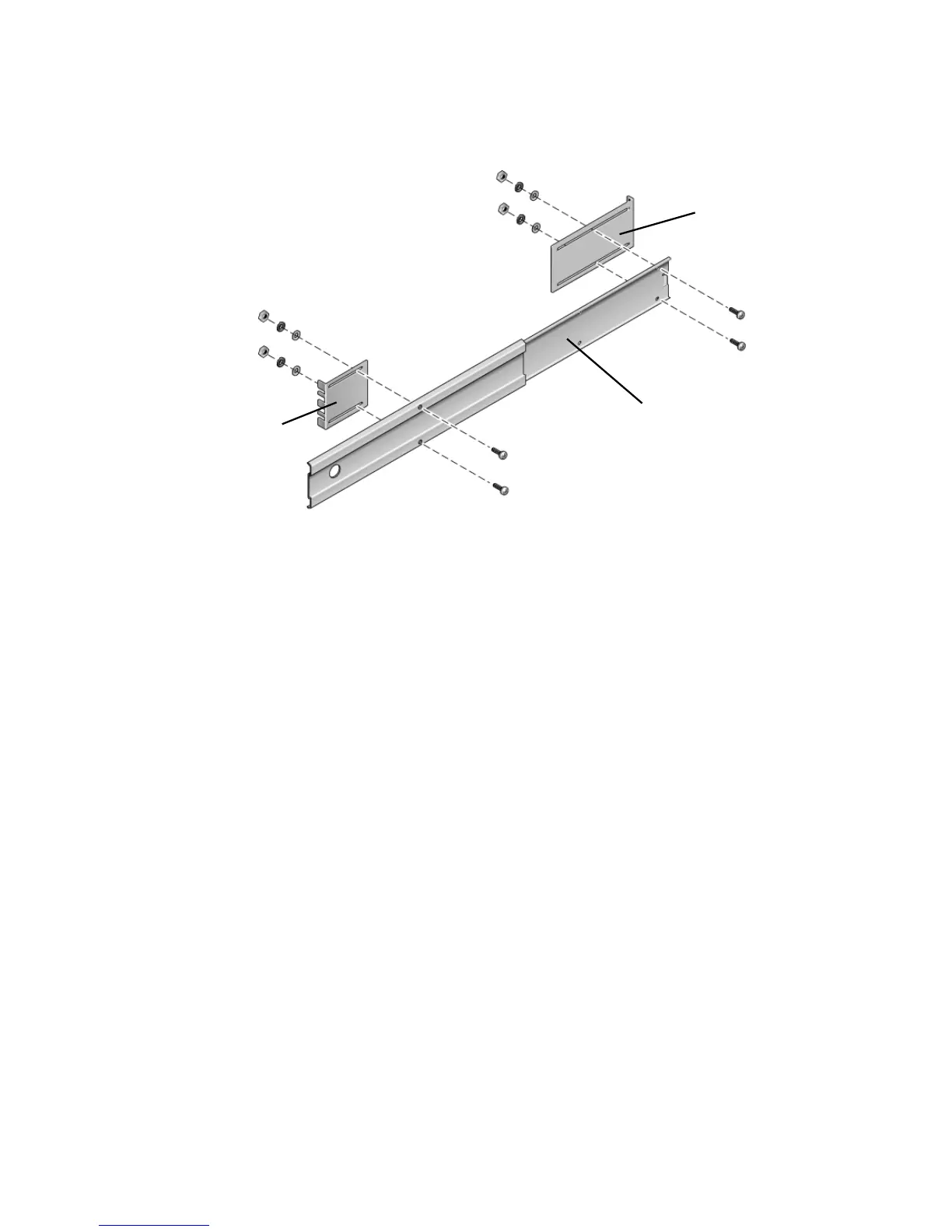

FIGURE 3-11 Securing the Slide to the Brackets

11. Repeat Step 9 and Step 10 for the slide on the other side of the rack.

12. Push the slides completely into the assembly on each side of the rack and release

the stop catches.

13. Align the glides attached to the server with the slide assemblies in the rack.

You might find that there is too much or too little room between the two slides

mounted in the rack, consequently the glides attached to the server might not align

correctly with the slides in the rack. If either situation occurs, loosen the M6 collar

screws and cage nuts on the long and short brackets (Step 7 and Step 8), move them

inward or outward to the appropriate points, then tighten them again.

14. Push in the slide buttons and slide the server all the way into the rack enclosure

(

FIGURE 3-12).

Short bracket

Slide

Long bracket
