Chapter 3 Mounting the Server Into a 4-Post Rack 25

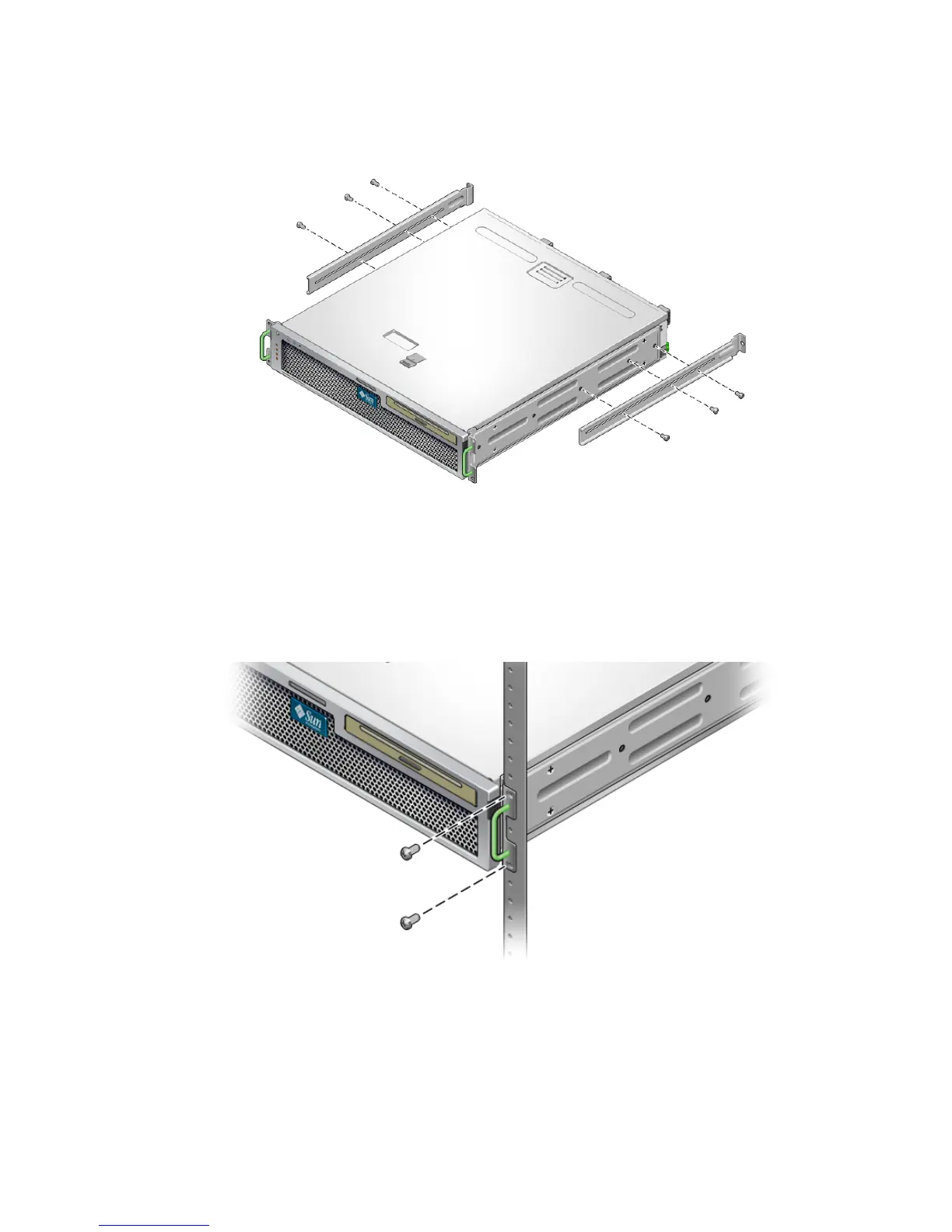

FIGURE 3-3 Attaching the Rear Mount Support Brackets

6. Lift the server to the desired location in the rack.

7. Using two screws per side, secure the front of the hardmount brackets attached to

the sides of the server to the front of the rack (

FIGURE 3-4).

FIGURE 3-4 Securing the Front of the Server to the Rack

8. Get the two rear mount flanges from the rack kit (FIGURE 3-1).

9. Using two screws for each rear mount support bracket, secure the rear mount

support brackets to the rear of the rack (

FIGURE 3-5).
