32 Netra T2000 Server Installation Guide • September 2006

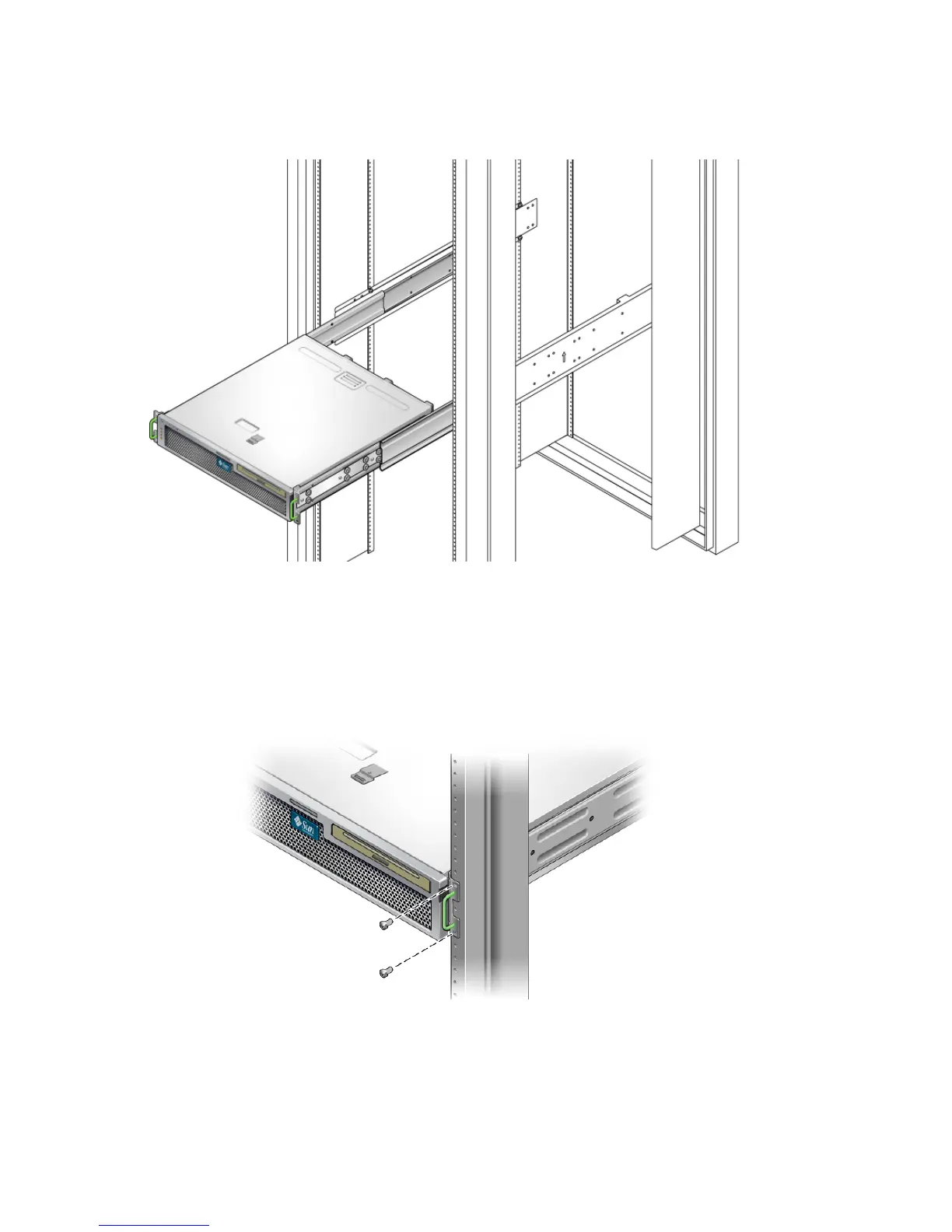

FIGURE 3-12 Sliding the Server Into the Rack

15. Using two screws per side, secure the front of the hardmount brackets that are

attached to the sides of the server to the front of the rack (

FIGURE 3-13).

The size of the screws varies, depending on your particular rack.

FIGURE 3-13 Securing the Front of the Server to the Rack
