28 Netra T2000 Server Installation Guide • September 2006
1. Get the hardmount brackets and M5 × 8 mm flathead Phillips screws from the
standard rack kit (
FIGURE 3-1).
These hardmount brackets and screws are shipped with the standard server ship kit,
not as part of the sliding rail 19-inch 4-post rackmount ship kit.
2. Use four of the supplied M5 × 8 mm flathead Phillips screws to secure each of the
hardmount brackets to the sides of the server (
FIGURE 3-7).

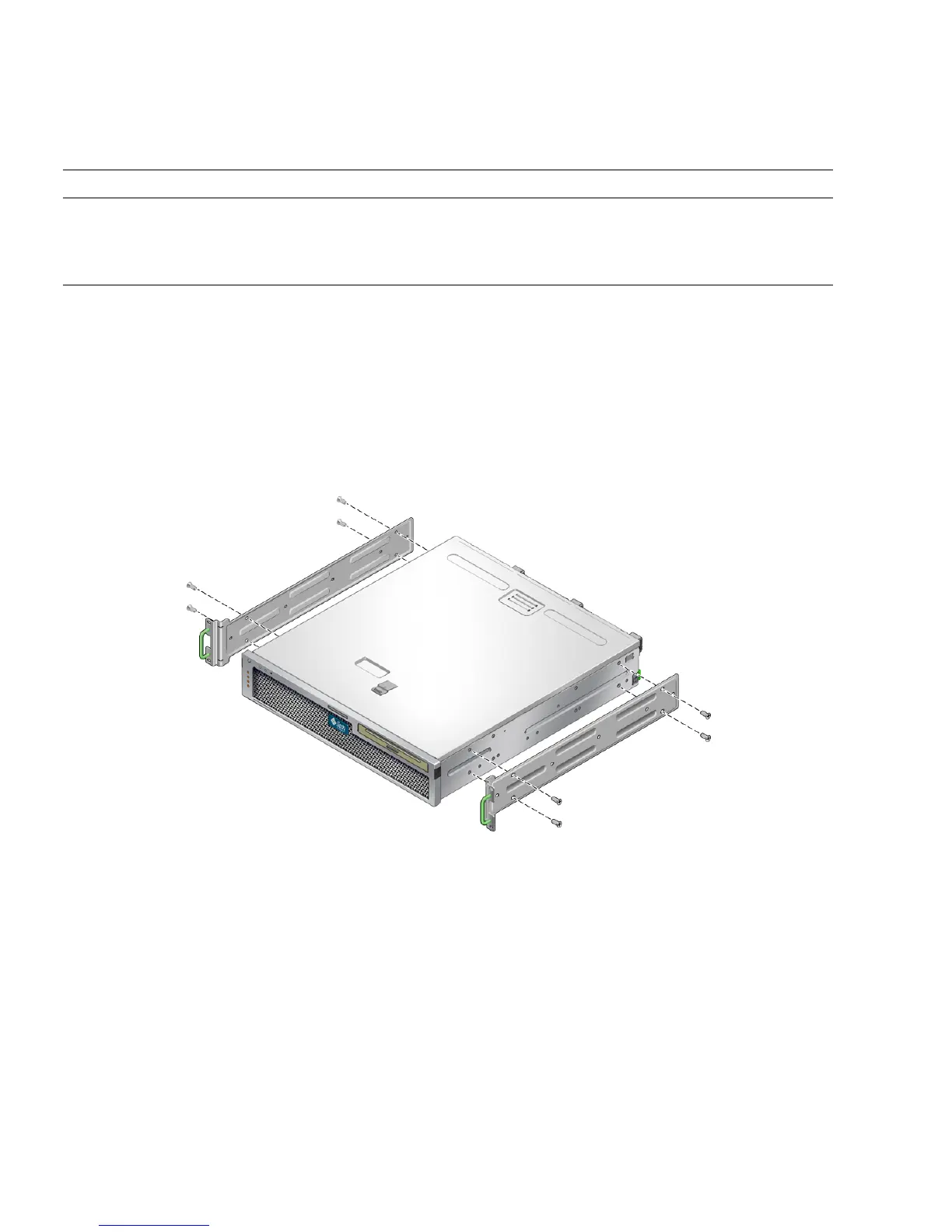

FIGURE 3-7 Securing the Hardmount Bracket to the Server
3. Get the Telco slide assemblies from the rack kit ( FIGURE 3-6).
4. Press in the button on each slide and pull the glide completely out of the slide
(
FIGURE 3-8).
10 10–32 collar screws 4 short, 4 long, 2 extra 8 for racks with 10-32 holes, if appropriate
12 10-32 x 0.5 in. combo head screws 12 for rack, if appropriate
12 12-24 x 0.5 in. combo head screws 12 for rack, if appropriate
TABLE 3-3 Sliding Rail 19-inch 4-Post Rackmount Screw Kit Contents (Continued)
Number Description Where Used
