62 Netra T2000 Server Installation Guide • September 2006
■ Two rear plates
■ Bag of screws
Note – The 19-inch 2-post rackmount kit supports rack web thicknesses (the width
of the rack post) of 76.20 mm (3 in.), 101.6 mm (4 in.), and 127 mm (5 in.).

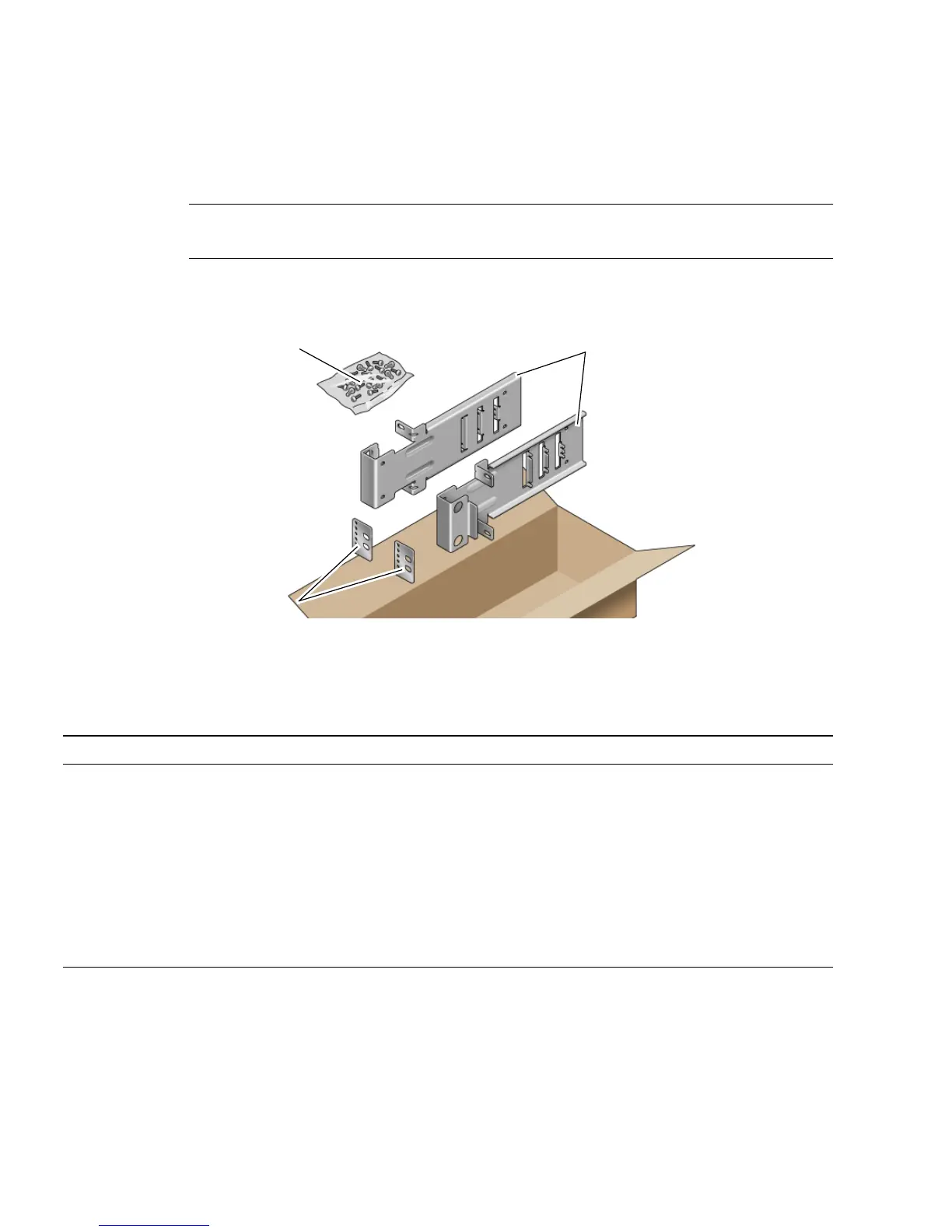

FIGURE 4-8 Contents of the Hardmount 19-Inch 2-Post Kit
1. Get the side brackets from the rack kit (FIGURE 4-8).
2. Using four of the M5 × 10 SEM screws for each side bracket, secure the side
brackets to the sides of the server (
FIGURE 4-9).
TABLE 4-3 Hardmount 19-Inch 2-Post Rackmount Screw Kit Contents
Number Description Where Used
10 M5 x 10 SEM screws 8 for side brackets, 2 extra
6 M3 x 8 SEM screws 4 for rear plates, 2 extra
10 M5 x 12.7 mm screws 10 for rack, if appropriate
10 M6 x 13 mm screws 10 for rack, if appropriate
9 M6 square clip nuts 9 for rack, if appropriate
12 10-32 x 0.5 in. combo head screws 12 for rack, if appropriate
12 12-24 x 0.5 in. combo head screws 12 for rack, if appropriate
Side brackets
Screws
Rear plates
