Chapter 3 Mounting the Server Into a 4-Post Rack 29

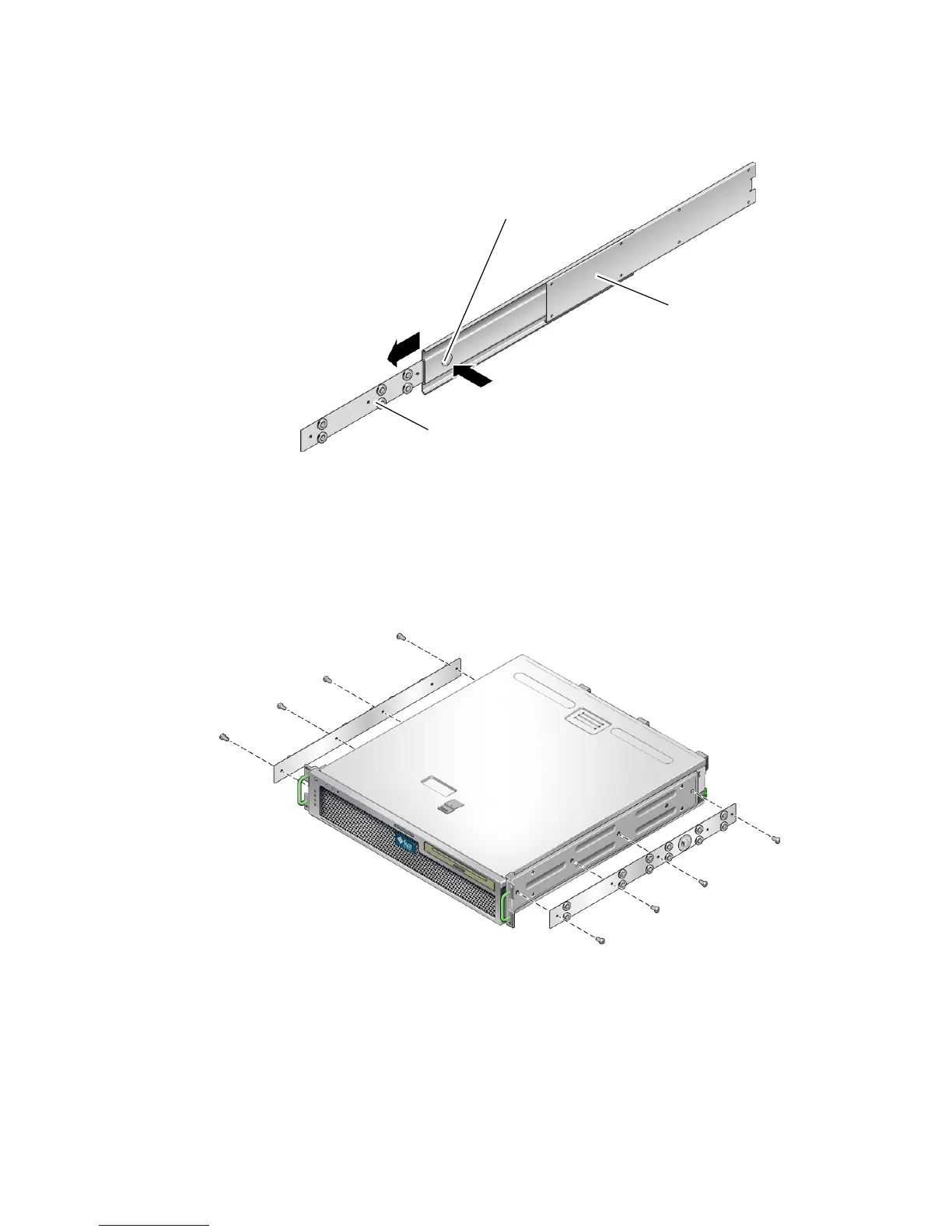

FIGURE 3-8 Dismantling the Slide

5. Using eight of the M4 × 0.5 × 5 mm panhead Phillips screws from the rackmount

kit (four for each side), screw each glide to the side of the server chassis

(

FIGURE 3-9).

FIGURE 3-9 Fixing the Glides to the Server Chassis

6. Get the short brackets and long brackets from the rackmount kit (FIGURE 3-6).

Button

Slide (in two parts)

Glide
