Netra T2000 Server Installation Guide
•
September 2006

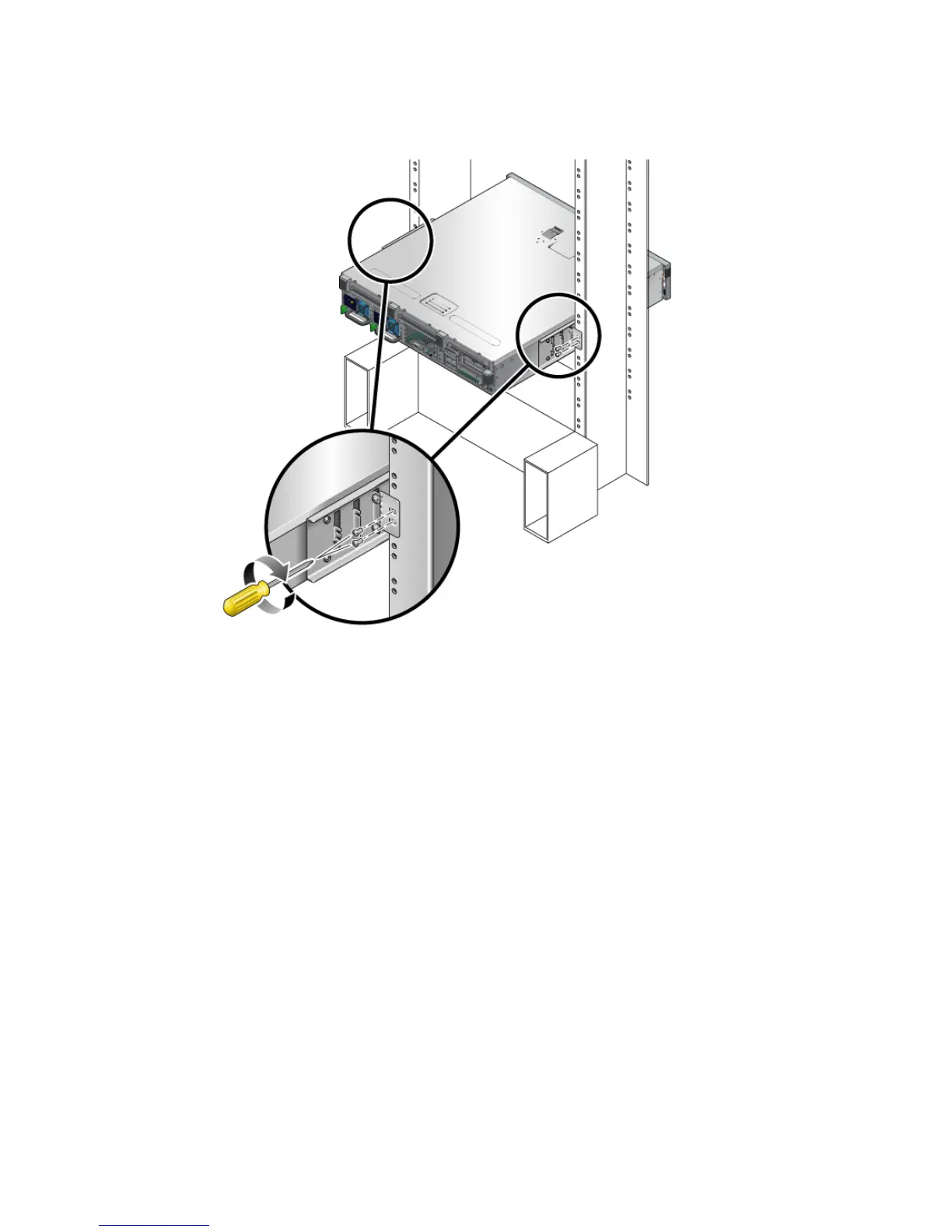

FIGURE
4-13
Securing
the
Rear
Plate
to
the
Rack
The
size
of
the
screws
varies,
depending
on
your
rack.
e.
Repeat
Step
a
through
Step
d
to
secure
the
rear
plate
on
the
other
post.
81
83
Table of Contents
Table of Contents
3
How this Document Is Organized
13
Typographic Conventions
14
Related Documentation
15
Sun Welcomes Your Comments
16
Server Views
17
FIGURE 1-1 Netra T2000 Server Front Panel
17
FIGURE 1-2 Netra T2000 Server Rear Panel
18
FIGURE 1-3 Netra T2000 Server
18
Server Features
19
TABLE 4 Server Features
19
Chip-Multitheaded Multicore Processor and Memory Technology
20
FIGURE 1-5 Ultrasparc T1 Multicore Processor Block Diagram
21
Performance Enhancements
21
Preinstalled Solaris Operating System
21
Preloaded Java Enterprise System Software
22
Hardware-Assisted Cryptography
23
Remote Server Management with ALOM
23
System Reliability, Availability, and Serviceability
24
Hot-Swappable Components
24
Power Supply Redundancy
25
Fan Redundancy
25
Environmental Monitoring
25
Error Correction and Parity Checking
26
Fault Management and Predictive Self-Healing
26
Rackmountable Enclosure
27
Tools Needed
29
Shipping Kit Inventory List
29
Installation Overview
30
Installing the Air Filter
32
FIGURE 2-1 Finger Holds on Bezel
32
Installing Optional Components
33
FIGURE 2-2 Installing the Air Filter in the Bezel
33
Slide Rail Assembly Notes
34
FIGURE 2-3 Sections of the Slide Rail Assembly
34
FIGURE 2-4 Locating the Locks on the Slide Rail Assembly
35
Safety Precautions
36
4-Post Rackmounting Options
38
Hardmounting the Server in a 19-Inch 4-Post Rack
38
To Install a Server with a Hardmount 19-Inch 4-Post Rack
38
TABLE 3-1 Optional Rackmount Kits
38
FIGURE 3-1 Contents of the Hardmount 19-Inch 4-Post Kit
39
TABLE 3-2 19-Inch 4-Post Rackmount Screw Kit Contents
39
FIGURE 3-2 Securing the Hardmount Brackets to the Server
40
FIGURE 3-3 Attaching the Rear Mount Support Brackets
41
FIGURE 3-4 Securing the Front of the Server to the Rack
41
Mounting the Server in a Sliding Rail Mount 19-Inch 4-Post Rack
42
FIGURE 3-5 Securing the Rear of the Server to the Rack
42
TABLE 3-3 Sliding Rail 19-Inch 4-Post Rackmount Screw Kit Contents
43
FIGURE 3-6 Contents of the Sliding Rail 19-Inch 4-Post Kit
43
FIGURE 3-7 Securing the Hardmount Bracket to the Server
44
FIGURE 3-8 Dismantling the Slide
45
FIGURE 3-9 Fixing the Glides to the Server Chassis
45
FIGURE 3-10 Securing the Brackets to the Rack
46
FIGURE 3-11 Securing the Slide to the Brackets
47
FIGURE 3-13 Securing the Front of the Server to the Rack
48
FIGURE 3-12 Sliding the Server into the Rack
48
Hardmounting the Server in a 600-MM 4-Post Rack
49
To Install a Server with a Hardmount in a 600-MM 4-Post Rack
49
FIGURE 3-14 Contents of the Hardmount 600-MM 4-Post Kit
50
TABLE 3-4 Hardmount 600 MM 4-Post Rackmount Screw Kit Contents
50
FIGURE 3-15 Adjustable Rail Screws
51
FIGURE 3-16 Securing the Front of the Adjustable Rails to the Rack
52
FIGURE 3-17 Securing the Rear of the Adjustable Rails to the Rack
53
FIGURE 3-18 Installing the Rear Flange Onto the Adjustable Rail
54
FIGURE 3-19 Securing the Side Rails to the Server
55
FIGURE 3-20 Sliding the Server Onto the Adjustable Rails
55
FIGURE 3-21 Securing the Rear of the Server to the Rear Flanges
56
Installing a Server with a Hardmount in a 19-Inch 4-Post Rack for Use with the Cable Management Assembly
57
FIGURE 3-22 Securing the Front of the Server to the Front of the Rack
57
FIGURE 3-23 Unlocking the Slide Rail Assembly
58
To Install the Slide Rail Assemblies
58
FIGURE 3-24 Location of the Mounting Bracket Release Button
59
FIGURE 3-25 Unlocking the Slide Rail Middle Section
59
FIGURE 3-26 Attaching a Mounting Bracket to the Chassis
60
FIGURE 3-27 Mounting a Slide Rail
61
FIGURE 3-28 Adjusting the Distance between the Slide Rails
62
FIGURE 3-29 Mounting the Chassis on the Slide Rails
63
To Install the Cable Management Assembly
63
FIGURE 3-30 Inserting the CMA Rail Extension into the Rear of the Left Slide Rail
64
FIGURE 3-31 Mounting the Inner CMA Connector
65
FIGURE 3-32 Attaching the Outer CMA Connector
65
FIGURE 3-33 Mounting the Left Side of the Rail
66
To Verify the Operation of the Slide Rails and the CMA
66
FIGURE 3-34 Unlocking the Slide Rail Assembly
67
FIGURE 3-35 Unlocking the Slide Rail Lever Stops
68
FIGURE 3-36 Slide Rail Release Button
68
2-Post Rackmounting Options
72
Hardmounting the Server in a 23-Inch 2-Post Rack
72
To Install a Server with a Hardmount in a 23-Inch 2-Post Rack
72
TABLE 4-1 Optional Rackmount Kits
72
FIGURE 4-1 Contents of the Hardmount 23-Inch 2-Post Kit
73
TABLE 4-2 Hardmount 23-Inch 2-Post Rackmount Screw Kit Contents
73
FIGURE 4-2 Securing the Side Brackets to the Side of the Server
74
FIGURE 4-3 Installing the Rail Guides in the Rack
74
FIGURE 4-4 Installing and Securing the Server in the 2-Post Rack
75
FIGURE 4-5 Installing a Screw on the Middle Rack Position on the Rear Plate
76
Hardmounting the Server in a 19-Inch 2-Post Rack
77
To Install a Server with a Hardmount in a 19-Inch 2-Post Rack
77
FIGURE 4-7 Securing the Rear Plate to the Back of the Post
77
FIGURE 4-8 Contents of the Hardmount 19-Inch 2-Post Kit
78
TABLE 4-3 Hardmount 19-Inch 2-Post Rackmount Screw Kit Contents
78
FIGURE 4-9 Securing the Side Brackets to the Side of the Server
79
FIGURE 4-10 Installing and Securing the Server in the 2-Post Rack
79
FIGURE 4-11 Installing Screws on the Optimum Rack Position on the Rear Plate
80
FIGURE 4-12 Installing the Rear Plate to the Side Bracket
81
FIGURE 4-13 Securing the Rear Plate to the Rack
82
Data Ports and Cabling Notes
83
Port Locations
83
Cabling Notes
84
FIGURE 5-1 Rear Panel Features
84
Connecting Cables
85
To Connect the Ethernet Network Cables
85
To Connect the SC Serial Management Port
86
FIGURE 5-2 Ethernet Network Connections
86
To Connect the SC Network Management Port
87
FIGURE 5-3 System Controller Serial Connection
87
Input Power Cables
88
TTYA Serial Port
88
FIGURE 5-4 System Controller Network Connection
88
USB Ports
89
FIGURE 5-5 Serial Port
89
Alarm Port
90
FIGURE 5-6 USB Ports
90
FIGURE 5-7 Alarm Port
90
Managing Cables with the CMA
91
To Open and Close a Cable Clip
91
FIGURE 5-8 Opening a Cable Clip
91
FIGURE 5-9 Removing a Cable Clip
92
FIGURE 5-10 Mounting or Moving a Cable Clip
92
Powering on the Server for the First Time
93
FIGURE 6-1 Rear Panel Power Connectors
94
To Power on the Server for the First Time
94
Enabling the System Controller Network Management Port
96
Logging into the System Controller
96
To Log into the System Controller Using the Serial Management Port
96
To Configure the System Controller Network Management Port
97
TABLE 6-1 Sample Configuration Parameter Setting
99
To Reset the System Controller
100
To Log into the System Controller Using the Network Management Port
101
Using the System Controller for Common Operations
102
To Power on the Server
102
To Connect to the System Console
103
To Perform a Normal Server Initialization
103
TABLE 6-2 Map of Devices, Openboot Path Names, and Locations
104
Booting the Solaris Operating System
105
To Boot the Solaris Operating System
105
To Reset the Server
106
To Power Cycle the Server
106
TABLE A-1 Server Software Configuration Worksheet
