72 Netra T2000 Server Installation Guide • September 2006

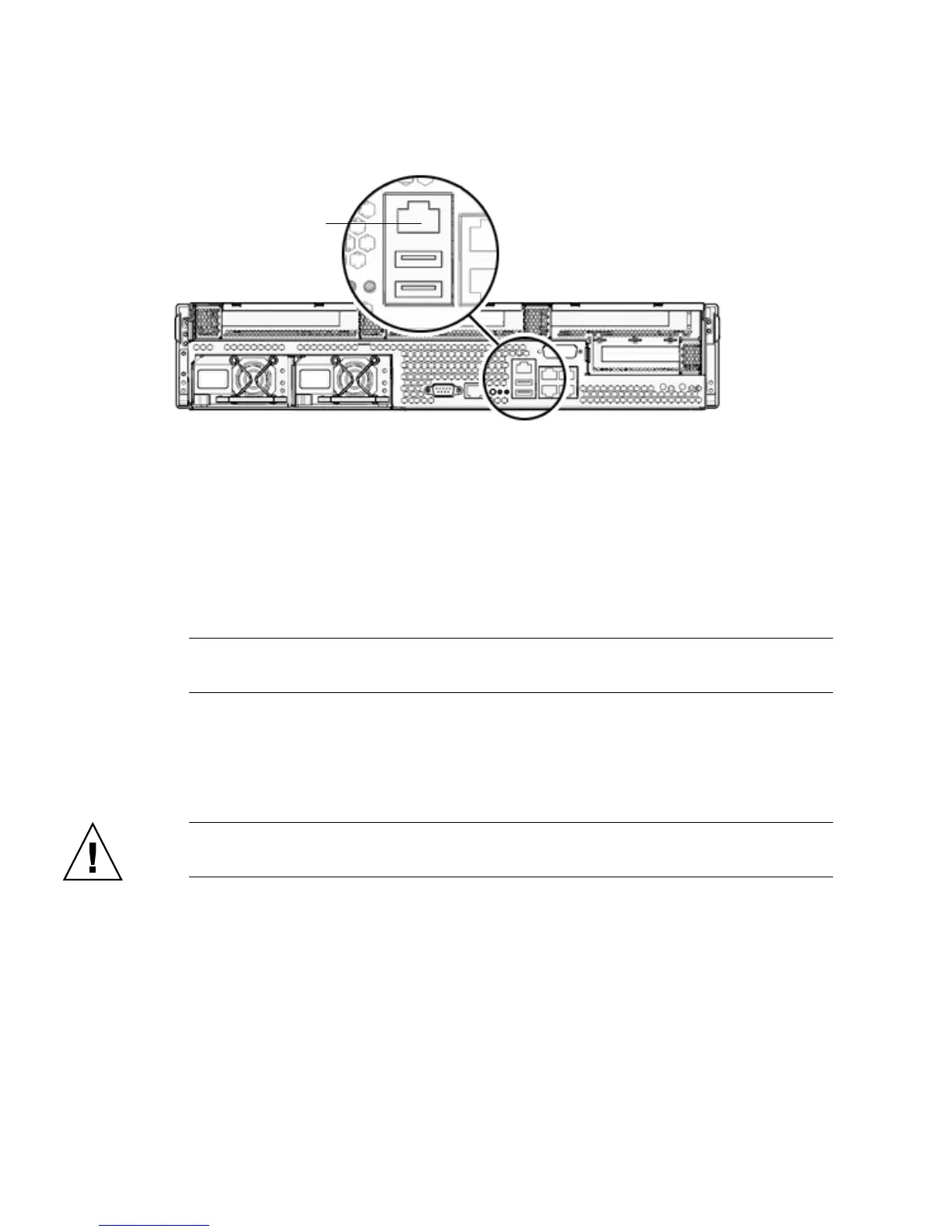

FIGURE 5-4 System Controller Network Connection
● Connect a Category 5 cable from your network switch or hub to the Network
Management Port.
Input Power Cables
Note – Finish the hardware procedures in this chapter, but do not attach the input
power cables yet.
Powering on the server for the first time requires special preparation and
procedures. For example, if you have not prepared a display before connecting the
input power cables, system messages might be lost. You are instructed to connect the
server to input power in “Powering On the Server for the First Time” on page 77.
Caution – The server goes into Standby mode and the system controller initializes
as soon as the input power cables are connected to the power source.
TTYA Serial Port
The TTYA serial port connector uses a DB-9 connector (item 1 in FIGURE 5-5). Use this
port for general-purpose serial data transfers. This port is not connected to the SC
serial management port.
NET MGT
