Chapter 3 Mounting the Server Into a 4-Post Rack 49

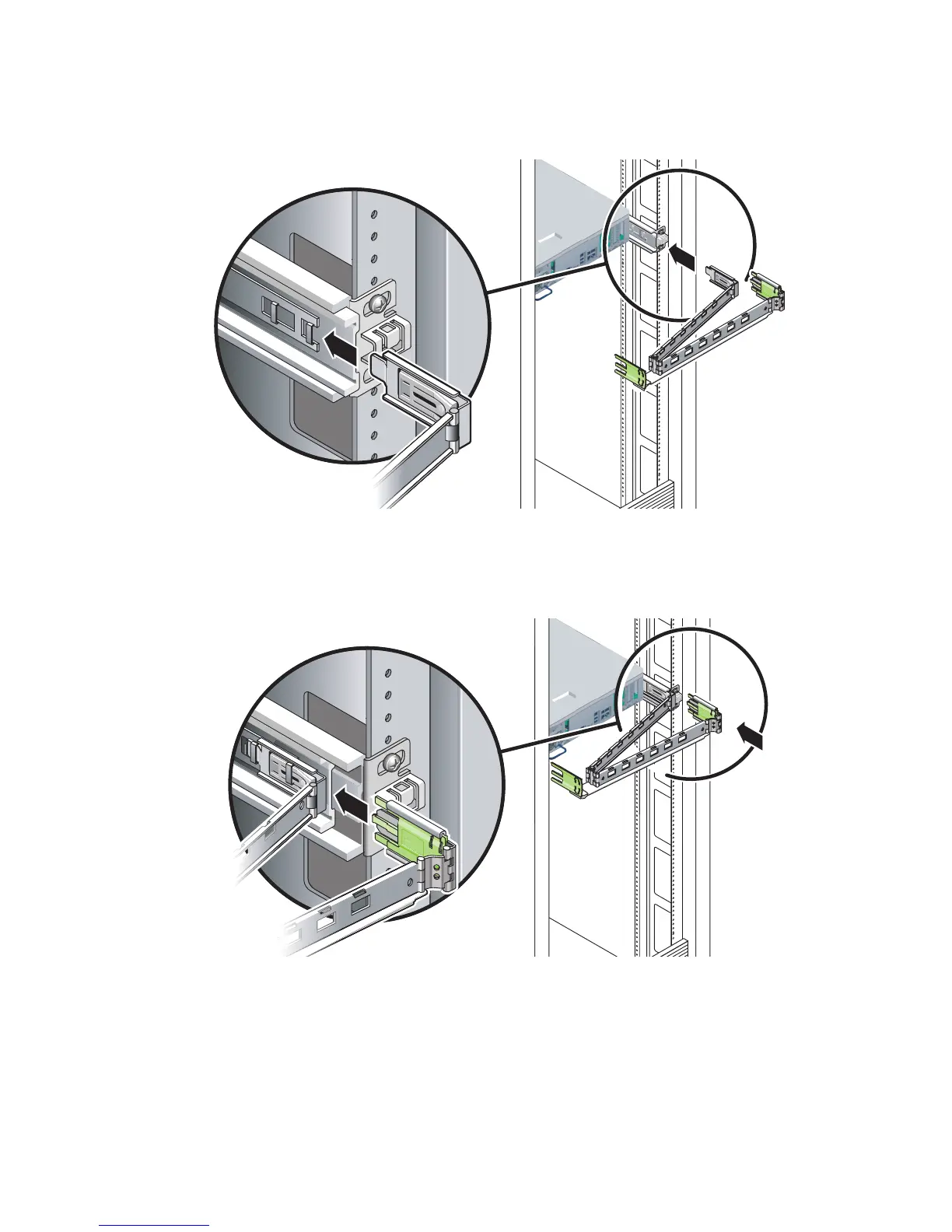

FIGURE 3-31 Mounting the Inner CMA Connector
3. Insert the larger extension into the end of the right rail (FIGURE 3-32).
FIGURE 3-32 Attaching the Outer CMA Connector
