Chapter 4 Mounting the Server Into a 2-Post Rack 61

c. Tighten the screw to secure the rear plate to the eyelet on the side bracket

(

FIGURE 4-6).

d. Using two screws, secure the other side of the rear plate to the back of the post

(

FIGURE 4-7).

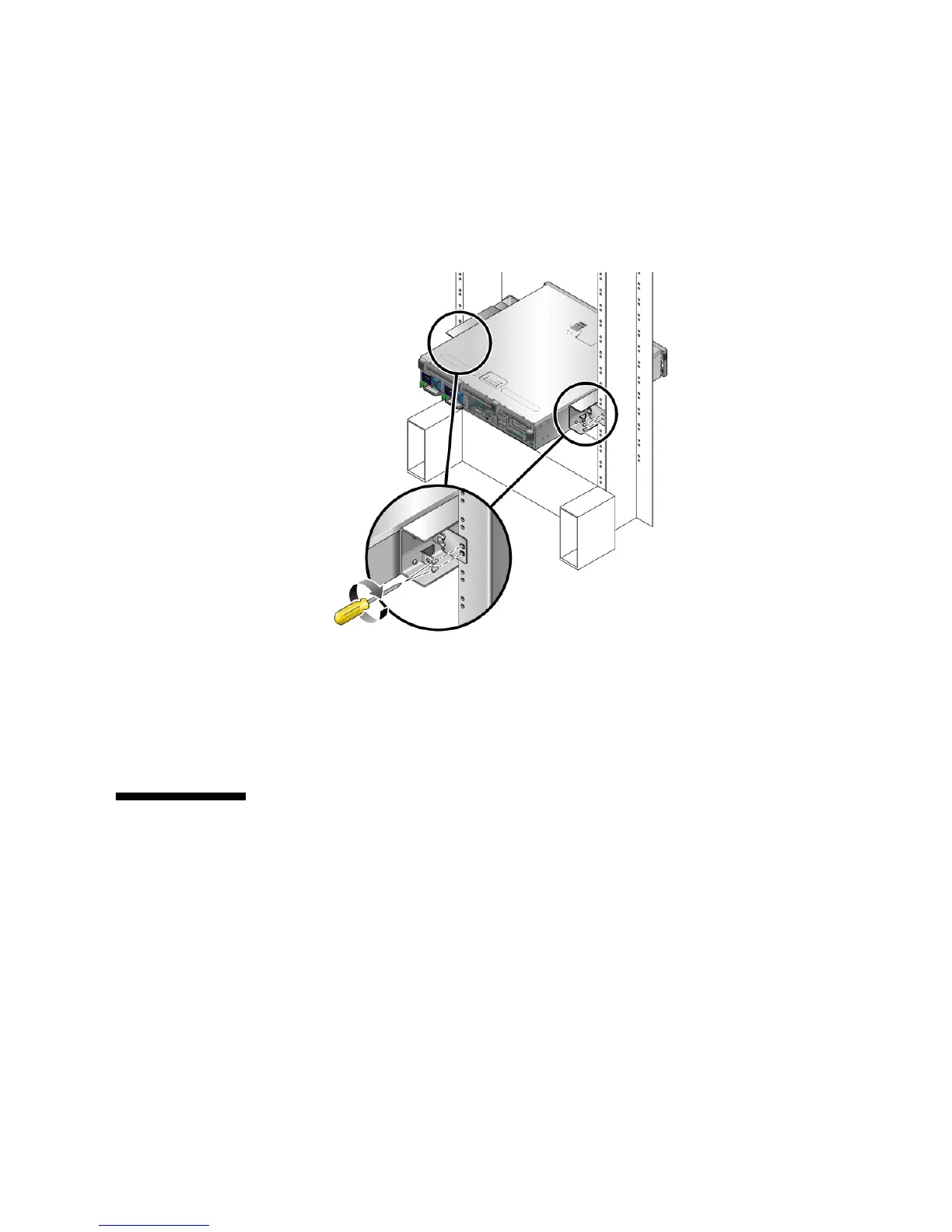

FIGURE 4-7 Securing the Rear Plate to the Back of the Post

The size of the screws varies, depending on your rack.

e. Repeat Step a through Step d to secure the rear plate on the other post.

Hardmounting the Server in a 19-Inch 2-

Post Rack

▼ To Install a Server With a Hardmount in a 19-

Inch 2-Post Rack

The hardmount kit for a 19-inch 2-post rack consists of:

■ Two side brackets
