Chapter 5 Cabling the Server 75

Managing Cables With the CMA

▼ To Open and Close a Cable Clip

1. To open a cable clip, press the front of the cable clip and lift the hinged top.

2. Route cables through the clip, then press the top of the cable clip to lock.

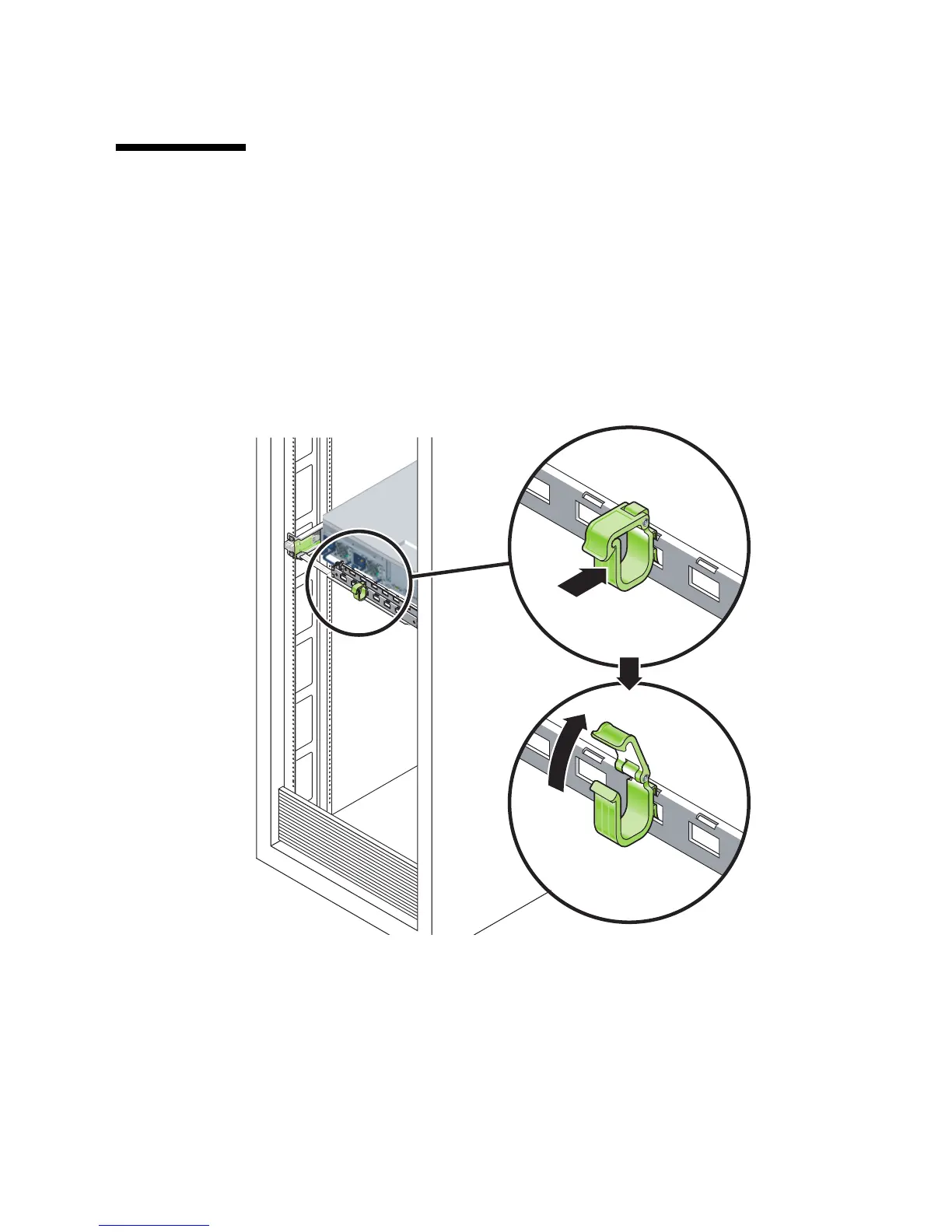

FIGURE 5-8 Opening a Cable Clip
