76 Netra T2000 Server Installation Guide • September 2006

▼ To Move a Cable Clip

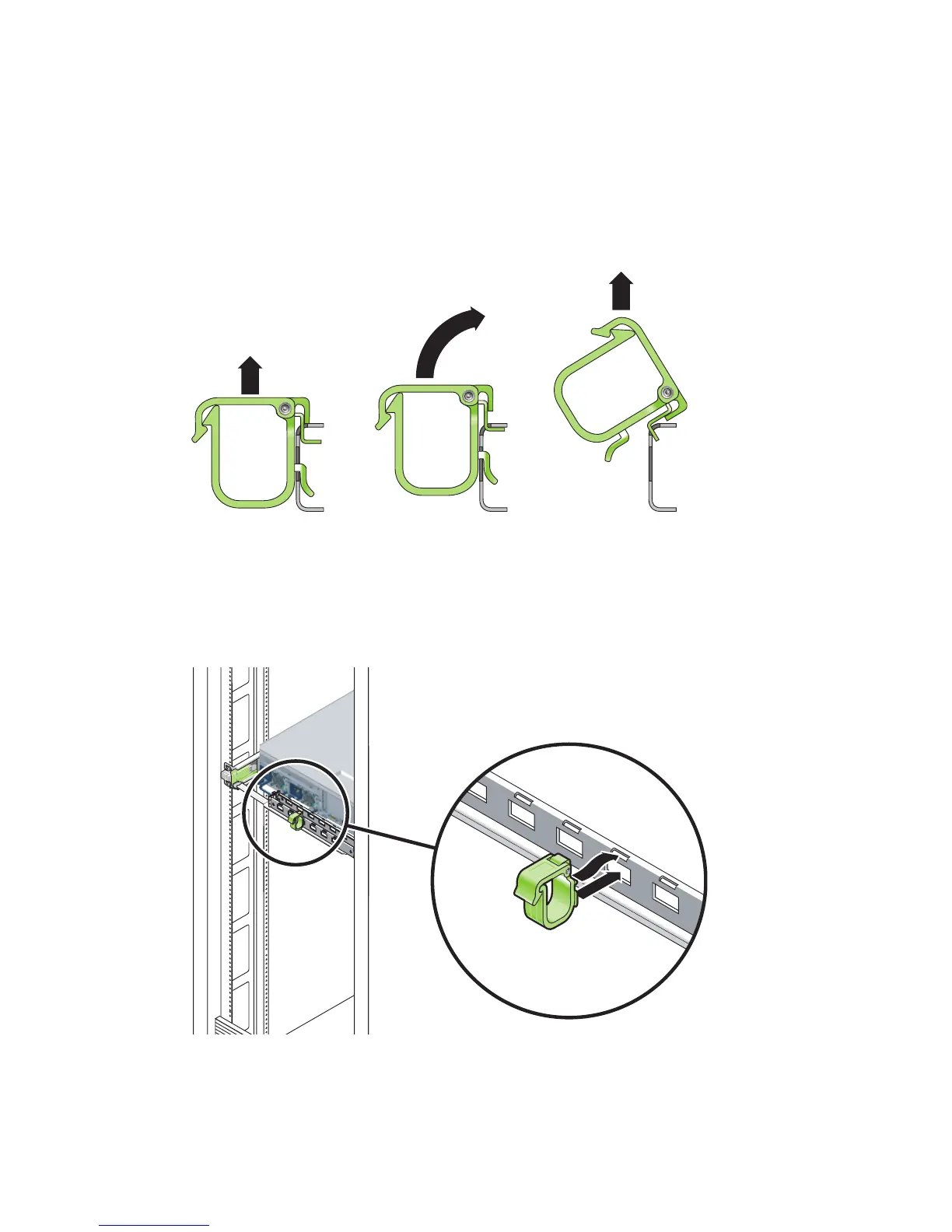

1. To remove a cable clip from the CMA arm, lift the cable clip approximately 3/8 in.

(10 mm) to free the lower clip lock, then rotate the entire clip about 90 degrees to

free the upper clip lock.

FIGURE 5-9 Removing a Cable Clip

2. To insert a cable clip, position the upper and lower clip locks in the slots of the

CMA arm, then press the clip down approximately 3/8 in. (10 mm).

FIGURE 5-10 Mounting or Moving a Cable Clip
