Chapter 3 Mounting the Server Into a 4-Post Rack 39

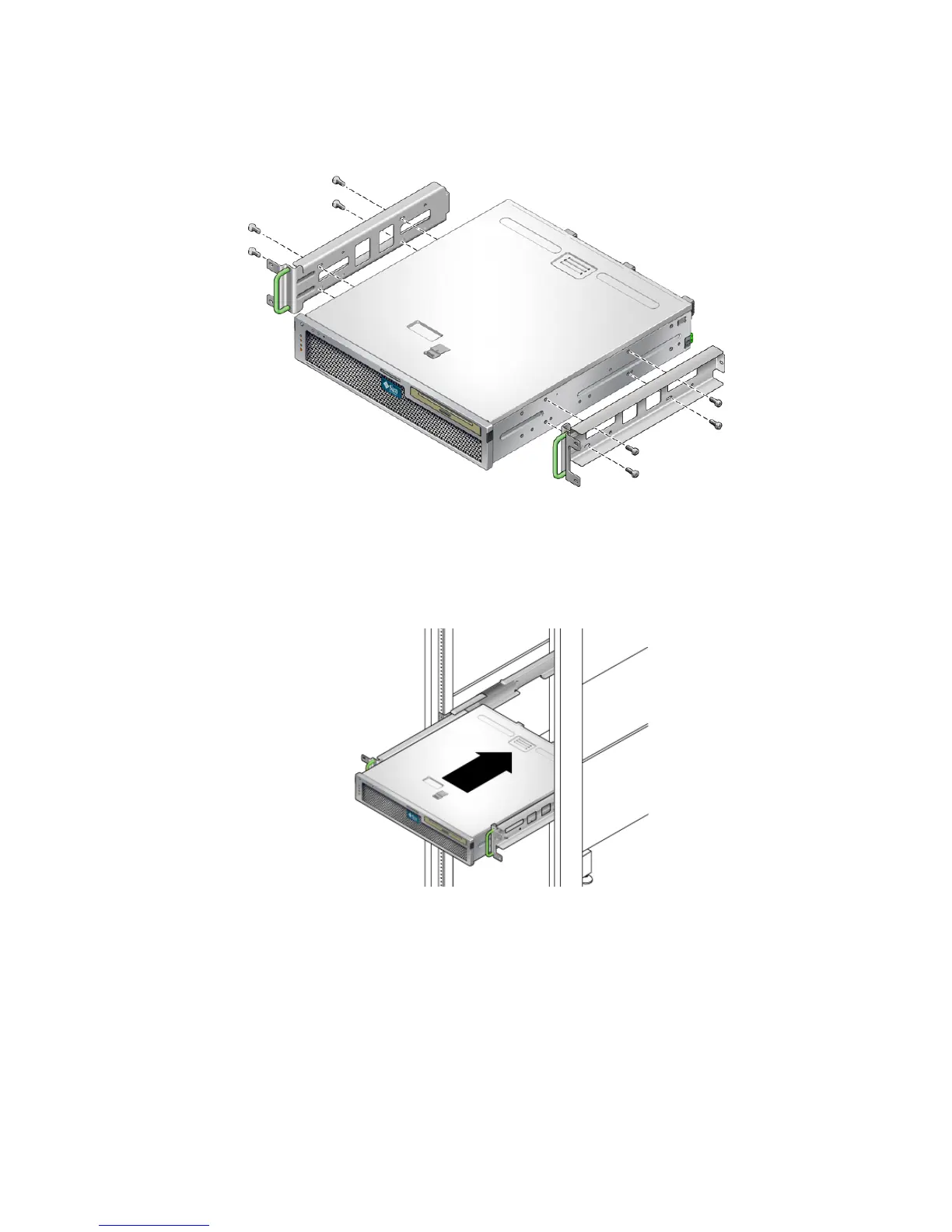

FIGURE 3-19 Securing the Side Rails to the Server
11. Lift the server into the rack and slide the server onto the adjustable rails
(
FIGURE 3-20).
FIGURE 3-20 Sliding the Server Onto the Adjustable Rails
12. Push the server to the desired depth in the rack, then go to the rear of the server
and push the rear flanges flush against the back of the server (
FIGURE 3-18).
If the rack is especially shallow, you can flip the rear flanges around so that they rest
flush against the rear of the server.
13. Lift the server out of the rack.
