Chapter 5 Cabling the Server 73

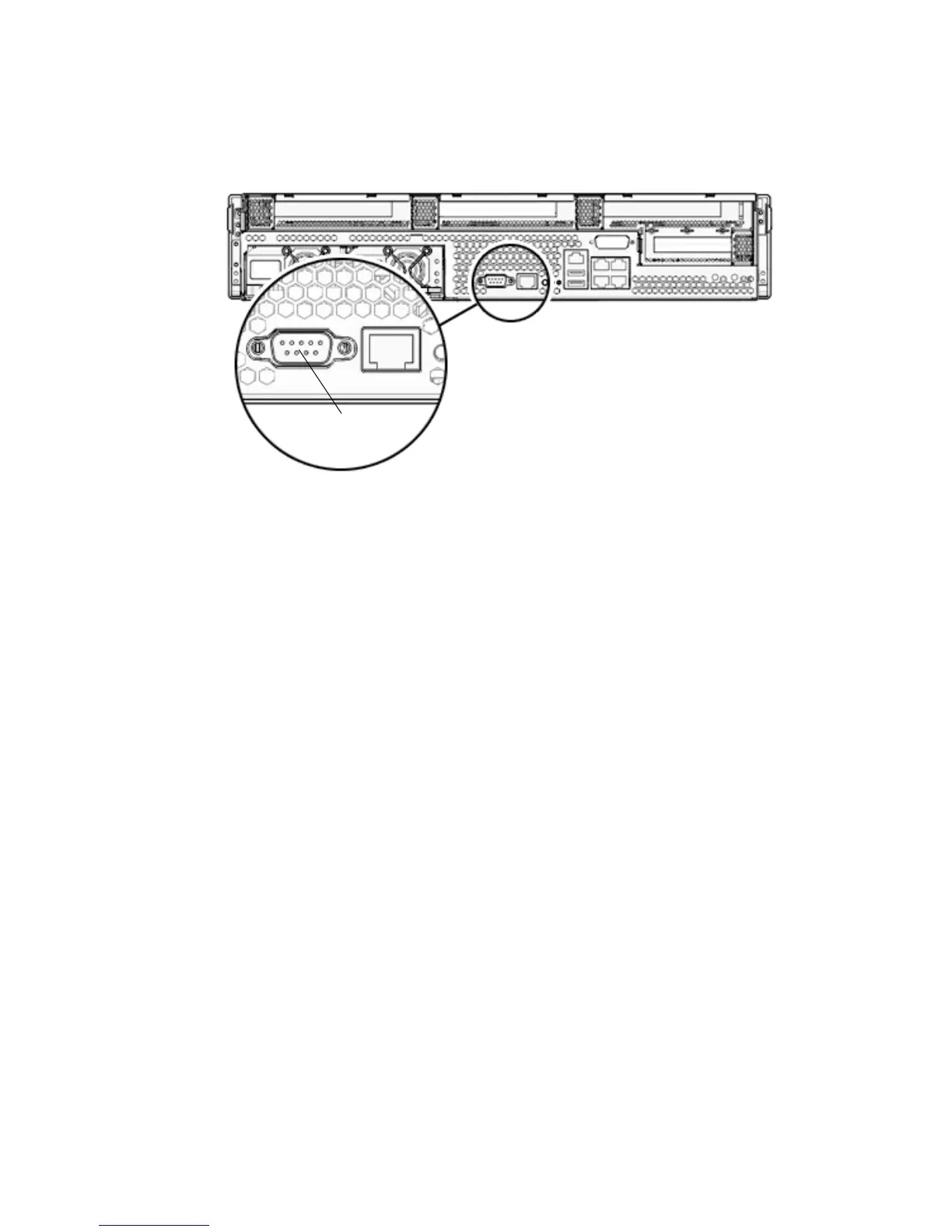

FIGURE 5-5 Serial Port

Use a null modem cable or an adapter to perform the crossovers given for each

connector.

■ If connecting to a serial port on a personal computer, use Sun adapter part

number 530-3100-01.

■ If connecting to a Sun workstation or server, use Sun adapter part number 530-

2889-03.

USB Ports

Two Universal Serial Bus (USB) ports are provided on the server. USB ports 0 and 1

are located on the rear of the chassis (

FIGURE 5-6).

Serial port (TTYA)
