Chapter 3 Mounting the Server Into a 4-Post Rack 51

1. For a cabinet or a free-standing rack, deploy the antitilt bar.

2. Unlock the slide lock buttons (

FIGURE 3-34) at the right and lefts sides of the server

chassis, and slowly pull the server out of the rack until the slide rails reach their

stops.

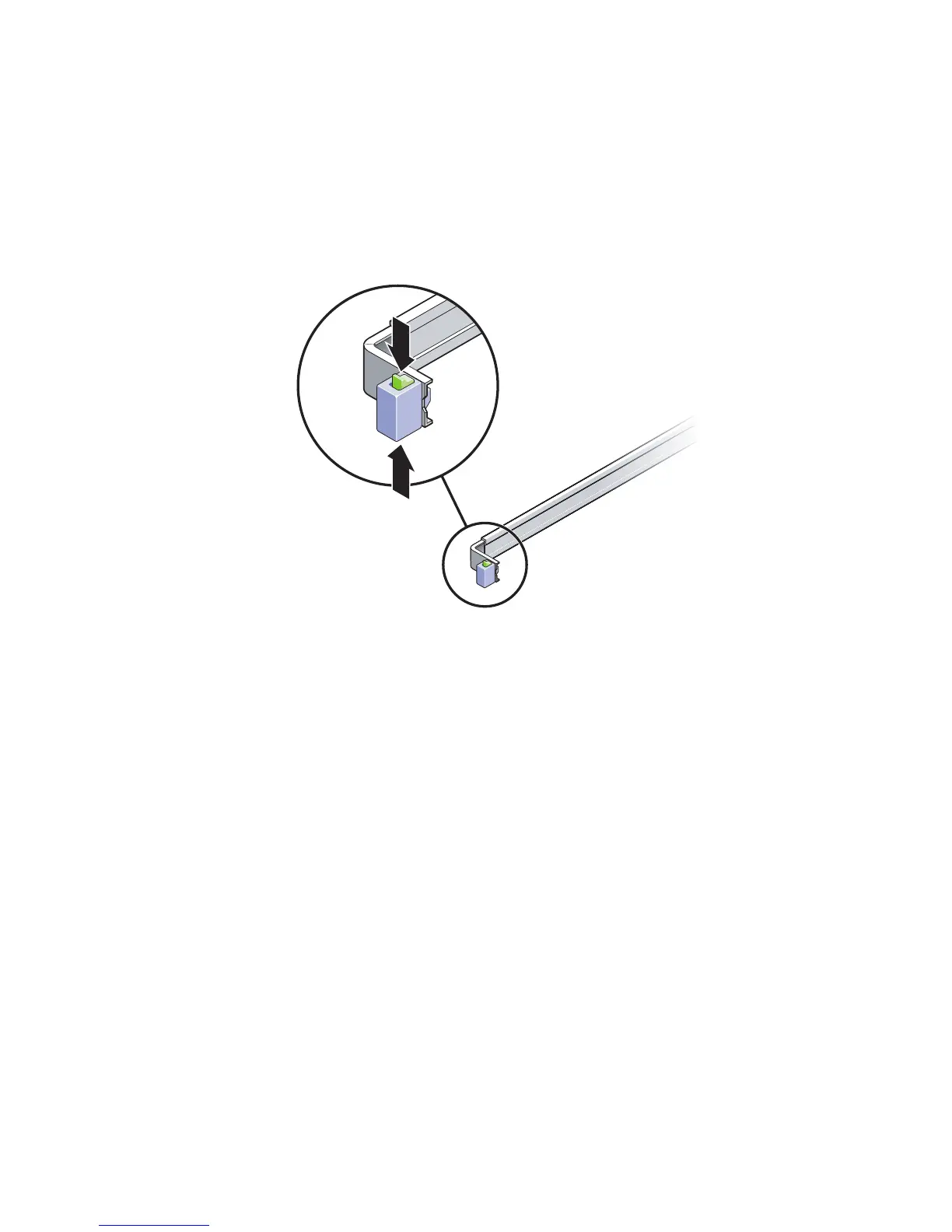

FIGURE 3-34 Unlocking the Slide Rail Assembly

3. Inspect the attached cables for any binding or kinks.

4. Verify that the CMA extends fully and does not bind in the slide rails.

5. When the server is fully extended out, release the slide rail lever stops

(

FIGURE 3-35).

6. Push both levers simultaneously and slide the server back into the rack.
