50 Netra T2000 Server Installation Guide • September 2006

4. Insert the hinged plastic connector at the left side of the CMA fully into the CMA

rail extension (

FIGURE 3-33).

The plastic tab on the CMA rail extension locks the hinged plastic connector in

place.

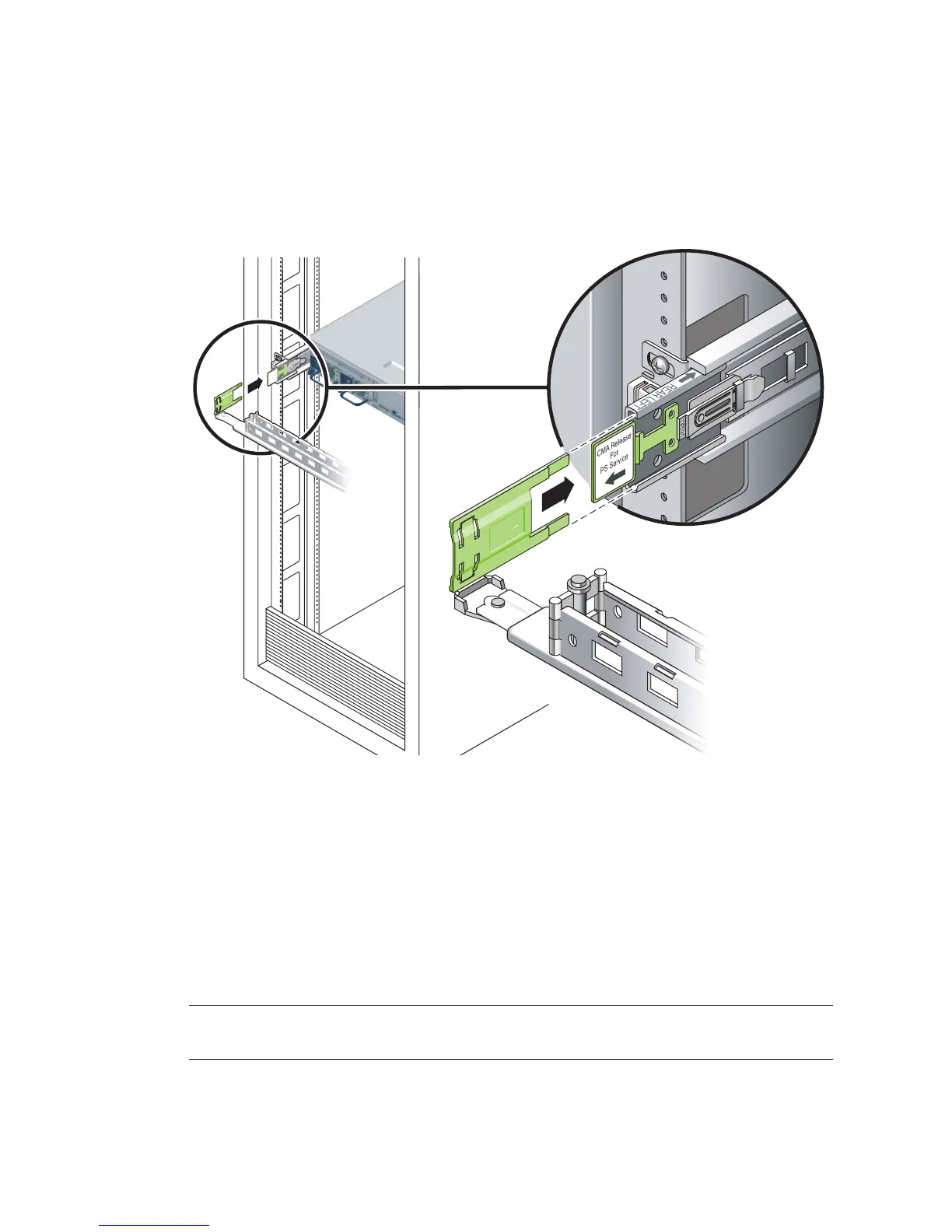

FIGURE 3-33 Mounting the Left Side of the Rail

▼ To Verify the Operation of the Slide Rails and

the CMA

If you are using the CMA on a rack kit with slide rails, follow these steps to ensure

that the CMA will not interfere with the ability to move the rack. You must first

connect cables to the server.

Tip – Two people are needed for this procedure, one to move the server in and out

of the rack, and one to observe the cables and CMA.
