36 Netra T2000 Server Installation Guide • September 2006

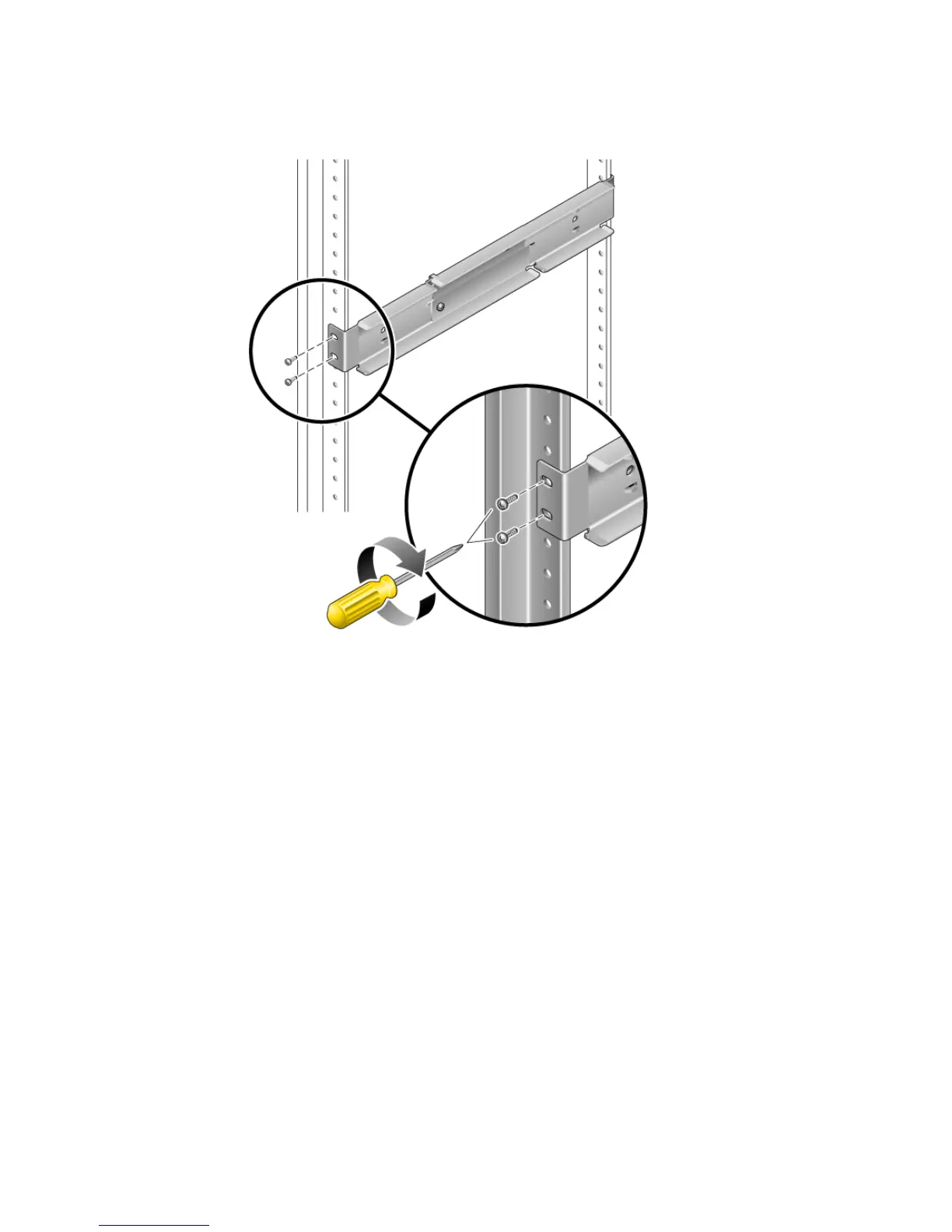

FIGURE 3-16 Securing the Front of the Adjustable Rails to the Rack

The size of the screws varies, depending on your particular rack.

4. At the rear of the rack, use two screws to secure the rear of the adjustable rails to

the rack (

FIGURE 3-17).

The size of the screws varies, depending on your particular rack.
