SV 971A User Manual – Appendixes

246

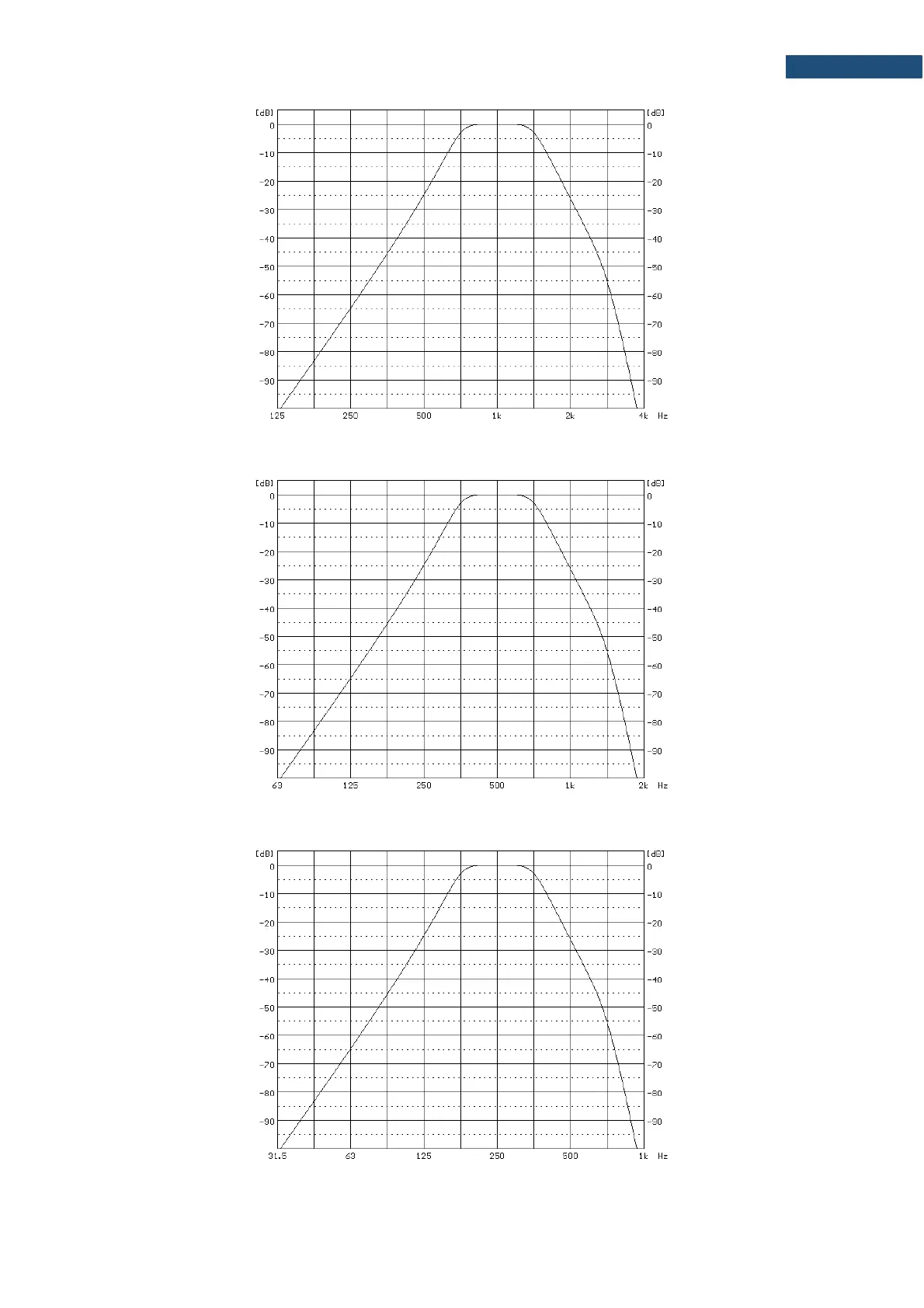

1.0 kHz 1/1 octave filter

500 Hz 1/1 octave filter

250 Hz 1/1 octave filter
