For each plot, the list displays the item number for the Workspace containing
the plot, the X and Y parameters and the gate.
To add a plot to the report, select the check box next to this plot. During a
session of using the same Playlist when rerunning the Wizard, previously
checked plots will be remembered. Changing the Playlist or closing the
software loses these settings.
The page contains the following options:
Plot Order: Plots appear in the report in the order they appear in the plot
list. To change the order, click the up/down arrows to move selected
plots up and down in the list. To reset the plot order, use the Reset
button.
Plot Selection: Click the Select All or Select None buttons to select or
deselect all plots. To display only the plots which you have selected for
the report, select the "Show only selected plots" check box.
Next: Click the button to proceed to the Statistics Layout page.

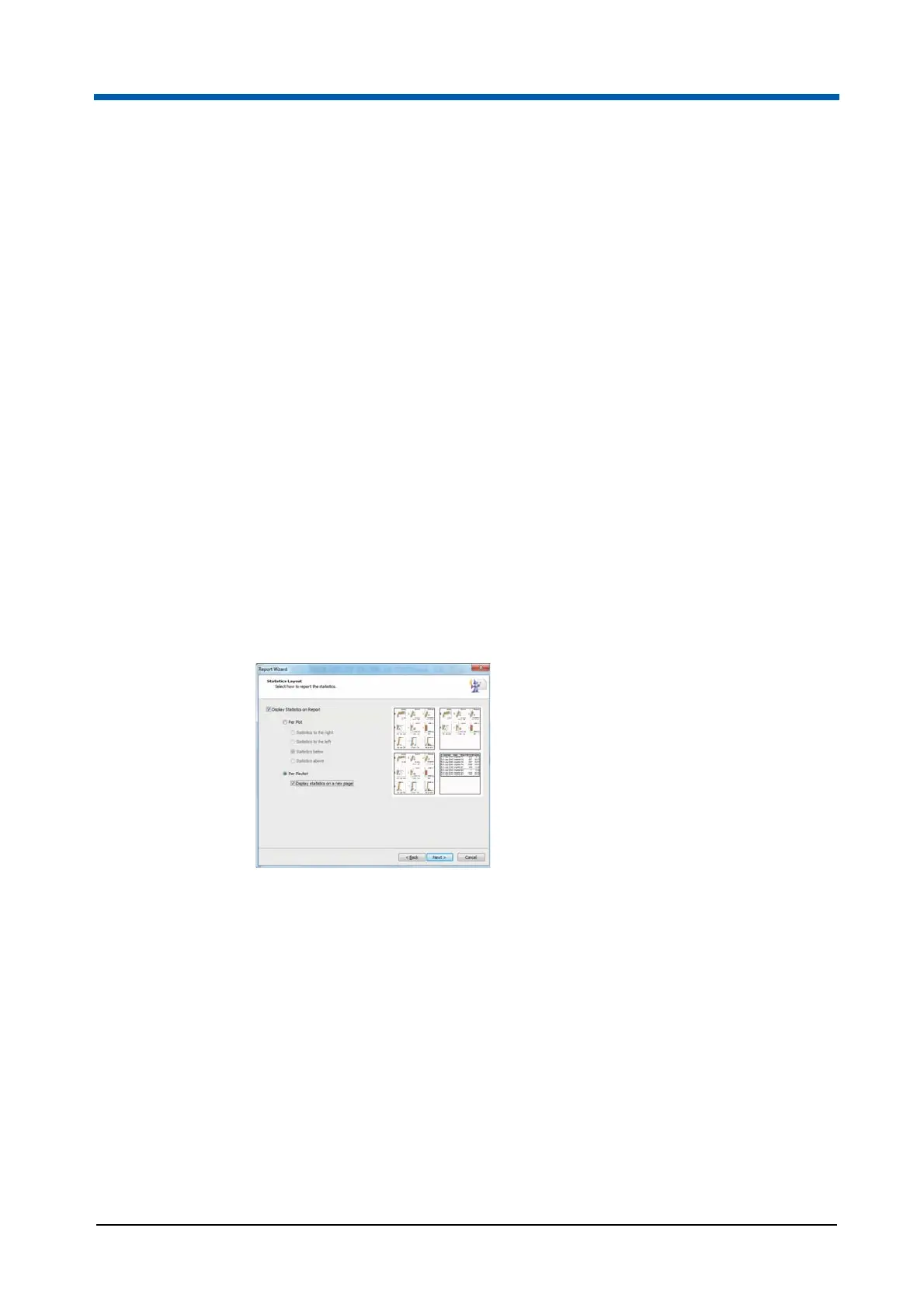

Report Wizard: Statistics Layout page
The Statistics Layout page enables you to select the required statistics for
the report and their layout on the report. A preview of the layout of the
statistics on the page is displayed.
The page contains the following options:
Display Statistics on Report: Select the check box to display statistics
on the generated report.
Per Plot: Select the option to display the statistics next to the associated
plot. Select the desired position for the display of statistics (to the right, to
the left, below or above the plot).
Per Playlist: Select the option if you would like all statistics displayed
together at the end of the Playlist report. To start statistics on a new page
of the report, select the "Display statistics on a new page" check box.
Next: Click the button to proceed to the next page of the Wizard.
