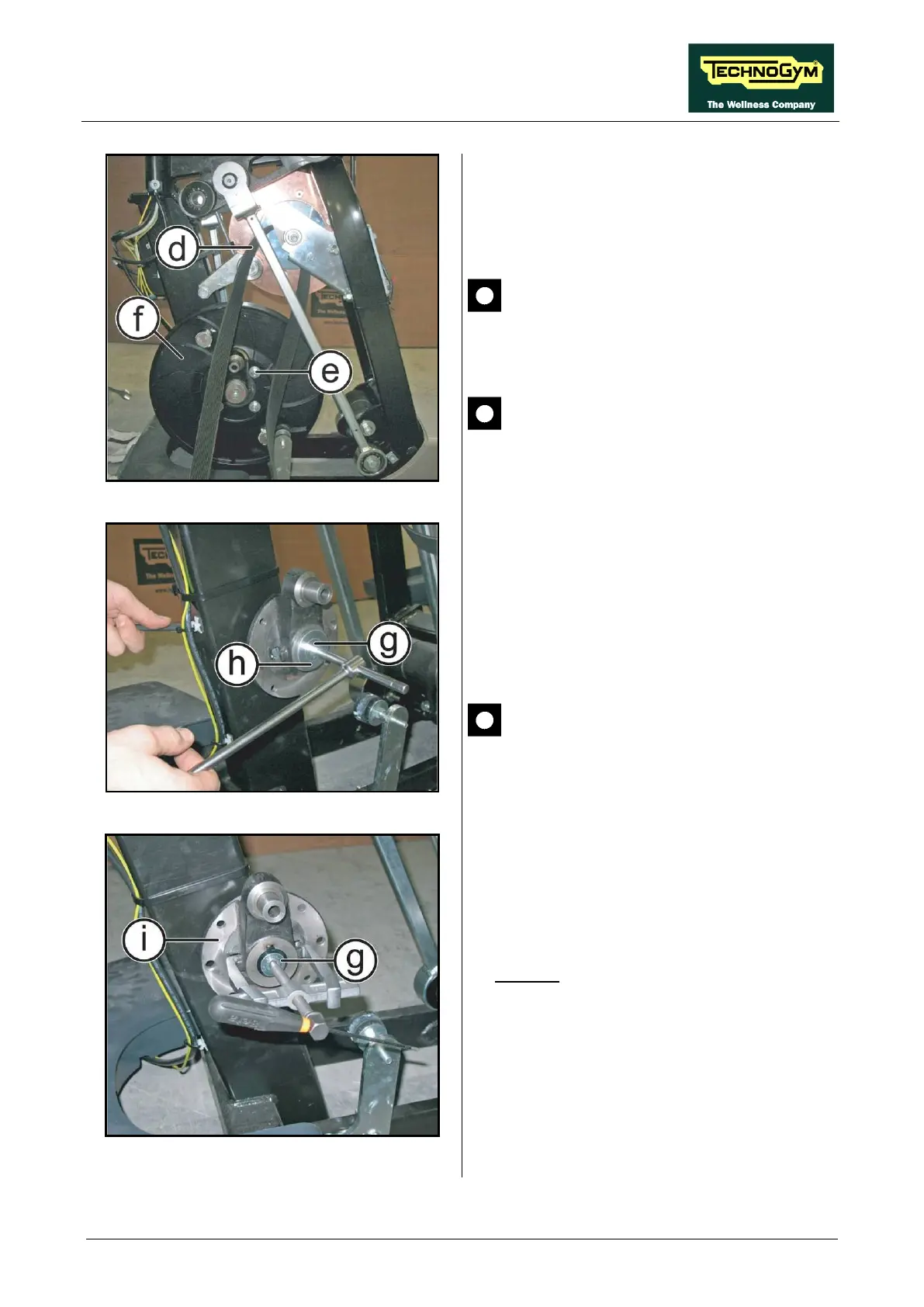

Figure 7.13-3
4. Remove the belt (d) from the pulley.
5. Back off the 4 screws (e)
using a 13mm
wrench, blocking the counter-
nut on the
opposite side with a wrench of equal size.
CAUTION: During the reassembly
lock down the screw (e) using a torque
wrench set for 22Nm.
CAUTION: After the reassembly of
belt, carry out the operation described
at the paragraph: 8.1. “
Centring the
belt” and 8.2. “Tensioning the belt”.
Figure 7.13-4
6. Back off the screw (g) using an 8mm
hexagonal wrench and simultaneously the
screw on the opposite side, using a wrench of
equal size.
7. Remove the washer (h).
CAUTION: During the reassembly
lock down the screw (g) using a torque
wrench set for 62Nm.
Figure 7.13-5
8.
Once removed the washer: screw a bolt
M12x30
again, if you don’t have one, use the
bolt (g) previously
removed taking care to
not damage it.
9. Remove the crank (i) using an extractor tool.
Continued on following page ...
