EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.47

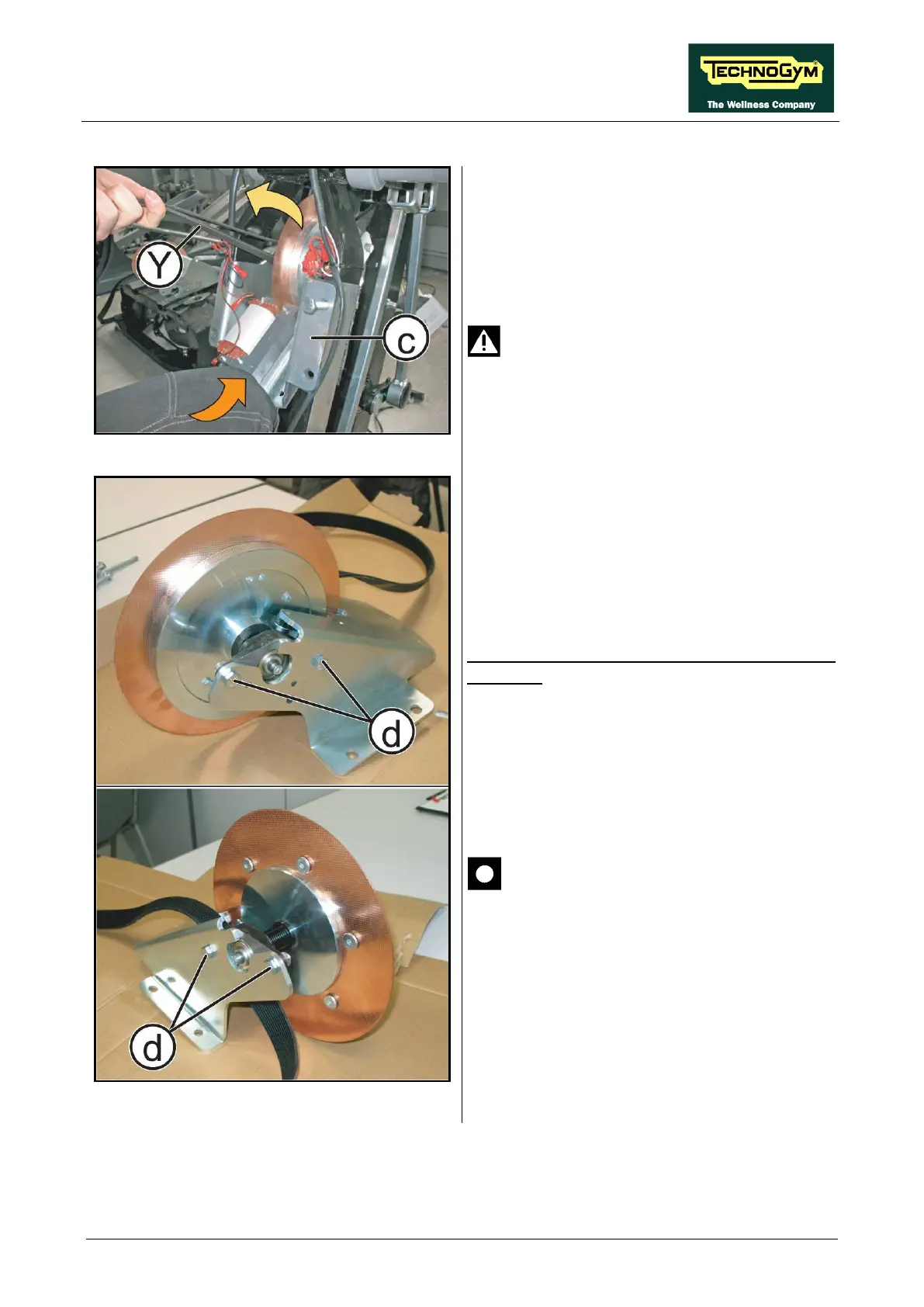

Figure 7.17-3
4. Remove the complete flywheel group (c)
from the machine supporting the weight of
the group with your knee and pulling from
the belt (Y) and bring it on a work bench.
CAUTION: Handle it with caution,
be
cause the copper disk may bend
easily.
Figure 7.17-4
With the flywheel group on a work bench, on
both side:
5. Back off the 4 screws (d)
wrench and blocking the counter-
opposite side, using a wrench of equal size.
6. Remove the flywheel from its support plate.
CAUTION: During the reassembly
blocking the screws (d) using a torque
wrench set for 22Nm.
Continued on following page ...
