EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.58

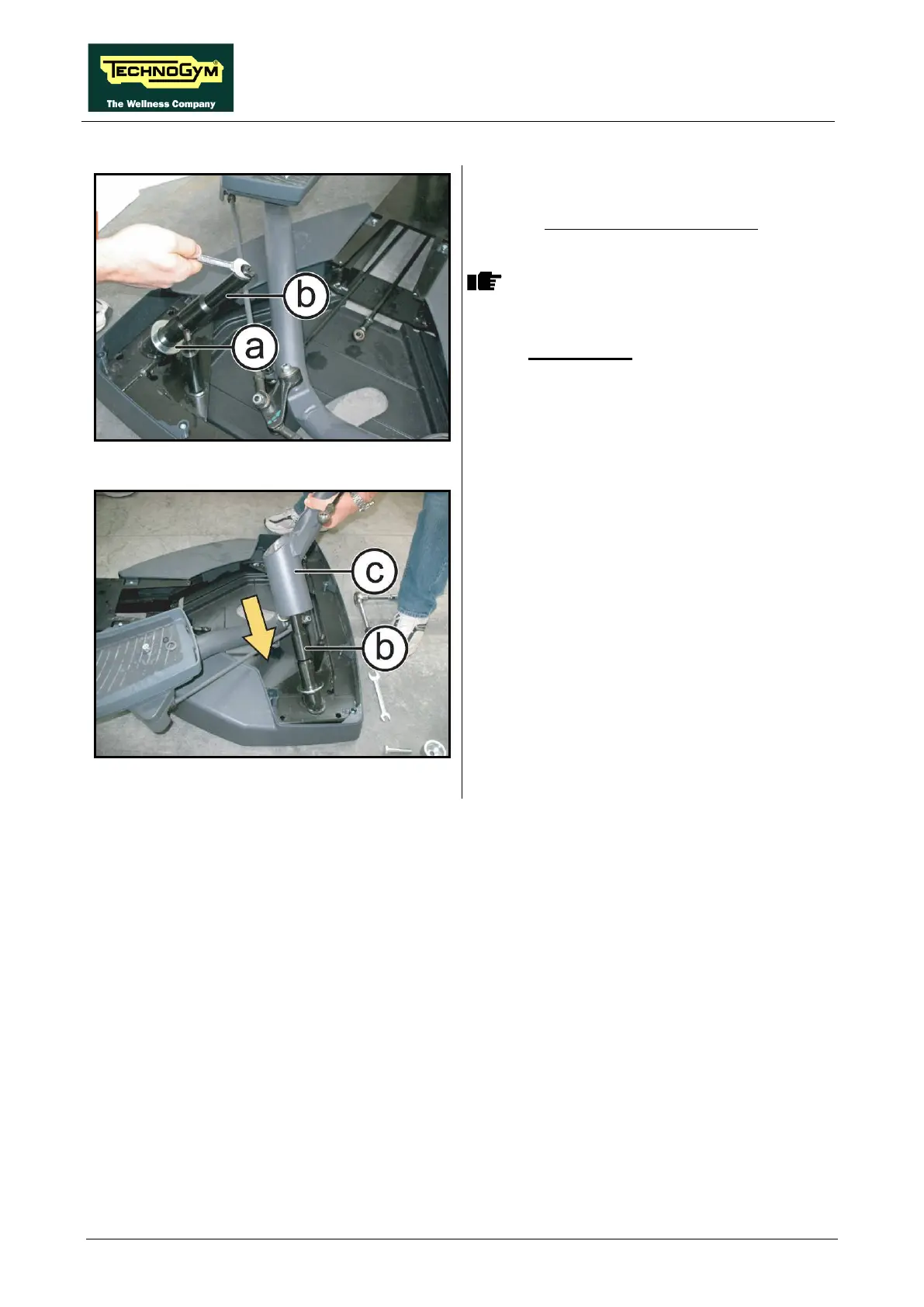

Figure 7.20-6
To reassemble the lever, carry out the above
steps in reverse order,
whereas the notes following.
To easily reassembly the lever,
avoiding damaging
bearings use the special pin
0T020901AA as detailed below.
1. Insert the washer (a).
2. Screw the pin (b)
on the frame pin, using a
17mm wrench, as shown in the figure at the
side.
Figure 7.20-7
3. Insert the lever (c) in the pin (b)
, moving
smoothly and paying particular attention to
the internal bearings of lever.
4.
Remove the service pin and lock the lever
with its screw.
