Figure 7.21-4
6. Insert the screw (e)
the pin from the opposite side. Use a pin tool
to push against the screw to remove the
central pin from the front lower lever (f)
shown in the figure at the side.
Figure 7.21-5
7. Remove the lower balancers (f).

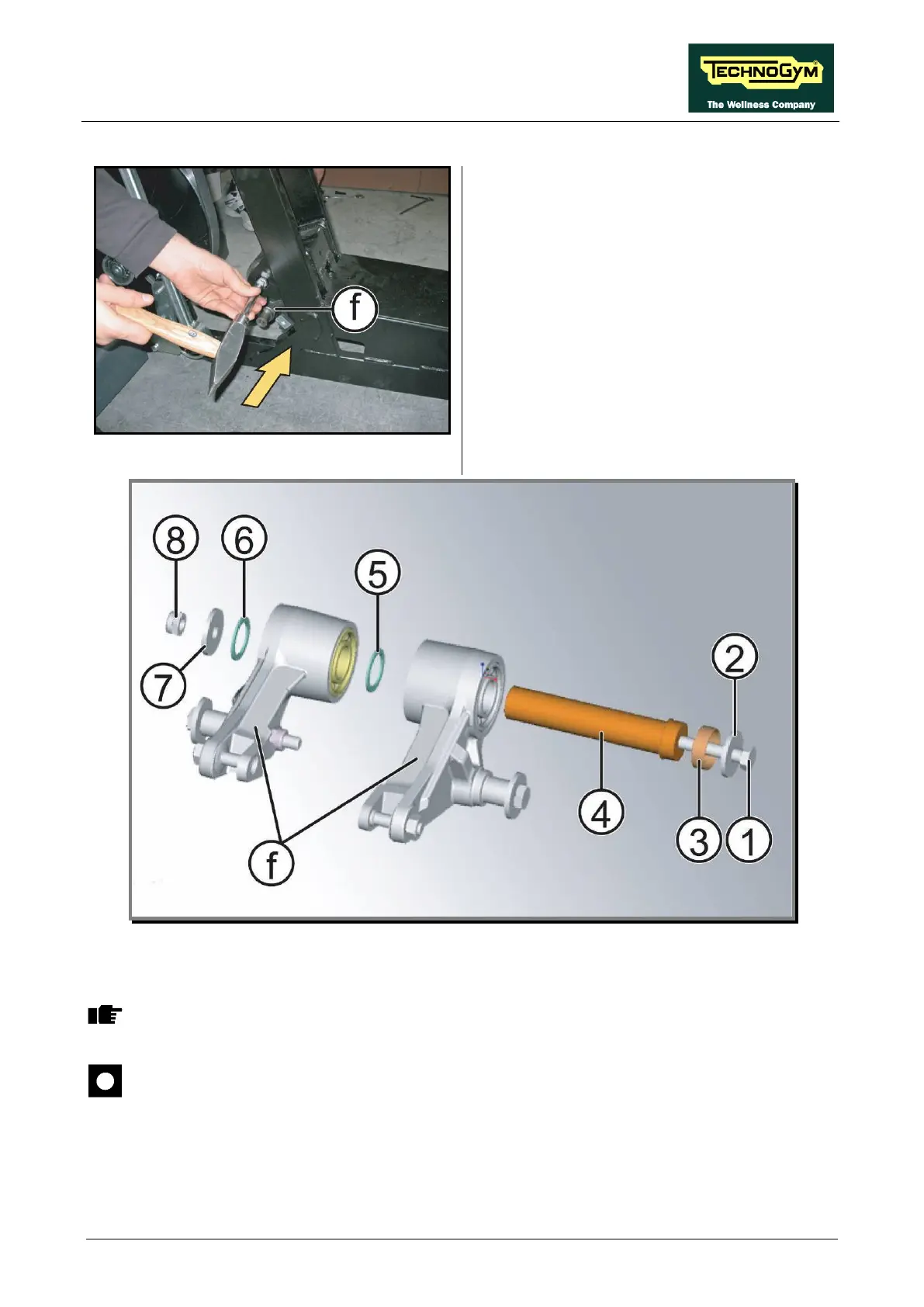

During the reassembly respect parts order as detailed in the figure.
CAUTION: Put a yellow Loctite between particular (3) and (4).
To reassemble the lower balancers,
carry out the above steps in reverse order.
